MS110-SSHZE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )2D

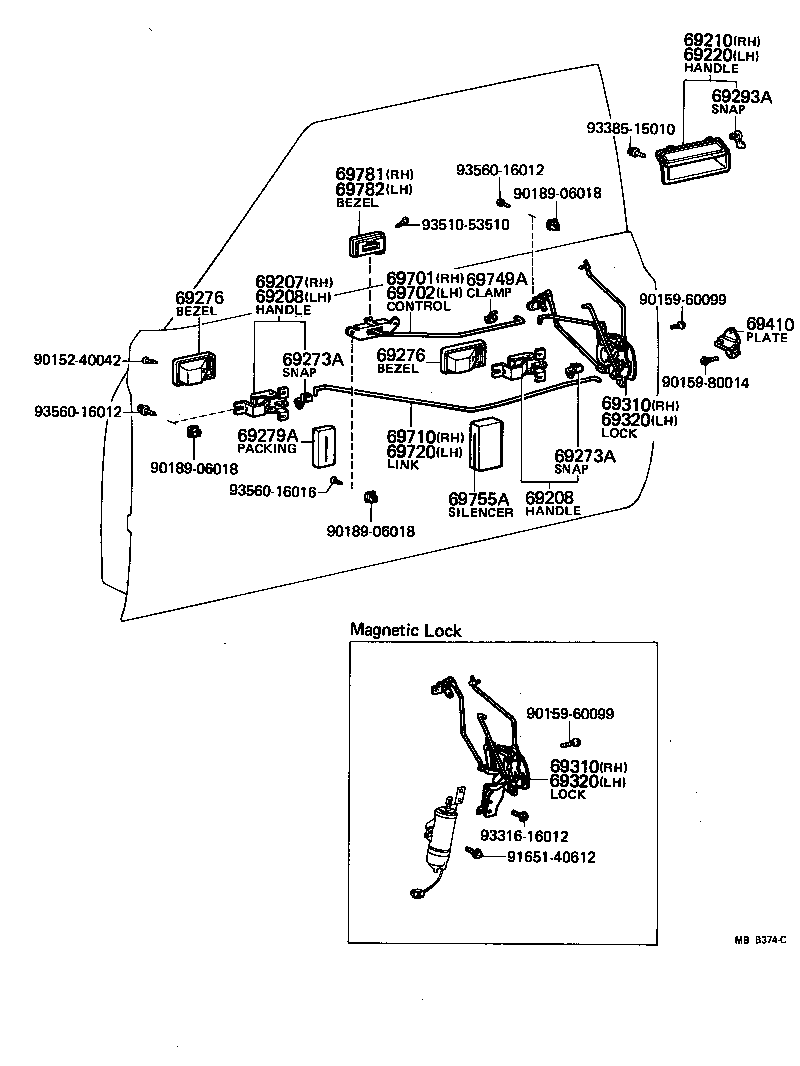

Click highlighted areas on diagram

diagram 69207 69208 69208 69210 69220 69273A 69273A 69276 69276 69279A 69293A 69310 69310 69320 69320 69410 69701 69702 69710 69720 69749A 69755A 69781 69782 9015240042 9015960099 9015960099 9015980014 9018906018 9018906018 9018906018 9165140612 9331616012 9338515010 9351053510 9356016012 9356016012 9356016016
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-30010

GS11#,LS11#,MS11#,RS110

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30010

GS110,MS110,112..2D

 2
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-30010

GS110,MS110,112..2D

 2
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-30090

LS110,MS110,112..HT

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-30090

GS110,LS110,111,MS110,112..HT

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69288-12010

GS110,MS110,112..2D

LH

 2
69279-12020

GS11#,LS11#,MS11#,RS110

RH

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69288-12010

GS110,MS110,112..2D

LH

 2
69279-12020

GS11#,LS11#,MS11#,RS110

RH

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-30030

GS110,MS110,112..2D

 3
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-30030

GS110,MS110,112..2D

 3
69279A - PACKING, DOOR INSIDE HANDLE(FOR FRONT DOOR)
69269-30010

GS110,MS110,112..2D

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69310-30331

MS110,112..2D

 1
69310-30330

MS110,112..2D

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-30331

MS110,112..2D

 1
69310-30330

MS110,112..2D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-30330

MS110,112..2D

 1
69320-30331

MS110,112..2D

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-30330

MS110,112..2D

 1
69320-30331

MS110,112..2D

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12040

GS11#,LS11#,MS11#,RS110

 2
69701 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, RH
69750-3003002

MS110,112..2D

DARK WINE,RED/MAROON,TRIM3#

 1
69750-3003004

MS110,112..2D

BLUE,BLUE,TRIM8#

 1
69750-3003005

MS110,112..2D

GREIGE,BEIGE,TRIM4#

 1
69702 - CONTROL SUB-ASSY, DOOR LOCK REMOTE, LH
69760-3003005

MS110,112..2D

GREIGE,BEIGE,TRIM4#

 1
69760-3003002

MS110,112..2D

DARK WINE,RED/MAROON,TRIM3#

 1
69760-3003004

MS110,112..2D

BLUE,BLUE,TRIM8#

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-30070

GS110,MS110,112..2D

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-30080

GS110,MS110,112..2D

 1
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-12010

GS110,LS11#,MS11#,RS110

 2
69755A - SILENCER, FRONT DOOR LOCK LINK
69759-30021

GS11#,LS11#,MS11#,RS110

 2
69781 - BEZEL, DOOR LOCKING, RH
69781-3002104

MS110,112..2D

BLUE,BLUE,TRIM8#

 1
69781-3002115

MS110,112..2D

GREIGE,BEIGE,TRIM4#

 1
69781-3002102

MS110,112..2D

DARK WINE,RED/MAROON,TRIM3#

 1
69782 - BEZEL, DOOR LOCKING, LH
69782-3002102

MS110,112..2D

DARK WINE,RED/MAROON,TRIM3#

 1
69782-3002104

MS110,112..2D

BLUE,BLUE,TRIM8#

 1
69782-3002115

MS110,112..2D

GREIGE,BEIGE,TRIM4#

 1
Common parts
90152-40042
90159-60099
90159-80014
90189-06018
91651-40612
93316-16012
93385-15010
93510-53510
93560-16012
93560-16016
