MS110-SSHGT (1980)

Toyota Crown

Production Oct 1980 - Jul 1983
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8010- )TBO

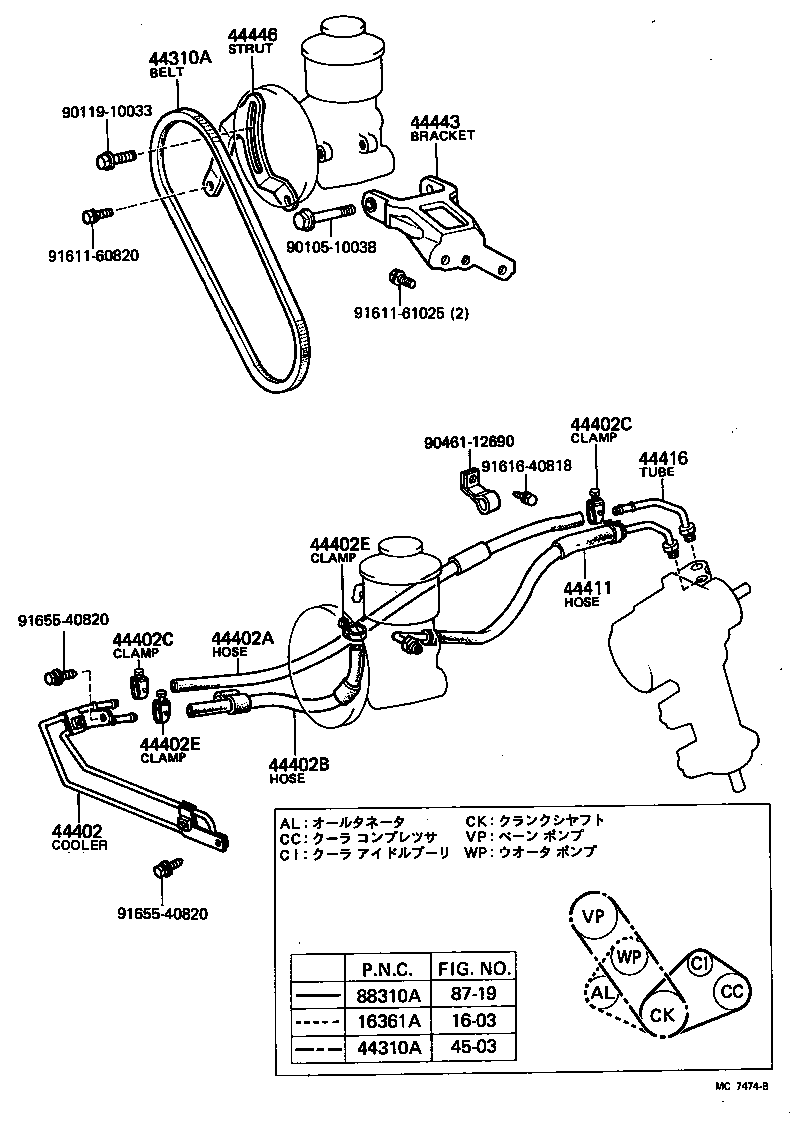

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44443 44446 4503 8719 88310A 9010510038 9011910033 9046112690 9161160820 9161161025 9161640818 9165540820 9165540820
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

MEU,MJ,5M#,MTEU,MU..MS11#

L=925

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02107

MS110,112..TBO,TWC

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02107

MS110,112..TBO,TWC

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-30080

MS110..TBO

 1
44402-30081

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18065

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
90445-18065

GS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
90447-29002

MS110..TBO

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90447-18007

MS110..TBO

 1
90447-18007

MS11#..BTP,DLX,ROY,SAL,SDX,SPE

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
44411 - HOSE, PRESSURE FEED
44411-30170

MS110..TBO

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-30030

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
44443 - BRACKET, PUMP
44443-30070

MS110..TBO

 1
44446 - STRUT, ADJUSTING
44446-30060

MS110..TBO

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00940

MS11#..CBR,EFI,TBO

 1
99322-00950

MS110,112..TBO,TWC

 1
Common parts
90105-10038
90119-10033
90461-12690
91611-60820
91611-61025
91616-40818
91655-40820
Linked diagrams
1603
4503
8719
