MS110-SENGE (1979)
Toyota Crown

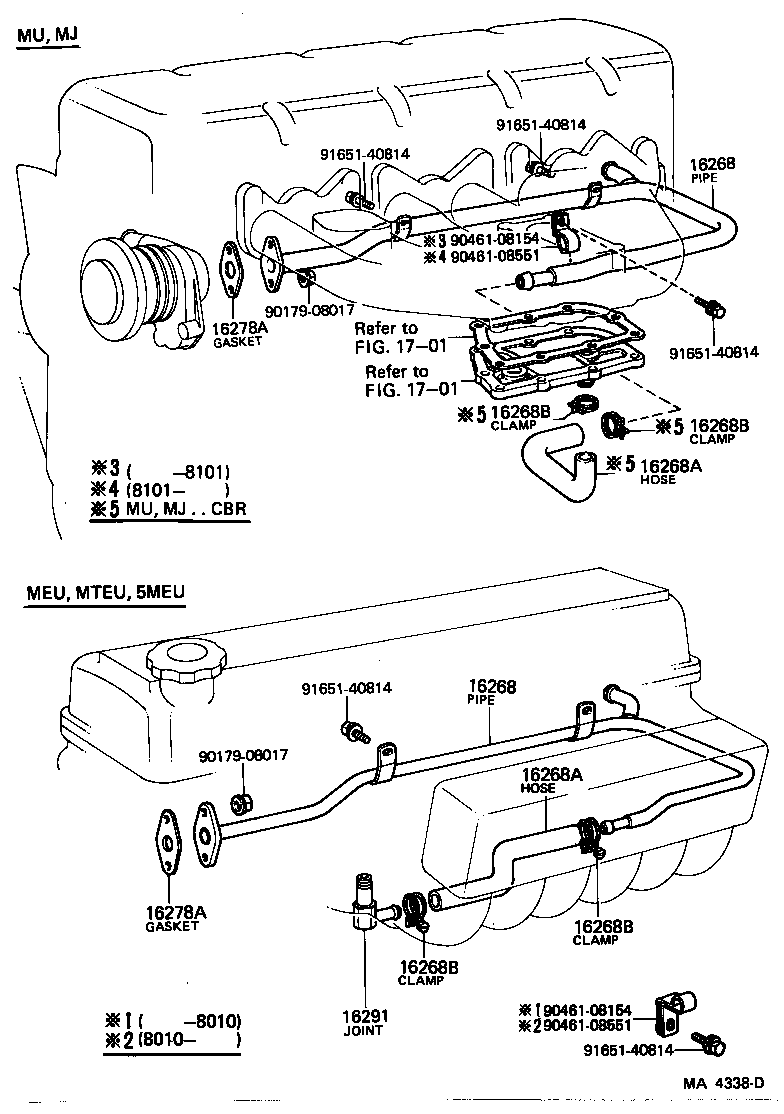

ILLUST NO. 2 OF 2(7909- )MEU,MJ,5MEU,MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41120 |
MEU,5MEU..MS110,112 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-41120 |
MEU,5MEU..MS110,112 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 16268A - HOSE(FOR WATER BY-PASS PIPE) | ||||
| 16267-45020 |
MEU,5MEU,MTEU..MS110,112 |
1 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO |
2 | ||
| 16268B - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE) | ||||
| 96112-10220 |
MEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO |
2 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-45010 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 90404-53034 |
MEU,MTEU..MS110..ATM |
1 | ||
| Common parts | ||||
| 90179-08017 | ||||
| 90461-08154 | ||||
| 90461-08551 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 1 OF 2(7909- )MEU,MJ,5MEU,MTEU,MU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-45030 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
MEU,MJ,5MEU,MTEU,MU..MS11# *WAX 88-100 |
1 | ||
| 90916-03034 |
MEU,MJ,5MEU,MTEU,MU..MS11# *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
MEU,MJ,5MEU,MTEU,MU..MS11# *WAX 82-95 |
1 | ||
| 90916-03036 |
MEU,MJ,5MEU,MTEU,MU..MS11# COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
MEU,MJ,5M#,MTEU,MU..MS11# 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
MEU,MJ,5M#,MTEU,MU..MS11# L=925 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
MEU,MJ,5M#,MTEU,MU..MS11# L=925 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41240 |
MEU,5MEU,MTEU..MS110,112..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
MEU,5M#,MTEU,MU..MS110,112 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
MEU,5M#,MTEU,MU..MS110,112 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
MEU,5M#,MTEU,MU..MS110,112 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-41130 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-41130 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-41130 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41030 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41030 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41030 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41080 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
MEU,MJ,5MEU,MU..MS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
MEU,MJ,5MEU,MU..MS11# RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
MEU,MJ,5MEU,MU..MS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
MEU,MJ,5MEU,MU..MS11# RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
MEU,MJ,5MEU,MU..MS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
MEU,MJ,5MEU,MU..MS11# RADIATOR SIDE,ID=43 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41060 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
MEU,MJ,5MEU,MU..MS11# ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
MEU,MJ,5MEU,MU..MS11# ID=46 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41050 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41050 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-41010 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02078 |
MS110,112..EFI,LPG |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00940 |
MS11#..CBR,EFI,TBO |
1 | ||
| Common parts | ||||
| 16581-41010 | ||||
| 90119-08051 | ||||
| 90179-06070 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90179-08167 | ||||
| 90201-09304 | ||||
| 90468-06013 | ||||
| 91651-40816 | ||||
| 91655-40820 | ||||
| 91656-40820 | ||||
| 93560-55014 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||
(7909- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-45030 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
MEU,MJ,5MEU,MTEU,MU..MS11# *WAX 88-100 |
1 | ||
| 90916-03034 |
MEU,MJ,5MEU,MTEU,MU..MS11# *WAX 82-95,*(F) |
1 | ||
| 90916-03037 |
MEU,MJ,5MEU,MTEU,MU..MS11# *WAX 82-95 |
1 | ||
| 90916-03036 |
MEU,MJ,5MEU,MTEU,MU..MS11# COLD SPEC,*WAX 88-100,*(F) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38010 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16361 - FAN | ||||
| 16361-41090 |
MEU,MJ,5M#,MTEU,MU..MS11# 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
MEU,MJ,5M#,MTEU,MU..MS11# L=925 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02076 |
MEU,MJ,5M#,MTEU,MU..MS11# L=925 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-45011 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-41240 |
MEU,5MEU,MTEU..MS110,112..ATM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
MEU,5M#,MTEU,MU..MS110,112 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
MEU,5M#,MTEU,MU..MS110,112 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
MEU,5M#,MTEU,MU..MS110,112 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-41130 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
MEU,MJ,5M#,MTEU,MU..MS11# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-41030 |
MEU,MJ,5MEU,MU..MS11# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-41080 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
MEU,MJ,5MEU,MU..MS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
MEU,MJ,5MEU,MU..MS11# RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
MEU,MJ,5MEU,MU..MS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
MEU,MJ,5MEU,MU..MS11# RADIATOR SIDE,ID=43 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
MEU,MJ,5MEU,MU..MS11# WATER OUTLET SIDE,ID=37 |
1 | ||
| 96111-10430 |
MEU,MJ,5MEU,MU..MS11# RADIATOR SIDE,ID=43 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-41060 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
MEU,MJ,5MEU,MU..MS11# ID=46 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
MEU,MJ,5MEU,MU..MS11# ID=46 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-41050 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-41050 |
MEU,MJ,5M#,MTEU,MU..MS11# |
1 | ||
| 16715 - BRACKET, FAN SHROUD | ||||
| 16715-41010 |
MEU,MJ,5MEU,MTEU,MU..MS11# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02078 |
MS110,112..EFI,LPG |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00940 |
MS11#..CBR,EFI,TBO |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 90464-00296 | ||||
| 90468-06002 | ||||
| 90929-01003 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91655-40820 | ||||
| 91659-41222 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8716 | ||||
| 8719 | ||||
