MS110-SENFS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

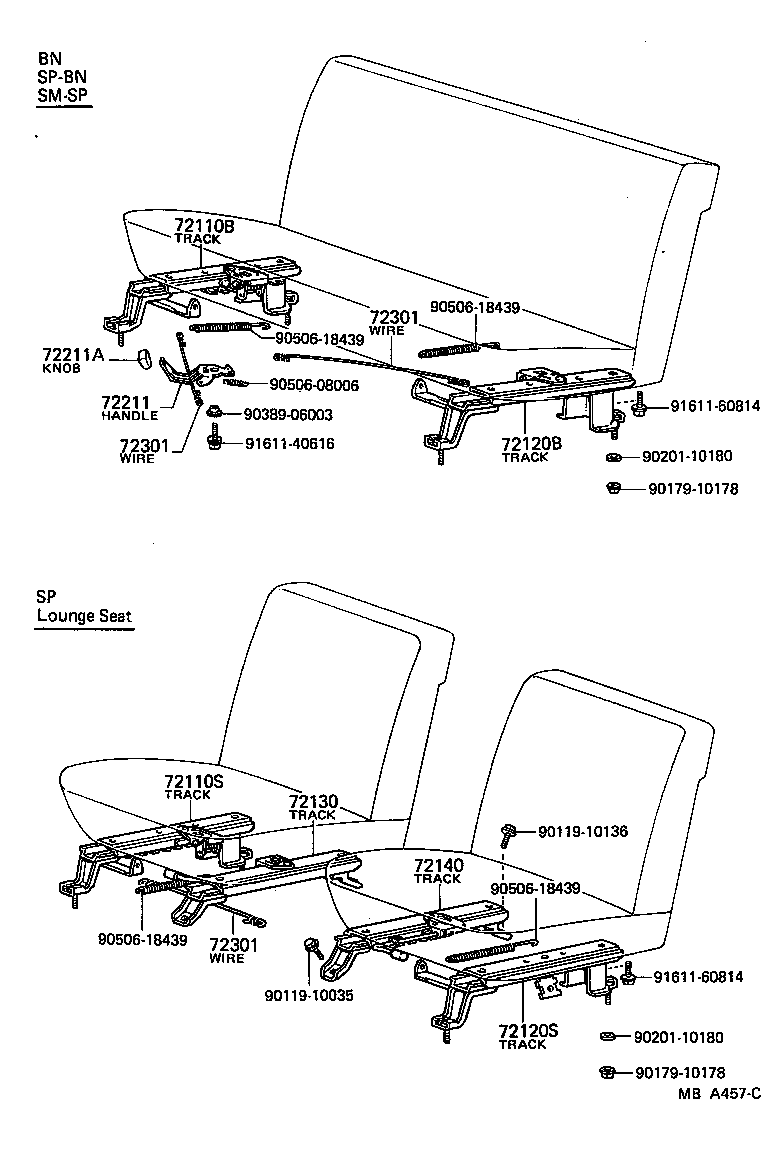

Click highlighted areas on diagram

diagram 72110B 72110S 72120B 72120S 72130 72140 72211 72211A 72301 72301 72301 9011910035 9011910136 9017910178 9017910178 9020110180 9020110180 9038906003 9050608006 9050618439 9050618439 9050618439 9050618439 9161140616 9161160814 9161160814
Part # Description Qty Price
72110B - TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT)
72110-30171

MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(HT,SED)..(3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 1
72110-30170

MS112..SED..4HC..ROY;LS110,MS110,112,RS110..(HT,SED)..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 1
72120B - TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT)
72120-30200

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 1
72120-30201

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-30100

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

FR,W/BN,SP-BN OR SM-SP

 1
72211A - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-22010

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

FR,W/BN,SP-BN OR SM-SP

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30080

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30080

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30080

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 2
Common parts
90119-10035
90119-10136
90179-10178
90201-10180
90389-06003
90506-08006
90506-18439
91611-40616
91611-60814

(7909- )

Click highlighted areas on diagram

diagram 71305 72031 72110S 72130 72301 9011910035 9011910136 9017910178 9020110180 9050618439 9050618439 9056011012 9161160814 9161160814 9165161025 9324954006
Part # Description Qty Price
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-30080

MS112..SED..4HC..ROY;LS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)

W/BN,SP-BN OR SM-SP

 2
Common parts
90119-10035
90119-10136
90179-10178
90201-10180
90506-18439
90560-11012
91611-60814
91651-61025
93249-54006

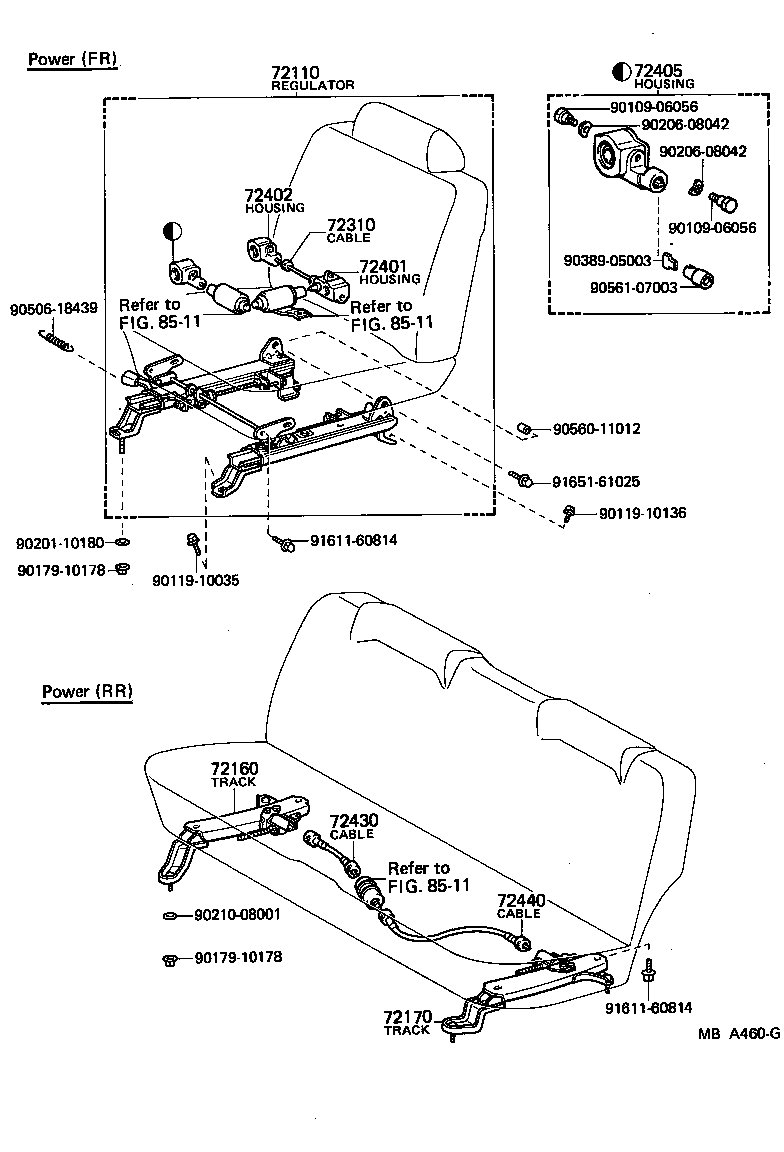

(7909- )

Click highlighted areas on diagram

diagram 72110 72160 72170 72310 72401 72402 72405 72430 72440 8511 8511 8511 9010906056 9010906056 9011910035 9011910136 9017910178 9017910178 9020110180 9020608042 9020608042 9021008001 9038905003 9050618439 9056011012 9056107003 9161160814 9161160814 9165161025
Part # Description Qty Price
Common parts
90109-06056
90119-10035
90119-10136
90179-10178
90201-10180
90206-08042
90210-08001
90389-05003
90506-18439
90560-11012
90561-07003
91611-60814
91651-61025
Linked diagrams
8511
