MS110-SENFE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )4FC,4HC

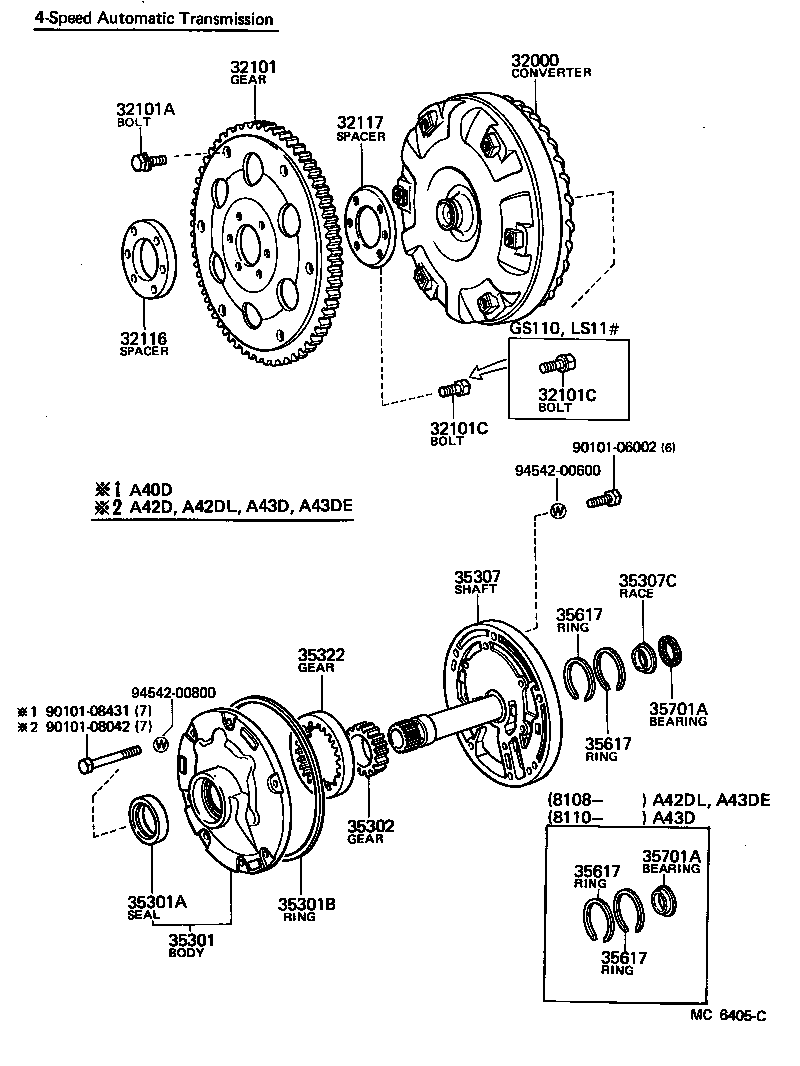

Click highlighted areas on diagram

diagram 32000 32101 32101A 32101C 32101C 32116 32117 35301 35301A 35301B 35302 35307 35307C 35322 35617 35617 35617 35617 35701A 35701A 9010106002 9010108042 9010108431 9454200600 9454200800
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-30090

LS11#,MS110..ATM..(DSL,EFI)

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-30040

MS110,112..ATM

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
91611-60812

GS110,LS11#,MS110,112..ATM

*8−1.25PX12−7

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10037

MS110,112..ATM

*10−1.25PX18−12

 6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90109-10037

MS110,112..ATM

*10−1.25PX18−12

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-30011

MS110,112..ATM

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-30011

MS110,112..ATM

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-30030

LS11#,MS110,112..4FC,4HC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38129

GS110,LS11#,MS110,112..ATM

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

GS110,LS11#,MS110,112..ATM

 1
35302 - GEAR SUB-ASSY, FRONT OIL PUMP DRIVE
35321-22010

LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)

 1
35307 - SHAFT SUB-ASSY, STATOR
35370-30010

LS11#,MS110..ATM..(DSL,EFI)

 1
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-22010

LS11#,MS110,112..ATM

厚さ=4.3

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22010

LS11#,MS110,112..ATM..(CBR,DSL,EFI,LPG,TBO,TDE)

厚さ=15.286−15.235

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

LS11#,MS110,112..4FC,4HC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

LS11#,MS110,112..4FC,4HC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

LS11#,MS110,112..4FC,4HC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-22020

LS11#,MS110,112..4FC,4HC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

LS11#,MS110,112..ATM

 1
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-23012

LS11#,MS110,112..ATM

 1
Common parts
90101-06002
90101-08042
90101-08431
94542-00600
94542-00800
