MS110-SENDS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MJ,MU..CBR

Click highlighted areas on diagram

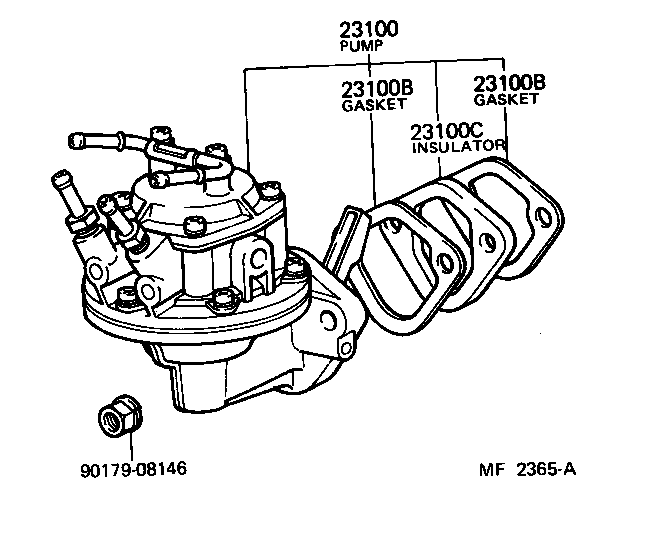

diagram 23100 23100B 23100B 23100C 9017908146
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-49215

MJ,MU..MS110,117..CBR

 1
23100B - GASKET, FUEL PUMP
90923-05004

MJ,MU..MS110,117..CBR

 2
23100B - GASKET, FUEL PUMP
90923-05004

MJ,MU..MS110,117..CBR

 2
23100C - INSULATOR, FUEL PUMP
90923-06002

MJ,MU..MS110,117..CBR

 1
Common parts
90179-08146
