MS110-SENBS (1979)
Toyota Crown
(7909-8010)3H

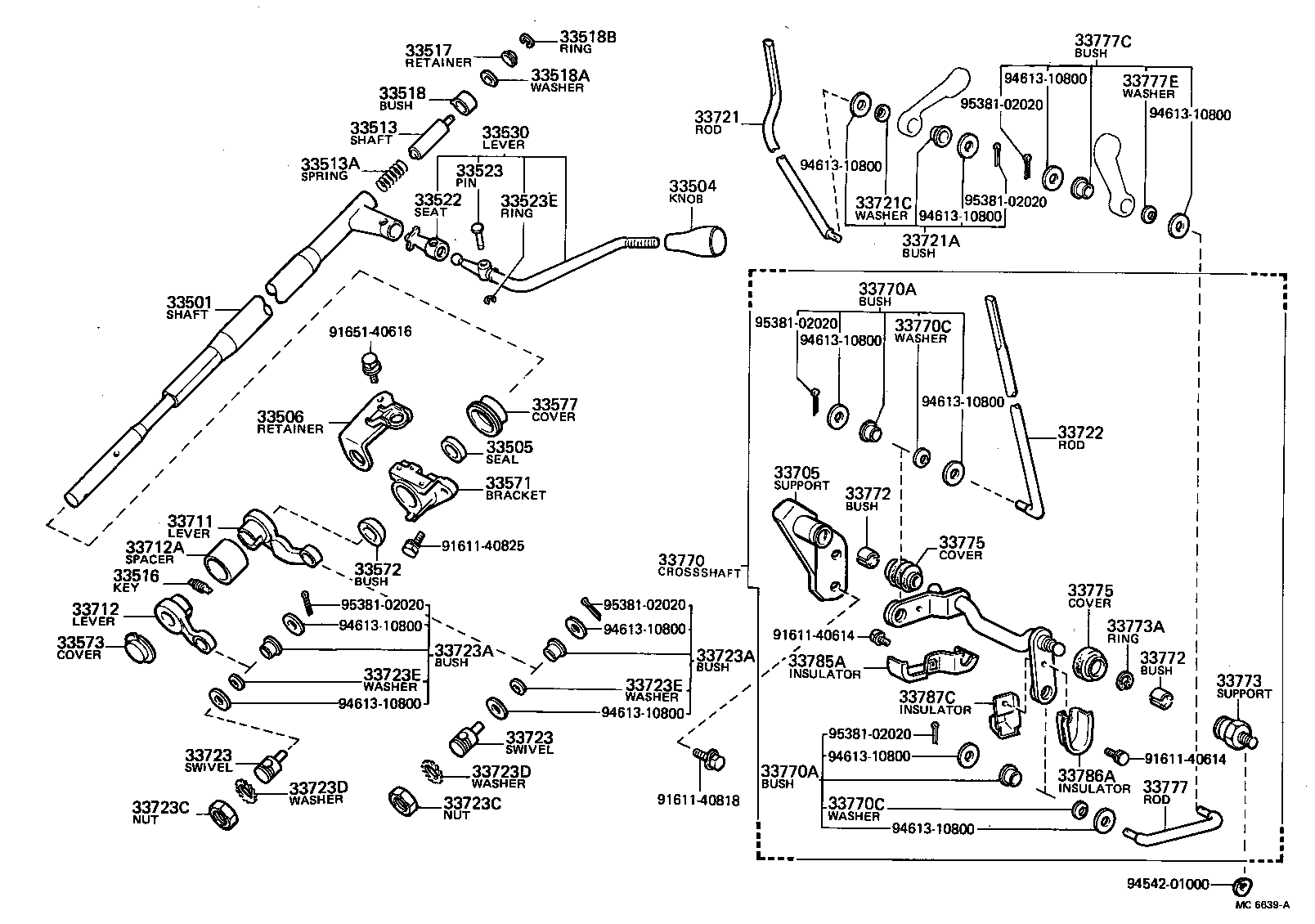

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30390 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF | ||||
| 33575-30270 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30080 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33513-30090 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-39075 |
GS11#,LS110,117,MS110,117,RS110..3H,4H |
1 | ||
| 33541-39085 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-30230 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33577 - COVER, CONTROL SHAFT HOLE | ||||
| 33577-30070 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-30120 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33711-30100 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33712 - LEVER, CONTROL SHAFT | ||||
| 33527-30070 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-30280 |
MS110..3HC |
1 | ||
| 33770-30270 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-30040 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| Common parts | ||||
| 91611-40614 | ||||
| 91611-40818 | ||||
| 91611-40825 | ||||
| 91651-40616 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
(7909-8010)MS110,117,RS110..4H ; (8010- )3H,4H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30390 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30080 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33513-30090 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-39075 |
GS11#,LS110,117,MS110,117,RS110..3H,4H |
1 | ||
| 33541-39085 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-30230 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33577 - COVER, CONTROL SHAFT HOLE | ||||
| 33577-30070 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-30120 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33711-30100 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17048 |
GS110,LS110,MS110,112..3HC,4HC 厚さ=1.0,T=1.0 |
1 | ||
| 90201-17044 |
GS110,LS110,MS110,112..3HC,4HC 厚さ=1.2,T=1.2 |
2 | ||
| 33712 - LEVER, CONTROL SHAFT | ||||
| 33527-30070 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33701-30020 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT) | ||||
| 33702-30120 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-30280 |
MS110..3HC |
1 | ||
| 33770-30270 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| Common parts | ||||
| 90179-08011 | ||||
| 91611-40814 | ||||
| 91611-40818 | ||||
| 91611-40825 | ||||
| 93319-14008 | ||||
| 94542-01000 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
(7909- )3HC,4HC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33281 - PIN, LEVER LOCK (FOR COLUMN SHIFT) | ||||
| 33281-30020 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT) | ||||
| 33501-30390 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 33501A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90386-10060 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 33504-30110 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33505-30010 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33506 - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIF | ||||
| 33575-30270 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER | ||||
| 33513-30080 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33513-30090 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT) | ||||
| 90501-14784 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33517 - RETAINER, CONTROL SHAFT UPPER SPRING | ||||
| 33517-30010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518 - BUSH, UPPER CONTROL SHAFT PIECE | ||||
| 33518-30060 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 33515-30010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH) | ||||
| 90523-06019 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT) | ||||
| 33522-30030 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT) | ||||
| 90249-07003 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33523E - RING, E (FOR SHIFT LEVER PIN) | ||||
| 96160-00500 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT) | ||||
| 33541-39075 |
GS11#,LS110,117,MS110,117,RS110..3H,4H |
1 | ||
| 33541-39085 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT) | ||||
| 33571-30230 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT) | ||||
| 33572-30020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33577 - COVER, CONTROL SHAFT HOLE | ||||
| 33577-30070 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
1 | ||
| 33705 - SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE) | ||||
| 33705-30120 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT) | ||||
| 33711-30100 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17048 |
GS110,LS110,MS110,112..3HC,4HC 厚さ=1.0,T=1.0 |
1 | ||
| 90201-17044 |
GS110,LS110,MS110,112..3HC,4HC 厚さ=1.2,T=1.2 |
2 | ||
| 33711C - WASHER, PLATE (FOR CONTROL SHAFT LEVER) | ||||
| 90201-17048 |
GS110,LS110,MS110,112..3HC,4HC 厚さ=1.0,T=1.0 |
1 | ||
| 90201-17044 |
GS110,LS110,MS110,112..3HC,4HC 厚さ=1.2,T=1.2 |
2 | ||
| 33711D - SPRING, COMPRESSION (FOR CONTROL SHAFT LEVER) | ||||
| 90501-10311 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33716 - PIN, CONTROL SHAFT LEVER STOPPER | ||||
| 33716-30020 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT) | ||||
| 33723-20010 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723A - BUSH (FOR COLUMN SHIFT CONTROL SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723C - NUT, HEXAGON (FOR CONTROL ROD SETTING) | ||||
| 90170-18159 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723D - WASHER, TOOTHED (FOR CONTROL ROD SETTING) | ||||
| 90205-18012 |
LS11#,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33723E - WASHER, WAVE (FOR COLUMN SHIFT CONTROL ROD SETTING) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT) | ||||
| 33770-30280 |
MS110..3HC |
1 | ||
| 33770-30270 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770A - BUSH (FOR CROSS SHAFT) | ||||
| 90999-99064 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33770C - WASHER, WAVE (FOR CROSS SHAFT) | ||||
| 90206-08016 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
4 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT) | ||||
| 33772-20010 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
8 | ||
| 33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT) | ||||
| 33773-20020 |
LS110,MS110,112,RS110..3H,3HC,4HC |
1 | ||
| 33773A - RING, HOLE SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT) | ||||
| 33775-20040 |
GS110,LS110,MS110,112..3HC,4HC FRAME SIDE |
2 | ||
| 33775-20020 |
GS11#,LS110,117,MS11#,RS110..3H,3HC,4H,4HC MISSION SIDE |
2 | ||
| 33775-20040 |
GS11#,MS110,117,RS110..3H,4H FRAME SIDE |
2 | ||
| 33785A - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1(FOR COLUMN SHIF | ||||
| 33785-30040 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 35568 - ROD, SHIFTING, 2ND | ||||
| 33742-30140 |
MS110..3HC |
1 | ||
| 35568A - BUSH (FOR SHIFTING ROD, 2ND) | ||||
| 90999-99017 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 35568B - GROMMET (FOR SHIFTING ROD, 2ND) | ||||
| 90480-17177 |
GS110,LS110,MS110,112..3HC,4HC |
1 | ||
| 35569 - ROD, TRANSMISSION CONTROL, 1ST (FOR COLUMN SHIFT) | ||||
| 33741-30210 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35951 - INDICATOR, CONTROL POSITION | ||||
| 35951-30100 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35951 - INDICATOR, CONTROL POSITION | ||||
| 35951-30100 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35951C - RING, SHAFT SNAP (FOR CONTROL POSITION INDICATOR) | ||||
| 90520-41097 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35957 - PULLEY, POSITION INDICATOR DRIVE | ||||
| 35957-30060 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35958 - CORD, POSITION INDICATOR DRIVE | ||||
| 35958-30070 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35966 - RETAINER, CONTROL POSITION INDICATOR | ||||
| 35966-30020 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35969 - ADJUST, DRIVE CORD | ||||
| 35969-20020 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35970 - HOUSING ASSY, POSITION INDICATOR (FOR COLUMN SHIFT) | ||||
| 35970-30130 |
LS110,MS110,112..3HC,4HC |
1 | ||
| 35988 - RETAINER, DRIVE CORD | ||||
| 35988-30012 |
LS110,MS110,112..3HC,4HC |
1 | ||
| Common parts | ||||
| 91611-40614 | ||||
| 91611-40818 | ||||
| 91611-40825 | ||||
| 91651-40616 | ||||
| 93219-14008 | ||||
| 93315-14012 | ||||
| 93319-13006 | ||||
| 93319-14008 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94512-00800 | ||||
| 94542-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95381-02020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
