MS110-SENBP (1979)

Toyota Crown

Production Dec 1979 - Jul 1983
Engine MU
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7912- )MU..LPG

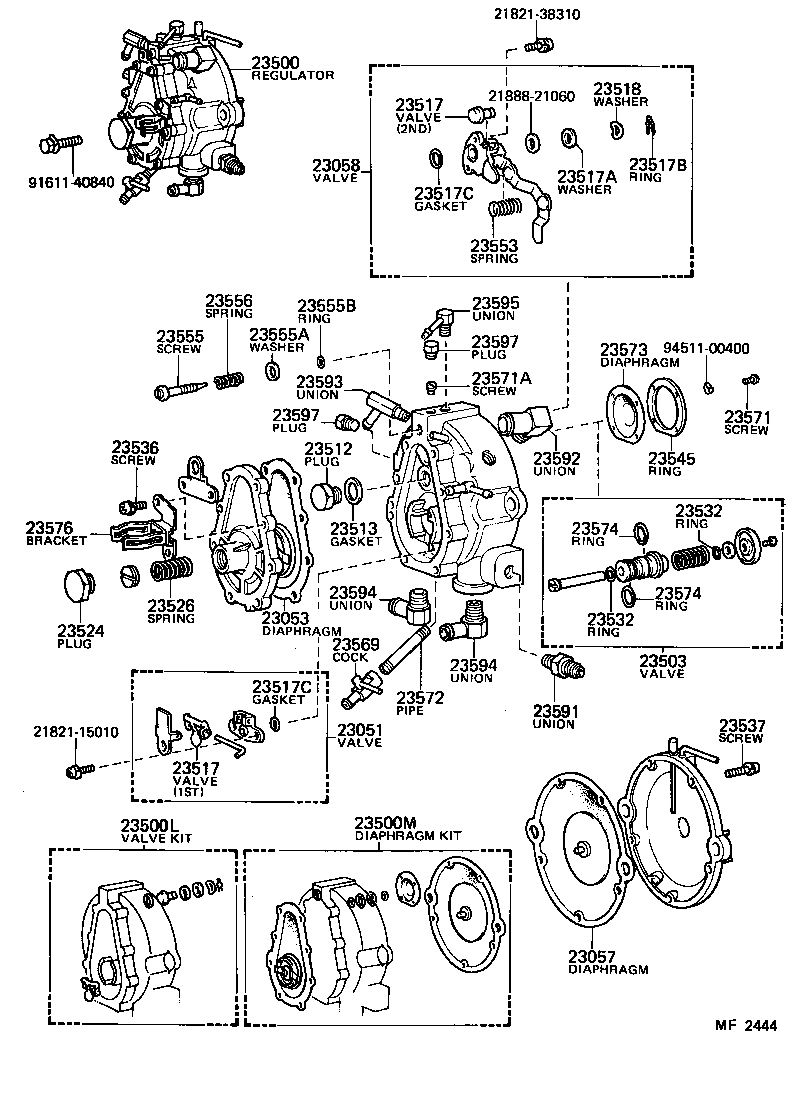

Click highlighted areas on diagram

diagram 2182115010 2182138310 2188821060 23051 23053 23057 23058 23500 23500L 23500M 23503 23512 23513 23517 23517 23517A 23517B 23517C 23517C 23518 23524 23526 23532 23532 23536 23537 23545 23553 23555 23555A 23555B 23556 23569 23571 23571A 23572 23573 23574 23574 23576 23591 23592 23593 23594 23594 23595 23597 23597 9161140840 9451100400
Part # Description Qty Price
23051 - VALVE SUB-ASSY, 1ST
23051-44040

MU..MS110..LPG

 1
23053 - DIAPHRAGM SUB-ASSY, 1ST
23527-44040

MU..MS110..LPG

 1
23057 - DIAPHRAGM SUB-ASSY, 2ND REGULATOR
23562-44040

MU..MS110..LPG

 1
23058 - VALVE SUB-ASSY, 2ND
23058-44041

MU..MS110..LPG

 1
23058-44040

MU..MS110..LPG

 1
23500 - REGULATOR ASSY, LPG(CNG)
23500-41040

MU..MS110..LPG

 1
23500L - VALVE KIT, LPG REGULATOR
04236-44010

MU..MS110..LPG

 1
23500M - DIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
04235-44030

MU..MS110..LPG

 1
23503 - VALVE SUB-ASSY
23503-44040

MU..MS110..LPG

 1
23512 - PLUG, WATER CORE
23512-40010

MU..MS110..LPG

 1
23513 - GASKET, WATER CORE
23513-40010

MU..MS110..LPG

 1
23517 - VALVE, ELASTIC FACE
23517-40013

MU..MS110..LPG

2ND

 1
23517-44040

MU..MS110..LPG

1ST

 1
23517 - VALVE, ELASTIC FACE
23517-40013

MU..MS110..LPG

2ND

 1
23517-44040

MU..MS110..LPG

1ST

 1
23517A - WASHER(FOR ELASTIC FACE VALVE SET)
21535-10010

MU..MS110..LPG

 1
23517B - RING, SNAP(FOR ELASTIC FACE VALVE SET)
21792-69210

MU..MS110..LPG

 1
23517C - GASKET(FOR ELASTIC FACE VALVE)
23532-44020

MU..MS110..LPG

ID=7.8

 2
23517C - GASKET(FOR ELASTIC FACE VALVE)
23532-44020

MU..MS110..LPG

ID=7.8

 2
23518 - WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23518-40010

MU..MS110..LPG

 1
23524 - PLUG, 1ST REGULATOR COVER
23524-40010

MU..MS110..LPG

 1
23526 - SPRING, 1ST REGULATOR
23526-40010

MU..MS110..LPG

 1
23532 - RING, O, NO.2(FOR BULB)
23532-40010

MU..MS110..LPG

 2
23532 - RING, O, NO.2(FOR BULB)
23532-40010

MU..MS110..LPG

 2
23536 - SCREW(FOR 1ST REGULATOR COVER SET)
23537-44020

MU..MS110..LPG

L=22

 8
23537 - SCREW(FOR 2ND REGULATOR COVER SET)
21821-31140

MU..MS110..LPG

L=20

 5
23545 - RING, VACUUM LOCK DIAPHRAGM
23545-44020

MU..MS110..LPG

 1
23553 - SPRING, 2ND REGULATOR
23553-44040

MU..MS110..LPG

 1
23555 - SCREW, IDLE ADJUST
23555-44041

MU..MS110..LPG

 1
23555A - WASHER, IDLE ADJUST SCREW
21885-26040

MU..MS110..LPG

 1
23555B - RING, O(FOR IDLE ADJUST SCREW)
23532-40010

MU..MS110..LPG

 2
23556 - SPRING, IDLE ADJUST SCREW
21723-21030

MU..MS110..LPG

 1
23569 - COCK, DRAIN
23569-40011

MU..MS110..LPG

 1
23571 - SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
93219-14012

MU..MS110..LPG

 4
93219-14012

MU..MS110..LPG

 4
23571A - SCREW
26226-41030

MU..MS110..LPG

 1
23572 - PIPE, DRAIN
23572-41030

MU..MS110..LPG

 1
23573 - DIAPHRAGM
23573-44040

MU..MS110..LPG

 1
23574 - RING, O, NO.1(FOR BULB)
23574-44021

MU..MS110..LPG

 2
23574 - RING, O, NO.1(FOR BULB)
23574-44021

MU..MS110..LPG

 2
23576 - BRACKET
23576-44040

MU..MS110..LPG

 1
23591 - UNION, NO.1, FUEL
90404-14064

MU..MS110..LPG

 1
23592 - UNION, NO.2, FUEL HOSE
23592-40012

MU..MS110..LPG

 1
23592-40012

MU..MS110..LPG

 1
23593 - UNION, NO.3
23593-44050

MU..MS110..LPG

 1
23594 - UNION, NO.4, WATER HOSE
23594-31013

MU..MS110..LPG

INLET

 1
23594-41040

MU..MS110..LPG

OUTLET

 1
23594 - UNION, NO.4, WATER HOSE
23594-31013

MU..MS110..LPG

INLET

 1
23594-41040

MU..MS110..LPG

OUTLET

 1
23595 - UNION, NO.5
23591-41041

MU..MS110..LPG

 1
23597 - PLUG, LPG REGULATOR BODY
90345-51005

MU..MS110..LPG

 2
23597 - PLUG, LPG REGULATOR BODY
90345-51005

MU..MS110..LPG

 2
Common parts
21821-15010
21821-38310
21888-21060
91611-40840
94511-00400
