MS110-SEKFS (1979)
Toyota Crown
(7909- )MU..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-41260 |
MU..MS110..CBR |
1 | ||
| 21035 - PLUNGER SUB-ASSY, PUMP | ||||
| 21035-41260 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21071 - VALVE SUB-ASSY, THERMOSTATIC | ||||
| 21072-45200 |
MU..MS110..CBR |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-41280 |
MU..MS110..CBR |
1 | ||
| 21191 - OPENER | ||||
| 21191-45200 |
MU..MS110..CBR |
1 | ||
| 21192 - BREAKER | ||||
| 21192-41262 |
MU..MS110..CBR |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-41230 |
MU..MS110..CBR ID=0.70 |
1 | ||
| 21211A - RING(FOR SMALL VENTURI) | ||||
| 21659-38110 |
MU..MS110..CBR |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41110 |
MU..MS110..CBR ID=1.10 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42180 |
MJ,MU..MS110,117..CBR ID=1.80 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43050 |
MJ,MU..MS110,117..CBR ID=0.50 |
1 | ||
| 21257 - JET, PUMP | ||||
| 21257-45101 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21257A - RING, O(FOR PUMP JET) | ||||
| 21655-11040 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21257B - SPRING(FOR PUMP JET) | ||||
| 21869-41260 |
MU..MS110..CBR |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21842-45100 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-41130 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-26030 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-60200 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-45201 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-30010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-41012 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-45100 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21609 - DIAPHRAGM SUB-ASSY | ||||
| 21667-41261 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-41011 |
MJ,MU..MS110,117..CBR 1ST |
1 | ||
| 21614-41010 |
MJ,MU..MS110,117..CBR 2ND |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-41011 |
MJ,MU..MS110,117..CBR 1ST |
1 | ||
| 21614-41010 |
MJ,MU..MS110,117..CBR 2ND |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-30010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21621-30010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-45100 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-45100 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-34080 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21619-60010 |
MU..MS110..CBR |
1 | ||
| 21645 - GASKET, DIAPHRAGM, CAP | ||||
| 21645-41010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21672 - CAP | ||||
| 90339-03005 |
MU..MS110..CBR |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-41260 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-51010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-11041 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21726-40010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21728-45290 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21729 - SPRING, 1ST THROTTLE BACK | ||||
| 90506-06005 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21724-30010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-30011 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-24360 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-41190 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21782 - PLUG, NUT(FOR ACCELERATING SYSTEM) | ||||
| 21782-41011 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
MJ,MU..MS110,117..CBR |
13 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-30010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21845-45200 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
MJ,MU..MS110,117..CBR *6-1.0PX27.5-13 |
1 | ||
| 21835-40010 |
MJ,MU..MS110,117..CBR *6-1.0PX27.5-11 |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 93110-16035 |
MJ,MU..MS110,117..CBR *6-1.0PX35-25 |
2 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21821-25010 |
MJ,MU..MS110,117..CBR *4-0.7PX10-6.3 |
3 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21865 - SPRING | ||||
| 21865-41261 |
MU..MS110..CBR |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
MJ,MU..MS110,117..CBR |
2 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-41260 |
MU..MS110..CBR |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
MJ,MU..MS110,117..CBR |
1 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
MJ,MU..MS110,117..CBR |
1 | ||
| Common parts | ||||
| 21821-24030 | ||||
| 21821-34380 | ||||
| 21842-33010 | ||||
| 21873-21010 | ||||
| 23537-44020 | ||||
| 93119-13012 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95381-01610 | ||||

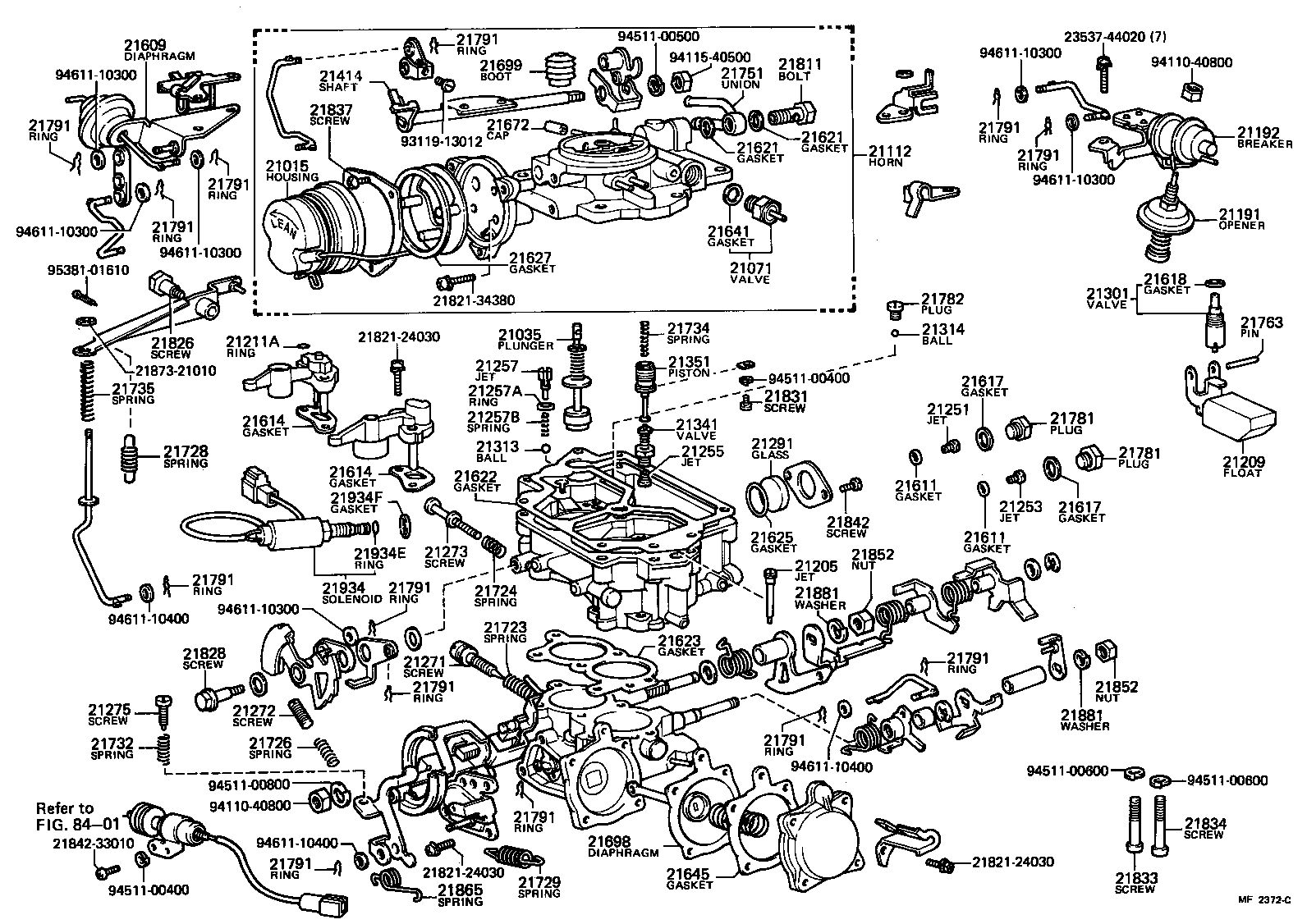

| Linked diagrams | ||||
| 8401 | ||||
