MS110-SEKDS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine MU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MJ,MU..CBR

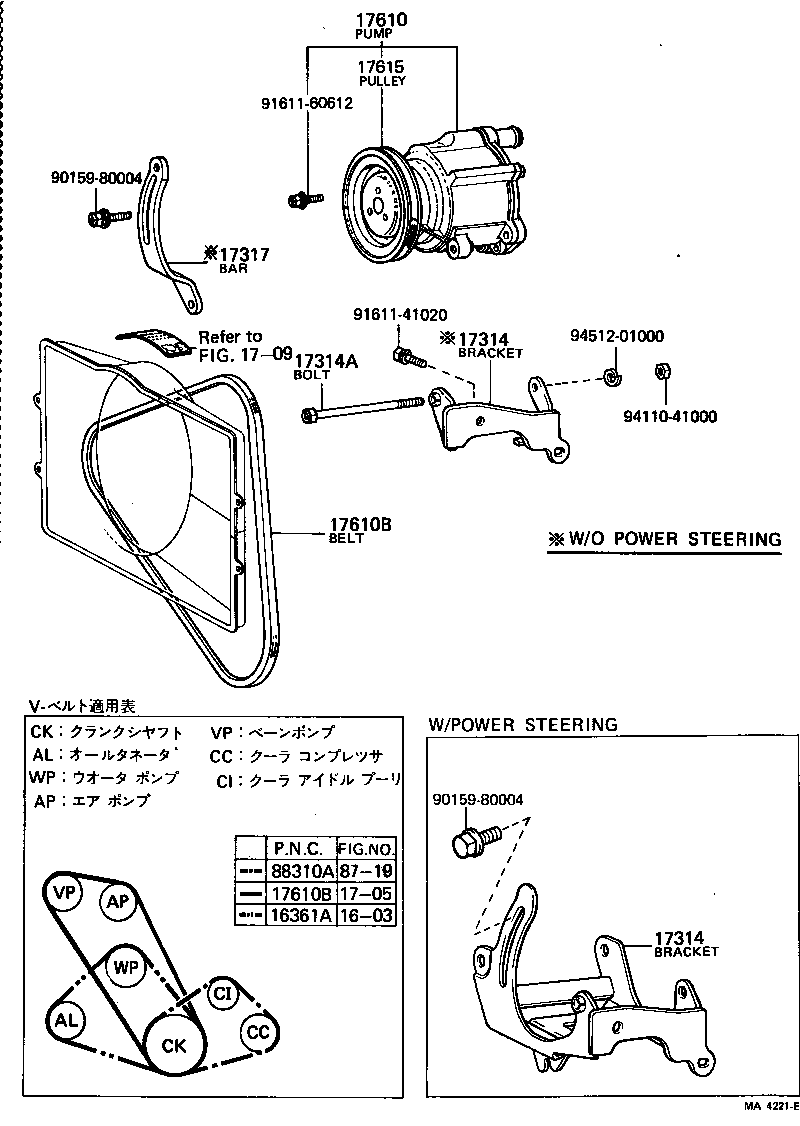

Click highlighted areas on diagram

diagram 1603 16361A 1705 1709 17314 17314 17314A 17317 17610 17610B 17610B 17615 8719 88310A 9015980004 9015980004 9161141020 9161160612 9411041000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02076

MEU,MJ,5M#,MTEU,MU..MS11#

L=925

 1
17314 - BRACKET, AIR PUMP
17314-41030

MJ,MU..MS110,117..(BTP,CTE,DLX,SDX)..CBR

W/POWER STEERING

 1
17314-41020

MJ,MU..MS110,117..(BTP,DLX,SDX,STD)..CBR

W/O POWER STEERING

 1
17314 - BRACKET, AIR PUMP
17314-41030

MJ,MU..MS110,117..(BTP,CTE,DLX,SDX)..CBR

W/POWER STEERING

 1
17314-41020

MJ,MU..MS110,117..(BTP,DLX,SDX,STD)..CBR

W/O POWER STEERING

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90110-10001

MJ,MU..MS110,117

*10-1.25PX114-25

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-45011

MJ,MU..MS110,117..(BTP,DLX,SDX,STD)..CBR

W/O POWER STEERING

 1
17610 - PUMP ASSY, AIR
17610-41020

MU..MS110..CBR

 1
17610B - BELT, V(FOR AIR PUMP)
99332-01395

MJ,MU..MS110,117..(BTP,CTE,DLX,SDX)..CBR

W/POWER STEERING

 1
99322-01155

MJ,MU..MS110,117..(BTP,DLX,SDX,STD)..CBR

W/O POWER STEERING

 1
17610B - BELT, V(FOR AIR PUMP)
99332-01395

MJ,MU..MS110,117..(BTP,CTE,DLX,SDX)..CBR

W/POWER STEERING

 1
99322-01155

MJ,MU..MS110,117..(BTP,DLX,SDX,STD)..CBR

W/O POWER STEERING

 1
17615 - PULLEY(FOR AIR PUMP)
17615-41020

MJ,MU..MS110,117..CBR

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00940

MS11#..CBR,EFI,TBO

 1
99322-00940

MS110,117..CBR

 1
Common parts
90159-80004
91611-41020
91611-60612
94110-41000
94512-01000
Linked diagrams
1603
1705
1709
8719
