MS110-SEHGT (1980)

Toyota Crown

Production Oct 1980 - Jul 1983
Engine MTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)ROY,SAL,SDX,SPE..EFI,TBO

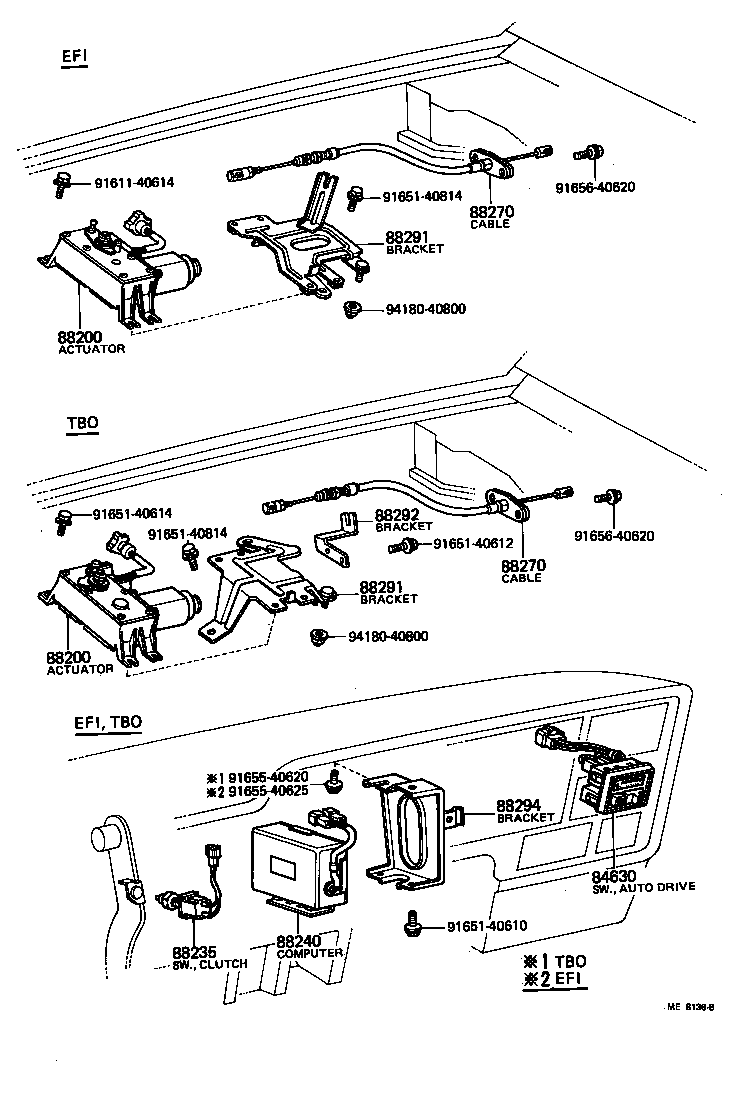

Click highlighted areas on diagram

diagram 84630 88200 88200 88235 88240 88270 88270 88291 88291 88292 88294 9161140614 9165140610 9165140612 9165140614 9165140814 9165140814 9165540620 9165540625 9165640620 9165640620 9418040800 9418040800
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
88230-30020

GS110,LS111,MS110,112..ROY,SAL

 1
88230-30020

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

 1
88200 - CRUISE CONTROL ASSY
88200-30060

MS110..TBO

 1
88200-30080

MS110..SAL

 1
88200 - CRUISE CONTROL ASSY
88200-30060

MS110..TBO

 1
88200-30080

MS110..SAL

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-30060

MS110..SAL

 1
88270 - CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)
83731-30020

MS110..TBO

 1
83731-30040

MS110..SAL

 1
88270 - CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)
83731-30020

MS110..TBO

 1
83731-30040

MS110..SAL

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-30040

MS110..TBO

 1
88291-30041

MS110..SAL

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-30040

MS110..TBO

 1
88291-30041

MS110..SAL

 1
88292 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2
88292-30040

MS110..SAL

 1
88292-30030

MS110..TBO

 1
88294 - BRACKET, CRUISE CONTROL(AUTO DRIVE) MAIN SWITCH
88294-30021

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

 1
88294-30021

GS110,MS110,112..ROY,SAL

 1
Common parts
91611-40614
91651-40610
91651-40612
91651-40614
91651-40814
91655-40620
91655-40625
91656-40620
94180-40800

(8108- )GS110,MS110,112..ROY,SAL

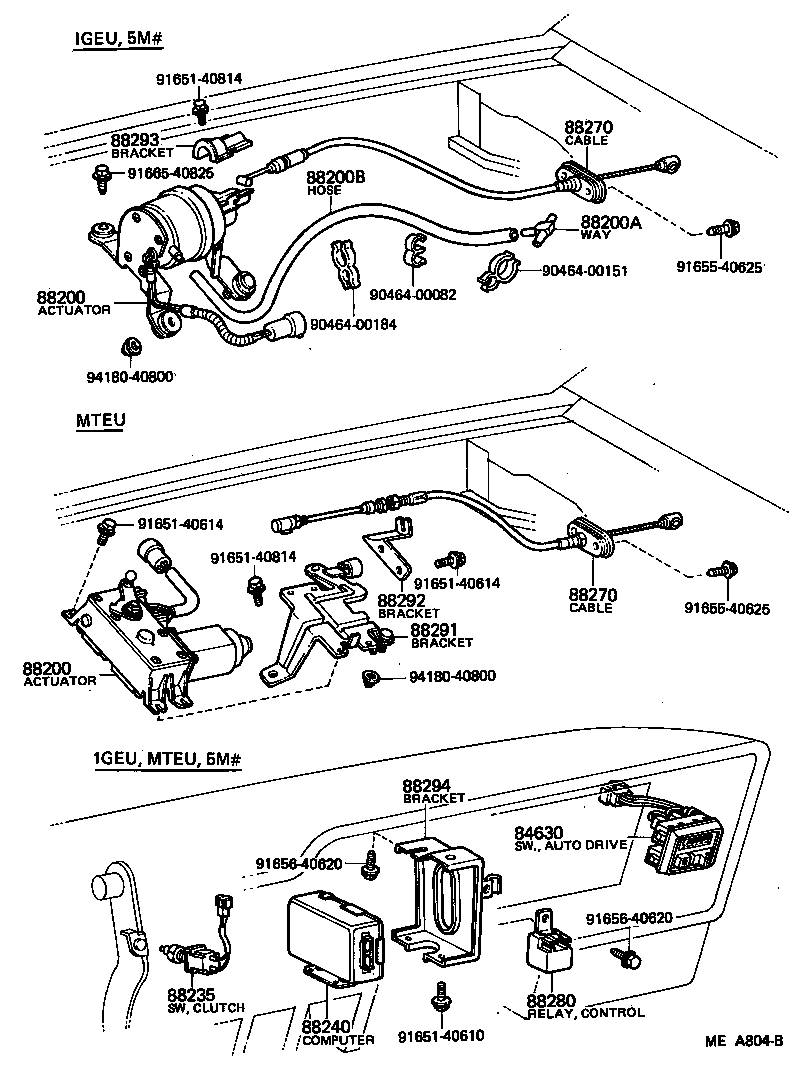

Click highlighted areas on diagram

diagram 84630 88200 88200 88200A 88200B 88235 88240 88270 88270 88280 88291 88292 88293 88294 9046400082 9046400151 9046400184 9165140610 9165140614 9165140614 9165140814 9165140814 9165540625 9165540625 9165640620 9165640620 9166540825 9418040800 9418040800
Part # Description Qty Price
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
88230-30020

GS110,LS111,MS110,112..ROY,SAL

 1
88230-30020

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

 1
88200 - CRUISE CONTROL ASSY
88200-30060

MS110..TBO

 1
88200-30080

MS110..SAL

 1
88200 - CRUISE CONTROL ASSY
88200-30060

MS110..TBO

 1
88200-30080

MS110..SAL

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-30060

MS110..SAL

 1
88270 - CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)
83731-30020

MS110..TBO

 1
83731-30040

MS110..SAL

 1
88270 - CABLE ASSY, CRUISE CONTROL(AUTO DRIVE)
83731-30020

MS110..TBO

 1
83731-30040

MS110..SAL

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-30040

MS110..TBO

 1
88291-30041

MS110..SAL

 1
88292 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.2
88292-30040

MS110..SAL

 1
88292-30030

MS110..TBO

 1
88294 - BRACKET, CRUISE CONTROL(AUTO DRIVE) MAIN SWITCH
88294-30021

MS110,112..(ROY,SAL,SDX,SPE)..(EFI,TBO)

 1
88294-30021

GS110,MS110,112..ROY,SAL

 1
Common parts
90464-00082
90464-00151
90464-00184
91651-40610
91651-40614
91651-40814
91655-40625
91656-40620
91665-40825
94180-40800
