MS110-SEHGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7909- )BTP,CTE,DLX,SAL,SDX,SPE,STD

Click highlighted areas on diagram

diagram 87283A 87283A 87292 87292A 87293E 87293E 9046310031 9046400235 9046400248 9048031002 9048031002 9165640816
Part # Description Qty Price
87283A - HOSE, NO.1
90445-06004

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
87283A - HOSE, NO.1
90445-06004

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
87292 - TANK, VACUUM
87292-30280

GS110,MS110,112..ROY,SAL,SDX,SPE

 1
87292A - HOSE, VACUUM TANK
90445-06001

MS11#

L=700

 1
90445-06001

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=700

 1
87293E - UNION, HOSE
90405-04001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
87293E - UNION, HOSE
90405-04001

GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD

 1
Common parts
90463-10031
90464-00235
90464-00248
90480-31002
91656-40816

ILLUST NO. 1 OF 2(7909- )GS110,MS110,112..HT,SED..SAL,SDX,SPE

Click highlighted areas on diagram

diagram 87283A 87292 87292A 87293B 87293B 87293B 87293B 87293B 87293B 87690B 9046310336 9046315067 9048031005 9165640616
Part # Description Qty Price
87283A - HOSE, NO.1
90445-06004

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=500

 1
87292 - TANK, VACUUM
87292-30280

GS110,MS110,112..ROY,SAL,SDX,SPE

 1
87292A - HOSE, VACUUM TANK
90445-06001

MS11#

L=700

 1
90445-06001

MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD

L=700

 1
87293B - HOSE, NO.2
90445-06018

MS110,112..SAL,SDX,SPE

NO.10,L=730,W/*AAC

 1
90445-06016

MS110,112..SAL,SDX,SPE

NO.9,L=1200,W/*AAC

 1
90445-06008

MS110,112..SAL,SDX,SPE

NO.3,L=430,W/*AAC

 1
90445-06025

MS110,112..SAL,SDX,SPE

NO.6,L=1200,W/*AAC

 1
90445-06003

MS110,112..SAL,SDX,SPE

NO.2,L=270,W/*AAC

 1
90445-06019

MS110,112..SAL,SDX,SPE

NO.5,L=1050,W/*AAC

 1
87293B - HOSE, NO.2
90445-06018

MS110,112..SAL,SDX,SPE

NO.10,L=730,W/*AAC

 1
90445-06016

MS110,112..SAL,SDX,SPE

NO.9,L=1200,W/*AAC

 1
90445-06008

MS110,112..SAL,SDX,SPE

NO.3,L=430,W/*AAC

 1
90445-06025

MS110,112..SAL,SDX,SPE

NO.6,L=1200,W/*AAC

 1
90445-06003

MS110,112..SAL,SDX,SPE

NO.2,L=270,W/*AAC

 1
90445-06019

MS110,112..SAL,SDX,SPE

NO.5,L=1050,W/*AAC

 1
87293B - HOSE, NO.2
90445-06018

MS110,112..SAL,SDX,SPE

NO.10,L=730,W/*AAC

 1
90445-06016

MS110,112..SAL,SDX,SPE

NO.9,L=1200,W/*AAC

 1
90445-06008

MS110,112..SAL,SDX,SPE

NO.3,L=430,W/*AAC

 1
90445-06025

MS110,112..SAL,SDX,SPE

NO.6,L=1200,W/*AAC

 1
90445-06003

MS110,112..SAL,SDX,SPE

NO.2,L=270,W/*AAC

 1
90445-06019

MS110,112..SAL,SDX,SPE

NO.5,L=1050,W/*AAC

 1
87293B - HOSE, NO.2
90445-06018

MS110,112..SAL,SDX,SPE

NO.10,L=730,W/*AAC

 1
90445-06016

MS110,112..SAL,SDX,SPE

NO.9,L=1200,W/*AAC

 1
90445-06008

MS110,112..SAL,SDX,SPE

NO.3,L=430,W/*AAC

 1
90445-06025

MS110,112..SAL,SDX,SPE

NO.6,L=1200,W/*AAC

 1
90445-06003

MS110,112..SAL,SDX,SPE

NO.2,L=270,W/*AAC

 1
90445-06019

MS110,112..SAL,SDX,SPE

NO.5,L=1050,W/*AAC

 1
87293B - HOSE, NO.2
90445-06018

MS110,112..SAL,SDX,SPE

NO.10,L=730,W/*AAC

 1
90445-06016

MS110,112..SAL,SDX,SPE

NO.9,L=1200,W/*AAC

 1
90445-06008

MS110,112..SAL,SDX,SPE

NO.3,L=430,W/*AAC

 1
90445-06025

MS110,112..SAL,SDX,SPE

NO.6,L=1200,W/*AAC

 1
90445-06003

MS110,112..SAL,SDX,SPE

NO.2,L=270,W/*AAC

 1
90445-06019

MS110,112..SAL,SDX,SPE

NO.5,L=1050,W/*AAC

 1
87293B - HOSE, NO.2
90445-06018

MS110,112..SAL,SDX,SPE

NO.10,L=730,W/*AAC

 1
90445-06016

MS110,112..SAL,SDX,SPE

NO.9,L=1200,W/*AAC

 1
90445-06008

MS110,112..SAL,SDX,SPE

NO.3,L=430,W/*AAC

 1
90445-06025

MS110,112..SAL,SDX,SPE

NO.6,L=1200,W/*AAC

 1
90445-06003

MS110,112..SAL,SDX,SPE

NO.2,L=270,W/*AAC

 1
90445-06019

MS110,112..SAL,SDX,SPE

NO.5,L=1050,W/*AAC

 1
87690B - WAY, 3
90413-03001

GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)

W/*AAC OR *MPAAC

 1
Common parts
90463-10336
90463-15067
90480-31005
91656-40616

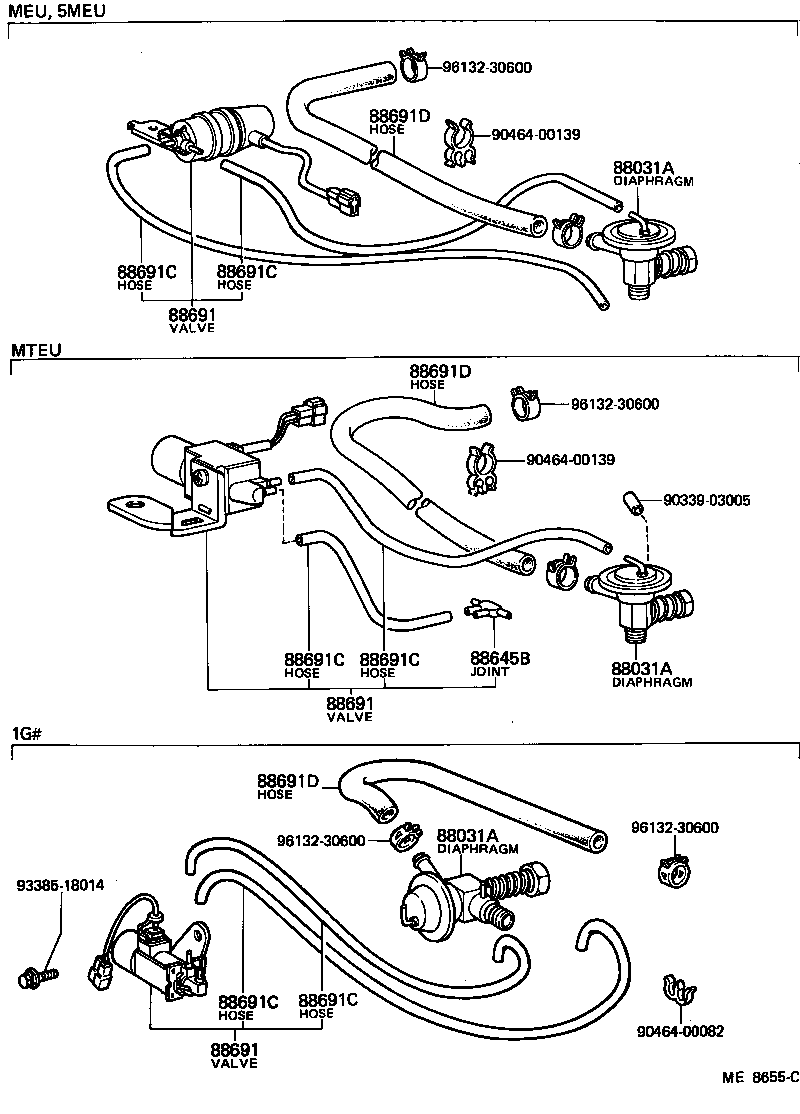

ILLUST NO. 2 OF 2(7909- )EFI,TBO

Click highlighted areas on diagram

diagram 88031A 88031A 88031A 88645B 88691 88691 88691 88691C 88691C 88691C 88691C 88691C 88691C 88691D 88691D 88691D 9033903005 9046400082 9046400139 9046400139 9338518014 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS110,112..EFI,TBO

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS110,112..EFI,TBO

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020

MS110,112..EFI,TBO

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS110,112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS110,112..EFI

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22130

MS110,112..EFI

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

MS110,112..EFI

*H,L=330,ﾏｰｸ=#0

 1
95411-19960

MS110,112..EFI

*H,L=330,ﾏｰｸ=#*

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS110,112..EFI

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS110,112..EFI

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
88689-22010

MS110,112..EFI

 1
Common parts
90339-03005
90464-00082
90464-00139
93385-18014
96132-30600
