MS110-SEHGE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7909- )BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX

Click highlighted areas on diagram

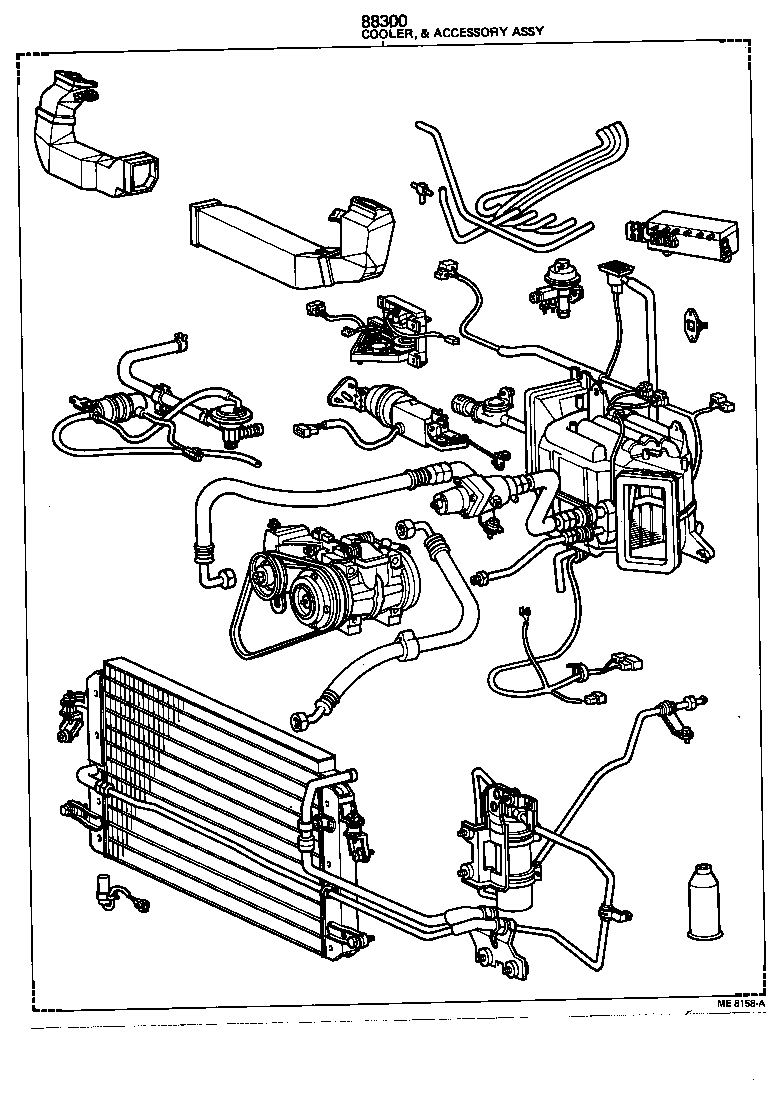

diagram 88300
Part # Description Qty Price
88300 - COOLER & ACCESSORY ASSY
88300-3A050

MS110,112..(CTE,SAL,SDX,SPE)..EFI

 1
88300-3A150

MS110,112..(SAL,SDX,SPE)..EFI

*AAC

 1

ILLUST NO. 2 OF 2(7909- )HT,SED..BTP,CTE,DLX,SAL,SDX,SPE,TAX..CBR,DSL,EFI,TBO,TD,TDE

Click highlighted areas on diagram

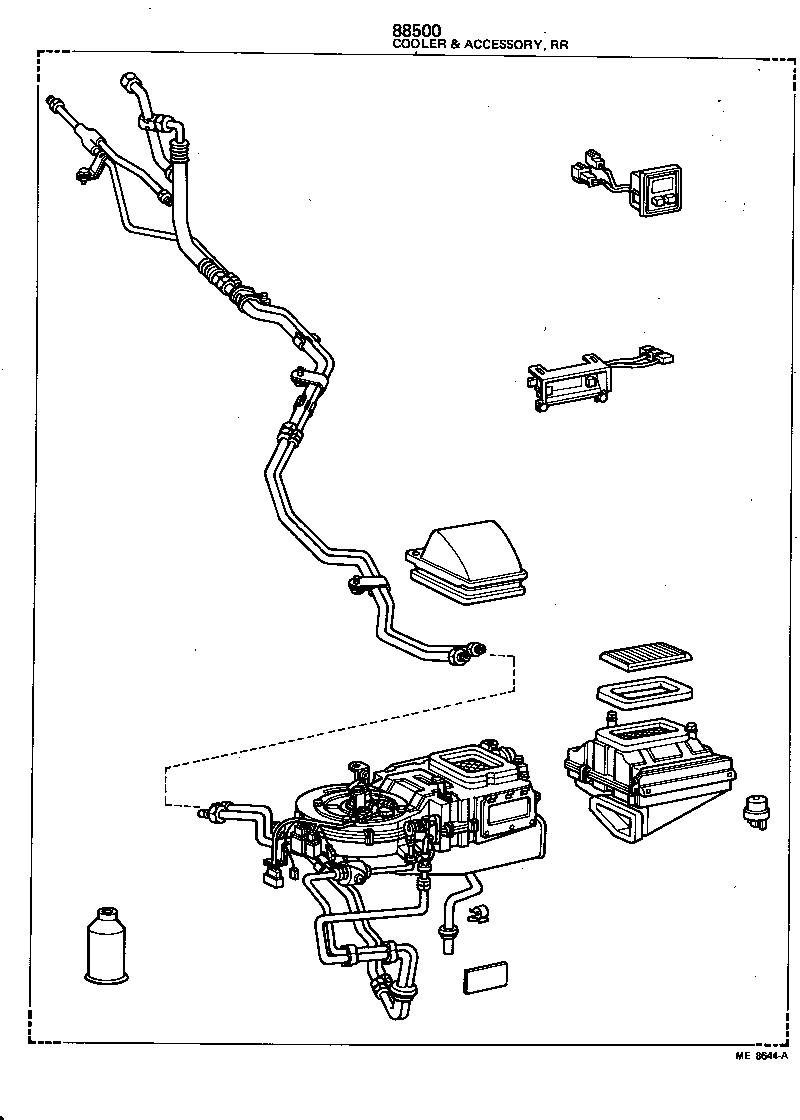

diagram 88500
Part # Description Qty Price
88500 - COOLER AND ACCESSORY ASSY, REAR
88500-30280

MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI)

 1
88500-30280

MS110,112..(HT,SED)..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE)

 1
