MS110-SEHGE (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
MEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

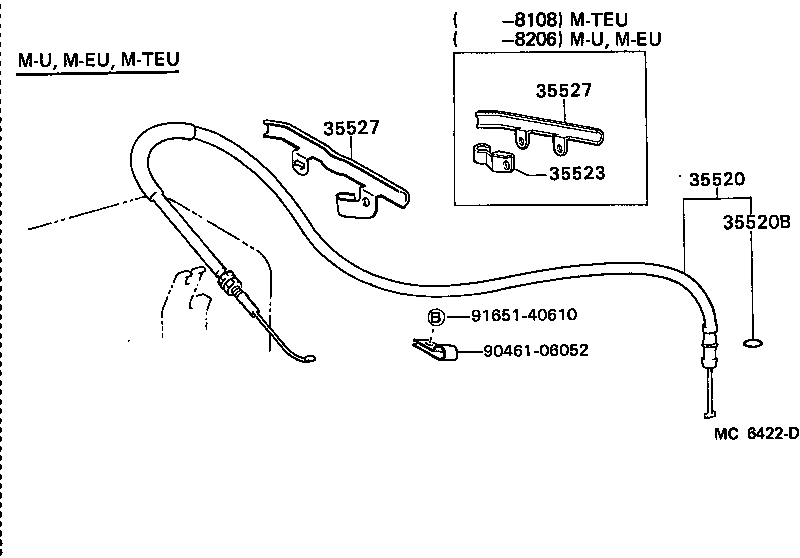

ILLUST NO. 1 OF 2(7909- )MS110..ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30010 |
MS110..ATM..EFI |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09063 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-22020 |
MS110,112..ATM |
1 | ||
| 35527 - INSULATOR, THROTTLE CABLE HEAT | ||||
| 35527-22011 |
MS110,112..ATM |
1 | ||
| 35527 - INSULATOR, THROTTLE CABLE HEAT | ||||
| 35527-22011 |
MS110,112..ATM |
1 | ||
| Common parts | ||||
| 90461-06052 | ||||
| 91651-40610 | ||||

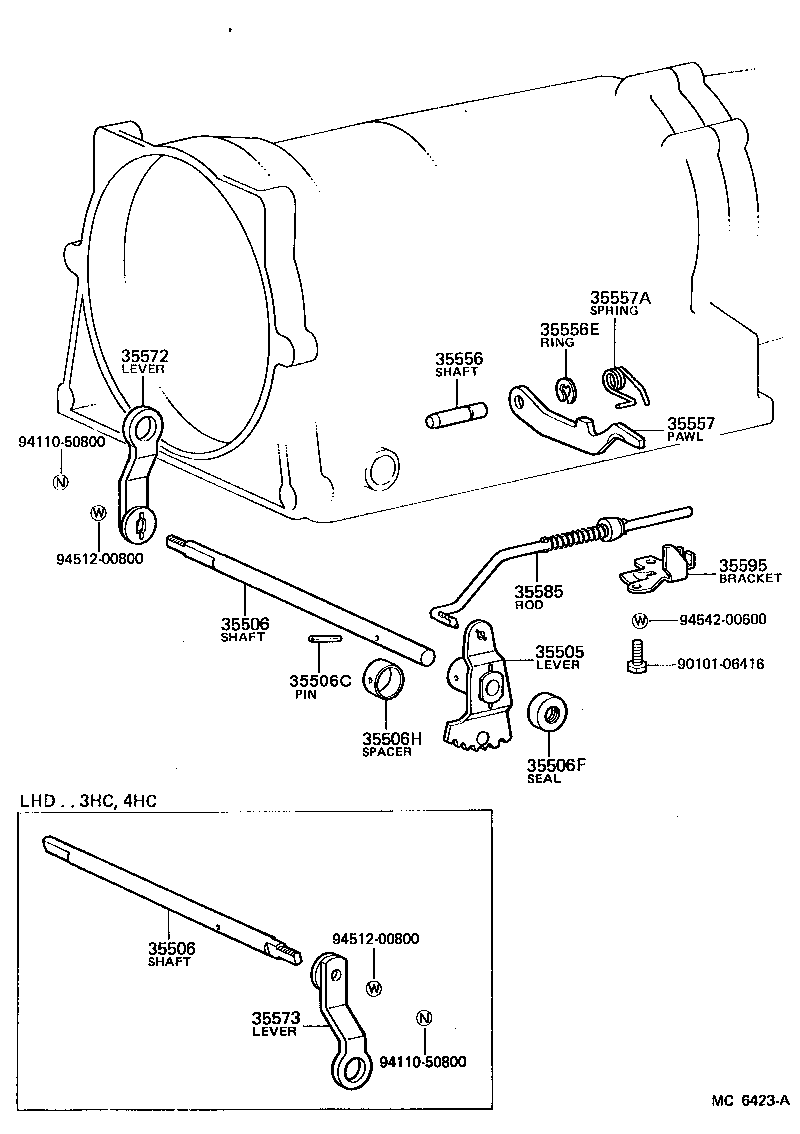

ILLUST NO. 2 OF 2(7909- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22010 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-20021 |
GS110,LS110,117,MS110,112..ATM |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35561-20021 |
GS110,LS110,117,MS110,112..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03004 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11128 |
GS110,LS11#,MS110,112..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-22010 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-22010 |
LS11#,MS110..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-25329 |
MS110..ATM..(CBR,EFI,LPG) |
1 | ||
| 90508-25329 |
LS11#,MS110..ATM |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-30050 |
GS110,LS11#,MS110,112..ATM |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35501-22010 |
MS110..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-22010 |
MS110..ATM |
1 | ||
| 35595-16010 |
MS110..ATM..(CBR,EFI,LPG) |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||
