MS110-SEHFS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )CTE,ROY,SAL,SDX,SPE

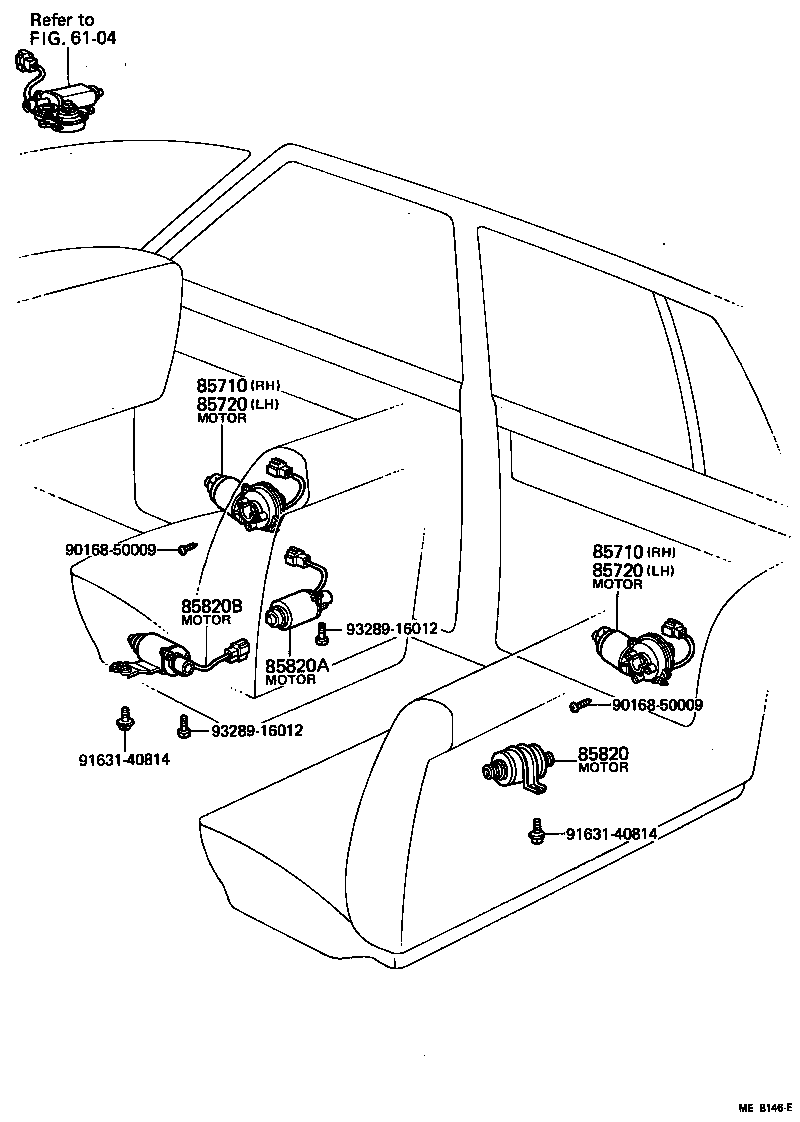

Click highlighted areas on diagram

diagram 6104 85710 85710 85720 85720 85820 85820A 85820B 9016850009 9016850009 9163140814 9163140814 9328916012 9328916012
Part # Description Qty Price
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30090

LS110,MS110,112..CTE,ROY,SAL,SDX,SPE

RR

 1
85710-30100

LS110,MS110,112..ROY,SAL,SDX,SPE

FR

 1
85710 - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-30090

LS110,MS110,112..CTE,ROY,SAL,SDX,SPE

RR

 1
85710-30100

LS110,MS110,112..ROY,SAL,SDX,SPE

FR

 1
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-30060

LS110,MS110,112..SED..(ROY,SAL,SDX)

 2
85720-30060

LS110,MS110,112..CTE,ROY,SAL,SDX,SPE

 2
85720 - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-30060

LS110,MS110,112..SED..(ROY,SAL,SDX)

 2
85720-30060

LS110,MS110,112..CTE,ROY,SAL,SDX,SPE

 2
Common parts
90168-50009
91631-40814
93289-16012
Linked diagrams
6104
