MS110-SEHFE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED,V,WG

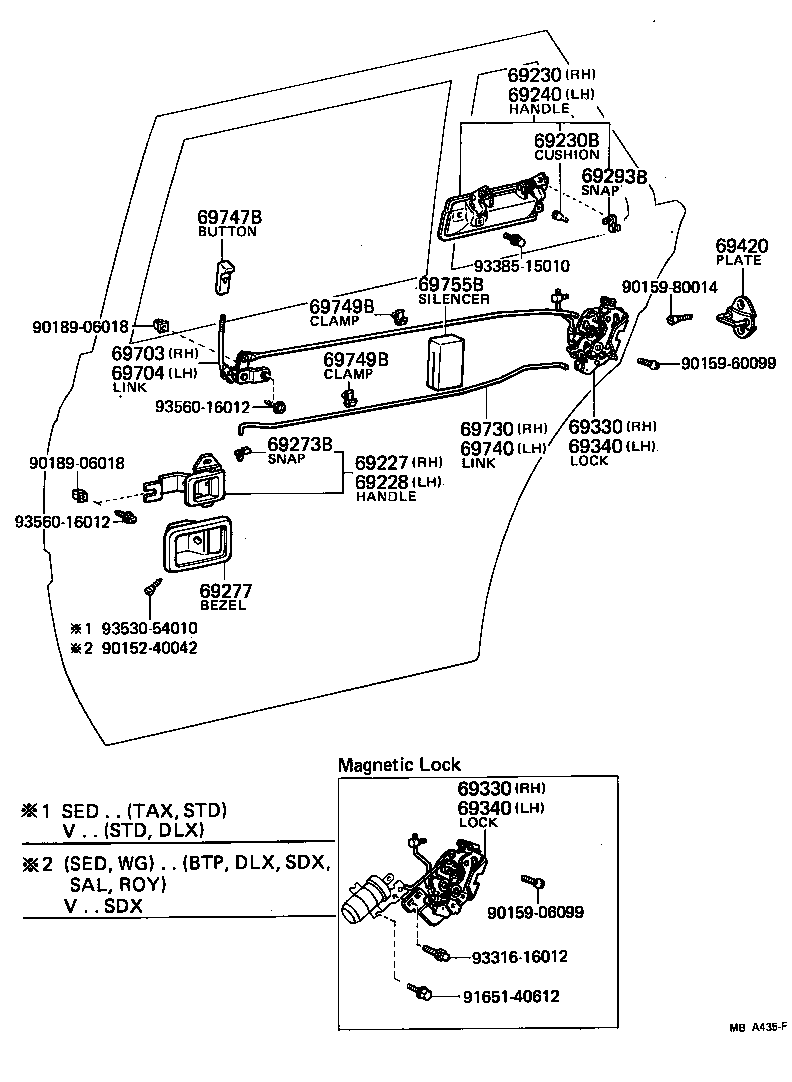

Click highlighted areas on diagram

diagram 69227 69228 69230 69230B 69240 69273B 69277 69293B 69330 69330 69340 69340 69420 69703 69704 69730 69740 69747B 69749B 69749B 69755B 9015240042 9015906099 9015960099 9015980014 9018906018 9018906018 9165140612 9331616012 9338515010 9353054010 9356016012 9356016012
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69205-30010

GS11#,LS11#,MS11#,RS110..4D

 1
69228 - HANDLE, REAR DOOR INSIDE, LH
69206-30010

GS11#,LS11#,MS11#,RS110..4D

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69220-30080

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-03021

GS11#,LS11#,MS11#,RS110..SED,V,WG

 2
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-30080

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
69279-12020

GS11#,LS11#,MS11#,RS110..4D

RH

 1
69288-12010

GS11#,LS11#,MS11#,RS110..4D

LH

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69277-30030

GS110,LS110,111,MS110,112,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..4D

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-30100

MS110..(SED,WG)..(DLX,SDX)..(CBR,EFI)

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-30100

MS110..(SED,WG)..(DLX,SDX)..(CBR,EFI)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30100

MS110..(SED,WG)..(DLX,SDX)..(CBR,EFI)

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30100

MS110..(SED,WG)..(DLX,SDX)..(CBR,EFI)

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-12040

GS11#,LS11#,MS11#,RS110..4D

 2
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69770-30070

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69780-30040

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69713-30040

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69714-30040

GS11#,LS11#,MS11#,RS110..SED,V,WG

 1
69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR)
69741-3002004

LS11#,MS11#,RS110..4D

BLUE,BLUE,TRIM8#

 2
69741-3002002

LS11#,MS11#,RS110..4D

DARK WINE,RED/MAROON,TRIM3#

 2
69741-3002005

LS11#,MS11#,RS110..4D

GREIGE,BEIGE,TRIM4#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

GS110,LS11#,MS11#,RS110..4D

 4
69749B - CLAMP, REAR DOOR LOCK LINK
69749-12010

GS110,LS11#,MS11#,RS110..4D

 4
69755B - SILENCER, REAR DOOR LOCK LINK
69759-30021

GS11#,LS11#,MS11#,RS110..4D

 2
Common parts
90152-40042
90159-06099
90159-60099
90159-80014
90189-06018
91651-40612
93316-16012
93385-15010
93530-54010
93560-16012
