MS110-SEHFE (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

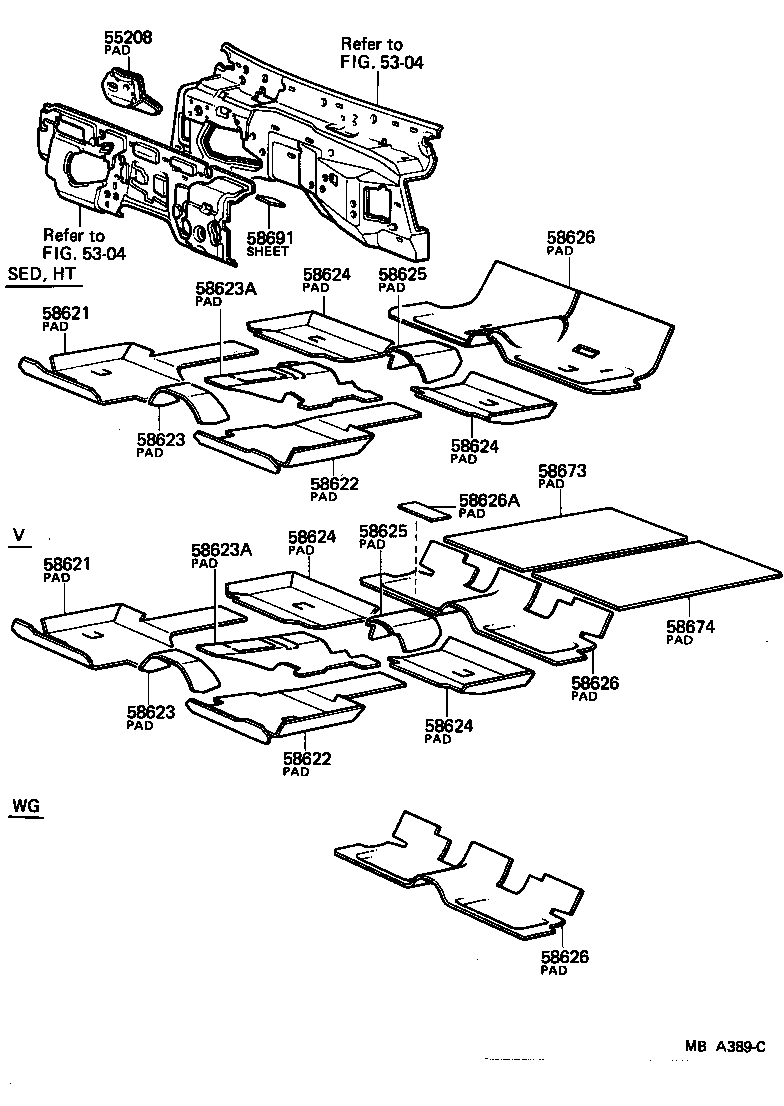

Click highlighted areas on diagram

diagram 5304 5304 55208 58621 58621 58622 58622 58623 58623 58623A 58623A 58624 58624 58624 58624 58625 58625 58626 58626 58626 58626A 58673 58674 58691
Part # Description Qty Price
55208 - PAD SUB-ASSY, DASH PANEL SILENCER, CENTER NO.1
55213-30160

GS11#,LS11#,MS11#,RS110

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-30050

LS110..SED..(BTP,DLX,SDX);MS110,112,RS110..SED..(3FC,3HC,4F,4FC,4H,4HC,5F)..(BTP,DLX,SAL,SDX,STD)

W/CARPET

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-30050

LS110..SED..(BTP,DLX,SDX);MS110,112,RS110..SED..(3FC,3HC,4F,4FC,4H,4HC,5F)..(BTP,DLX,SAL,SDX,STD)

W/CARPET

 1
58626 - PAD, FLOOR SILENCER, REAR
58657-30050

LS110..SED..(BTP,DLX,SDX);MS110,112,RS110..SED..(3FC,3HC,4F,4FC,4H,4HC,5F)..(BTP,DLX,SAL,SDX,STD)

W/CARPET

 1
58691 - SHEET, SILENCER
61825-30010

GS110,LS110,111,MS110,112,RS110..HT,SED

70X70

 1
Linked diagrams
5304
