MS110-SEBRS (1979)
Toyota Crown
Production
Sep 1979
-
Jul 1983
Engine
MU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909-8108)

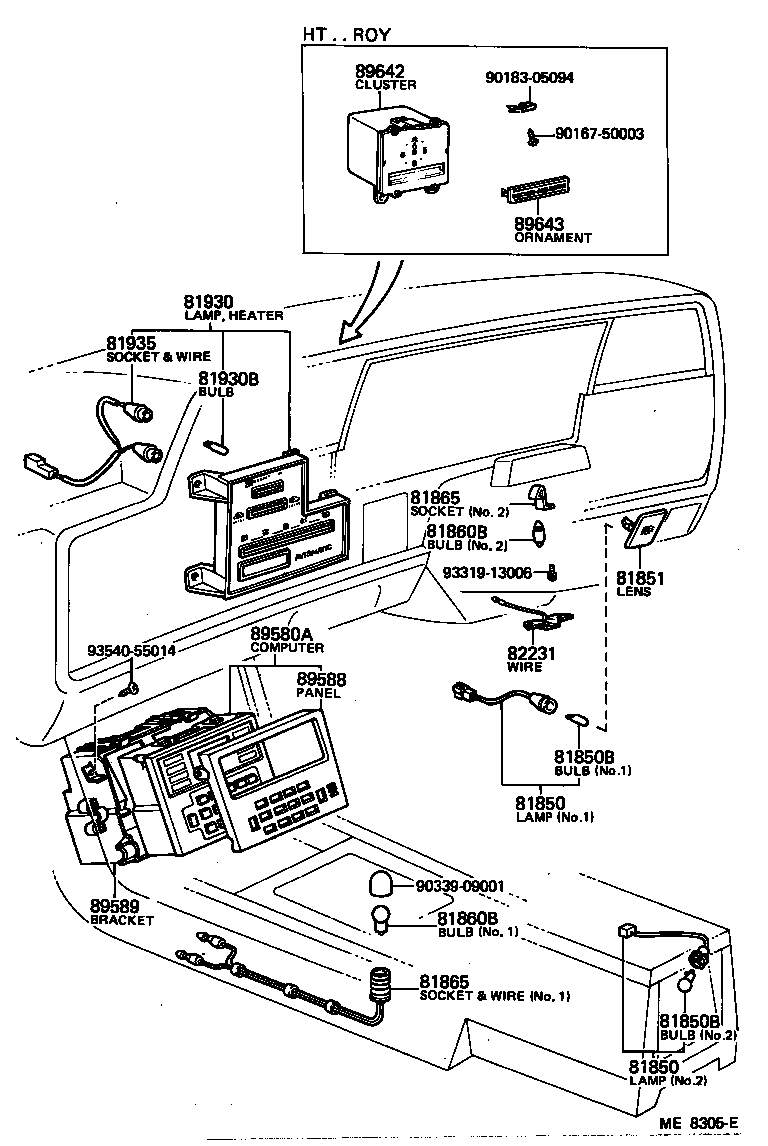

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-30080 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD W/*SEP |
1 | ||
| 81930-30140 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD W/*IT |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 81936-30080 |
GS117,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP | ||||
| 81935-30080 |
GS117,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| Common parts | ||||
| 90167-50003 | ||||
| 90183-05094 | ||||
| 90339-09001 | ||||
| 93319-13006 | ||||
| 93540-55014 | ||||
(8108- )

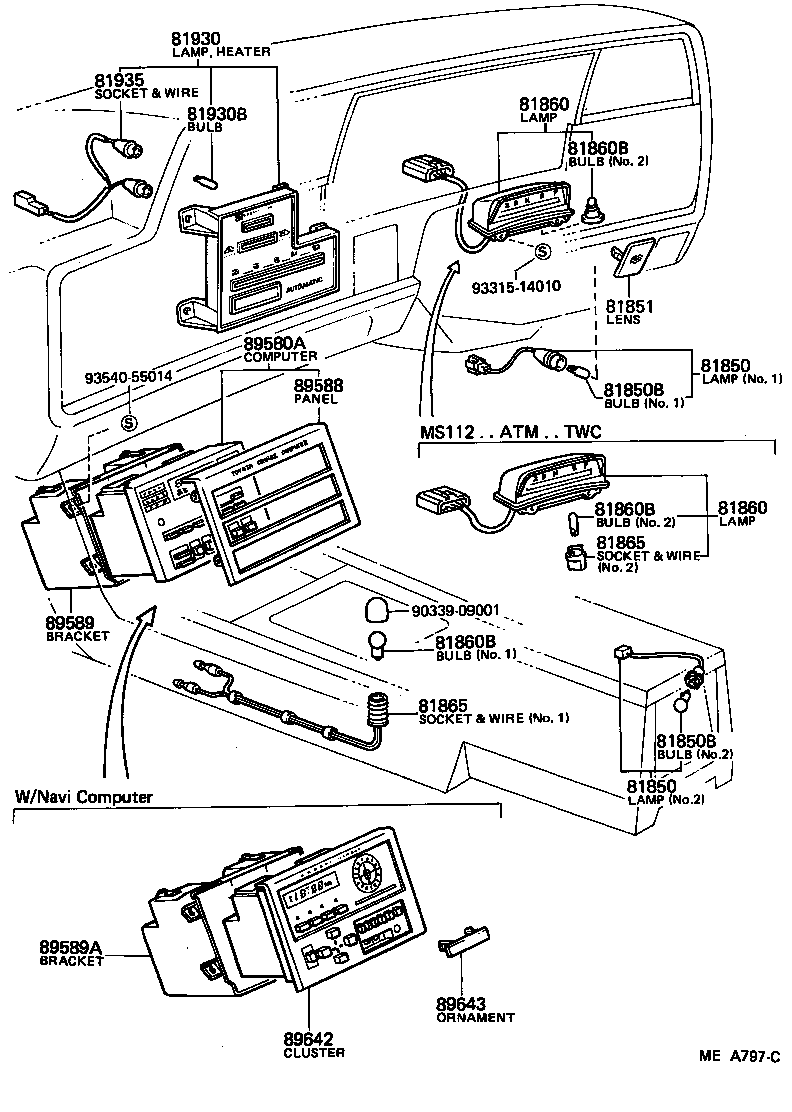

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1 | ||||
| 81930-30080 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD W/*SEP |
1 | ||
| 81930-30140 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD W/*IT |
1 | ||
| 81930B - BULB, HEATER CONTROL INDICATOR LAMP | ||||
| 81936-30080 |
GS117,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP | ||||
| 81935-30080 |
GS117,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| Common parts | ||||
| 90339-09001 | ||||
| 93315-14010 | ||||
| 93540-55014 | ||||
