MS110-SEBRS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MEU,MJ,5MEU,MTEU,MU

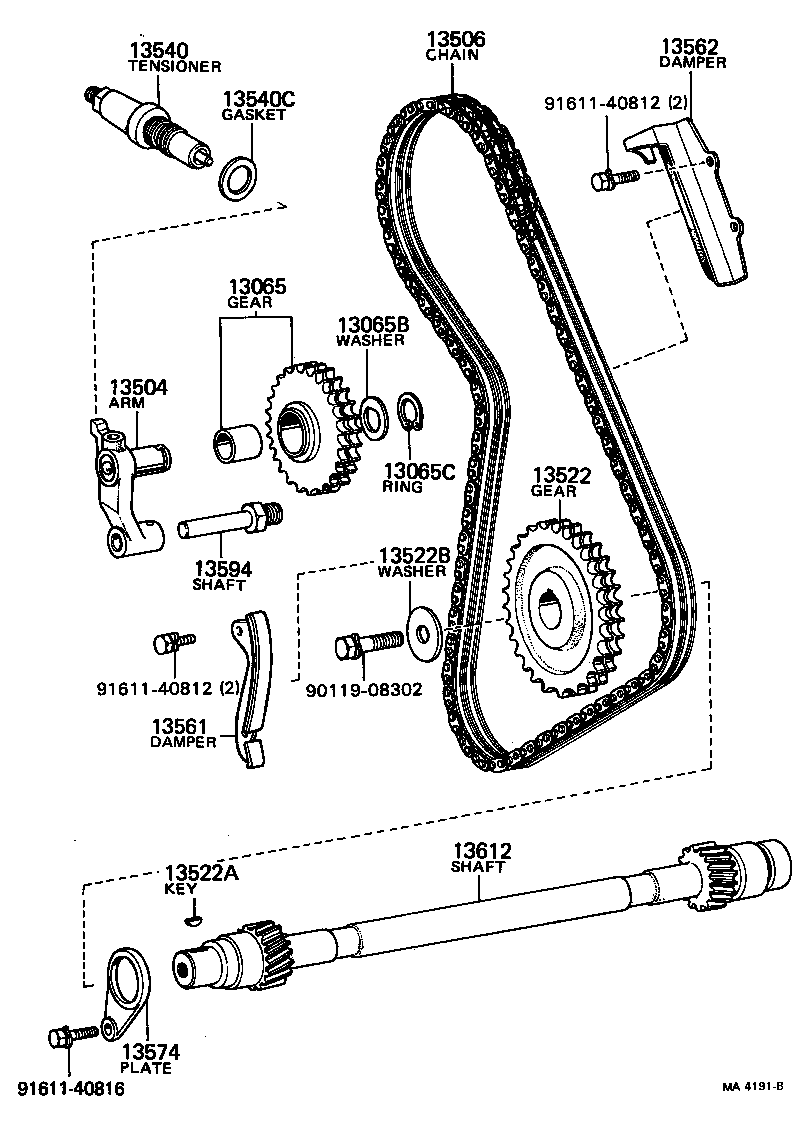

Click highlighted areas on diagram

diagram 13065 13065B 13065C 13504 13506 13522 13522A 13522B 13540 13540C 13561 13562 13574 13594 13612 9011908302 9161140812 9161140812 9161140816
Part # Description Qty Price
13065 - GEAR SUB-ASSY, TENSION
13065-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13065B - WASHER, TIMING CHAIN TENSION GEAR CLAW
90214-20017

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13065C - RING, SHAFT SNAP(FOR TENSION GEAR)
96150-02000

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13504 - ARM SUB-ASSY, TENSION
13504-45020

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13506 - CHAIN SUB-ASSY
13506-41010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13522 - GEAR, PUMP DRIVE SHAFT
13522-41011

MEU,MJ,5MEU,MTEU,MU..MS11#

N=30

 1
13522A - KEY, WOODRUFF(FOR PUMP DRIVE SHAFT GEAR)
90280-05008

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13522B - WASHER, PLATE(FOR PUMP DRIVE SHAFT GEAR)
90201-08020

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13540C - GASKET(FOR CHAIN TENSIONER)
90430-22135

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13574 - PLATE, PUMP DRIVE SHAFT
13574-41010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13594 - SHAFT, TENSION GEAR ARM
13594-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13612 - SHAFT, PUMP DRIVE
13612-41010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
Common parts
90119-08302
91611-40812
91611-40816
