MS110-SEBFS (1979)
Toyota Crown

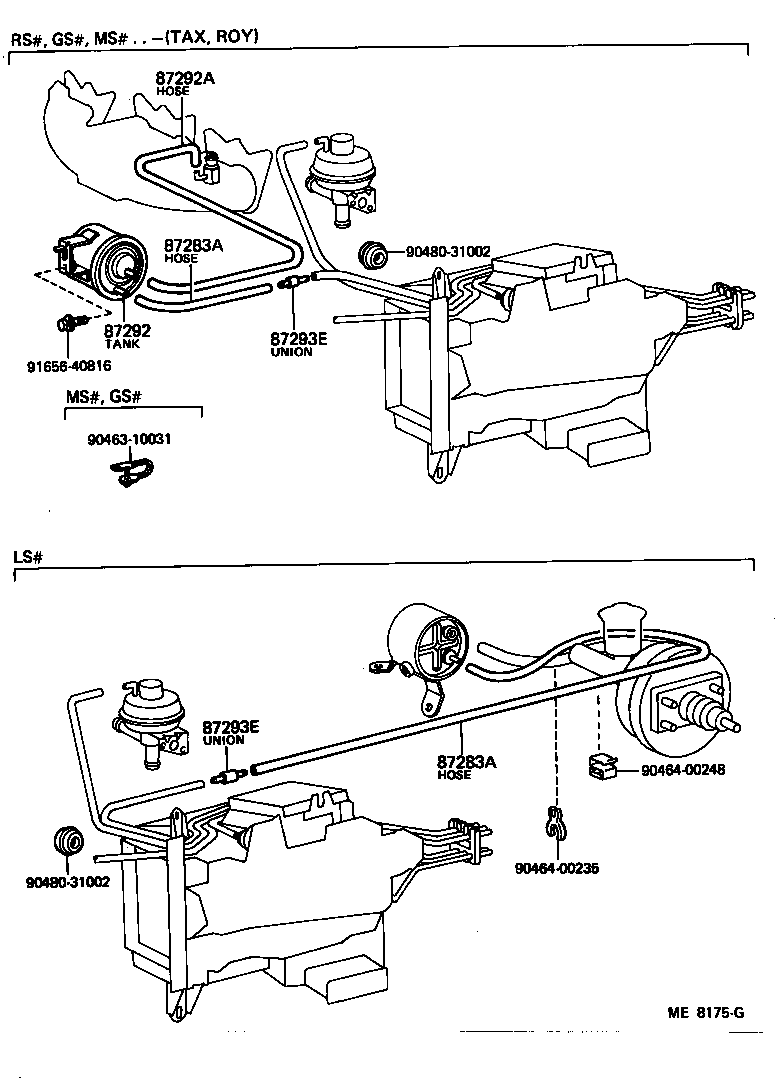

ILLUST NO. 1 OF 2(7909- )BTP,CTE,DLX,SAL,SDX,SPE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87283A - HOSE, NO.1 | ||||
| 90445-06004 |
MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD L=500 |
1 | ||
| 87283A - HOSE, NO.1 | ||||
| 90445-06004 |
MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD L=500 |
1 | ||
| 87292 - TANK, VACUUM | ||||
| 87292-30280 |
GS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90445-06001 |
MS11# L=700 |
1 | ||
| 90445-06001 |
MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD L=700 |
1 | ||
| 87293E - UNION, HOSE | ||||
| 90405-04001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD |
1 | ||
| 87293E - UNION, HOSE | ||||
| 90405-04001 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD |
1 | ||
| Common parts | ||||
| 90463-10031 | ||||
| 90464-00235 | ||||
| 90464-00248 | ||||
| 90480-31002 | ||||
| 91656-40816 | ||||

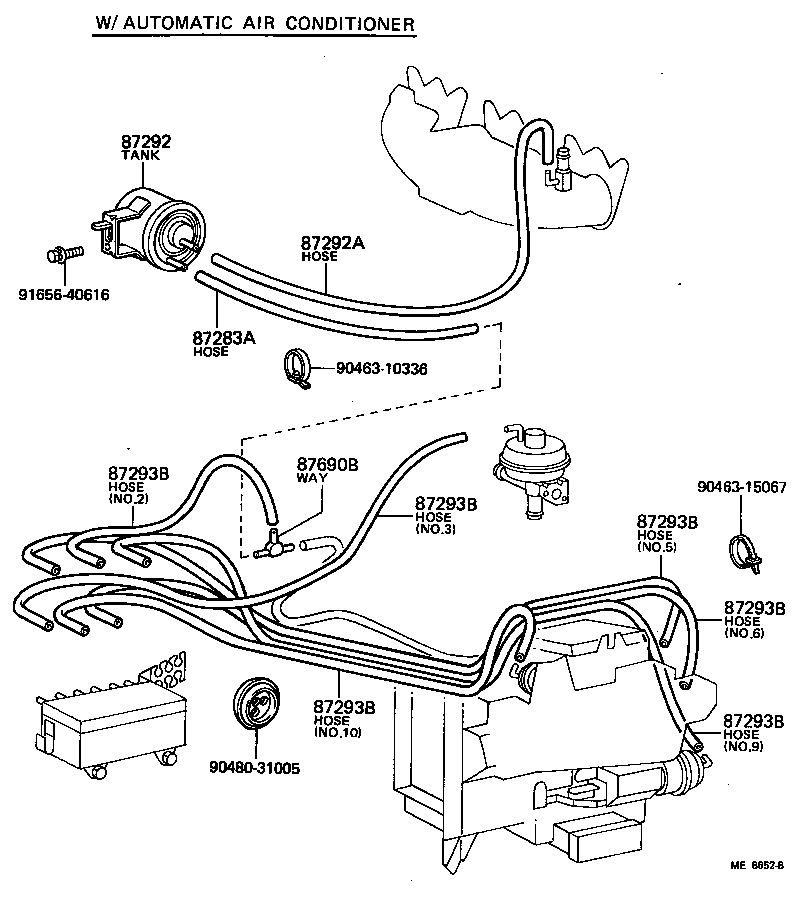

ILLUST NO. 1 OF 2(7909- )GS110,MS110,112..HT,SED..SAL,SDX,SPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87283A - HOSE, NO.1 | ||||
| 90445-06004 |
MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD L=500 |
1 | ||
| 87292 - TANK, VACUUM | ||||
| 87292-30280 |
GS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 87292A - HOSE, VACUUM TANK | ||||
| 90445-06001 |
MS11# L=700 |
1 | ||
| 90445-06001 |
MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD L=700 |
1 | ||
| 87293B - HOSE, NO.2 | ||||
| 90445-06018 |
MS110,112..SAL,SDX,SPE NO.10,L=730,W/*AAC |
1 | ||
| 90445-06016 |
MS110,112..SAL,SDX,SPE NO.9,L=1200,W/*AAC |
1 | ||
| 90445-06008 |
MS110,112..SAL,SDX,SPE NO.3,L=430,W/*AAC |
1 | ||
| 90445-06025 |
MS110,112..SAL,SDX,SPE NO.6,L=1200,W/*AAC |
1 | ||
| 90445-06003 |
MS110,112..SAL,SDX,SPE NO.2,L=270,W/*AAC |
1 | ||
| 90445-06019 |
MS110,112..SAL,SDX,SPE NO.5,L=1050,W/*AAC |
1 | ||
| 87293B - HOSE, NO.2 | ||||
| 90445-06018 |
MS110,112..SAL,SDX,SPE NO.10,L=730,W/*AAC |
1 | ||
| 90445-06016 |
MS110,112..SAL,SDX,SPE NO.9,L=1200,W/*AAC |
1 | ||
| 90445-06008 |
MS110,112..SAL,SDX,SPE NO.3,L=430,W/*AAC |
1 | ||
| 90445-06025 |
MS110,112..SAL,SDX,SPE NO.6,L=1200,W/*AAC |
1 | ||
| 90445-06003 |
MS110,112..SAL,SDX,SPE NO.2,L=270,W/*AAC |
1 | ||
| 90445-06019 |
MS110,112..SAL,SDX,SPE NO.5,L=1050,W/*AAC |
1 | ||
| 87293B - HOSE, NO.2 | ||||
| 90445-06018 |
MS110,112..SAL,SDX,SPE NO.10,L=730,W/*AAC |
1 | ||
| 90445-06016 |
MS110,112..SAL,SDX,SPE NO.9,L=1200,W/*AAC |
1 | ||
| 90445-06008 |
MS110,112..SAL,SDX,SPE NO.3,L=430,W/*AAC |
1 | ||
| 90445-06025 |
MS110,112..SAL,SDX,SPE NO.6,L=1200,W/*AAC |
1 | ||
| 90445-06003 |
MS110,112..SAL,SDX,SPE NO.2,L=270,W/*AAC |
1 | ||
| 90445-06019 |
MS110,112..SAL,SDX,SPE NO.5,L=1050,W/*AAC |
1 | ||
| 87293B - HOSE, NO.2 | ||||
| 90445-06018 |
MS110,112..SAL,SDX,SPE NO.10,L=730,W/*AAC |
1 | ||
| 90445-06016 |
MS110,112..SAL,SDX,SPE NO.9,L=1200,W/*AAC |
1 | ||
| 90445-06008 |
MS110,112..SAL,SDX,SPE NO.3,L=430,W/*AAC |
1 | ||
| 90445-06025 |
MS110,112..SAL,SDX,SPE NO.6,L=1200,W/*AAC |
1 | ||
| 90445-06003 |
MS110,112..SAL,SDX,SPE NO.2,L=270,W/*AAC |
1 | ||
| 90445-06019 |
MS110,112..SAL,SDX,SPE NO.5,L=1050,W/*AAC |
1 | ||
| 87293B - HOSE, NO.2 | ||||
| 90445-06018 |
MS110,112..SAL,SDX,SPE NO.10,L=730,W/*AAC |
1 | ||
| 90445-06016 |
MS110,112..SAL,SDX,SPE NO.9,L=1200,W/*AAC |
1 | ||
| 90445-06008 |
MS110,112..SAL,SDX,SPE NO.3,L=430,W/*AAC |
1 | ||
| 90445-06025 |
MS110,112..SAL,SDX,SPE NO.6,L=1200,W/*AAC |
1 | ||
| 90445-06003 |
MS110,112..SAL,SDX,SPE NO.2,L=270,W/*AAC |
1 | ||
| 90445-06019 |
MS110,112..SAL,SDX,SPE NO.5,L=1050,W/*AAC |
1 | ||
| 87293B - HOSE, NO.2 | ||||
| 90445-06018 |
MS110,112..SAL,SDX,SPE NO.10,L=730,W/*AAC |
1 | ||
| 90445-06016 |
MS110,112..SAL,SDX,SPE NO.9,L=1200,W/*AAC |
1 | ||
| 90445-06008 |
MS110,112..SAL,SDX,SPE NO.3,L=430,W/*AAC |
1 | ||
| 90445-06025 |
MS110,112..SAL,SDX,SPE NO.6,L=1200,W/*AAC |
1 | ||
| 90445-06003 |
MS110,112..SAL,SDX,SPE NO.2,L=270,W/*AAC |
1 | ||
| 90445-06019 |
MS110,112..SAL,SDX,SPE NO.5,L=1050,W/*AAC |
1 | ||
| 87690B - WAY, 3 | ||||
| 90413-03001 |
GS110,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE) W/*AAC OR *MPAAC |
1 | ||
| Common parts | ||||
| 90463-10336 | ||||
| 90463-15067 | ||||
| 90480-31005 | ||||
| 91656-40616 | ||||

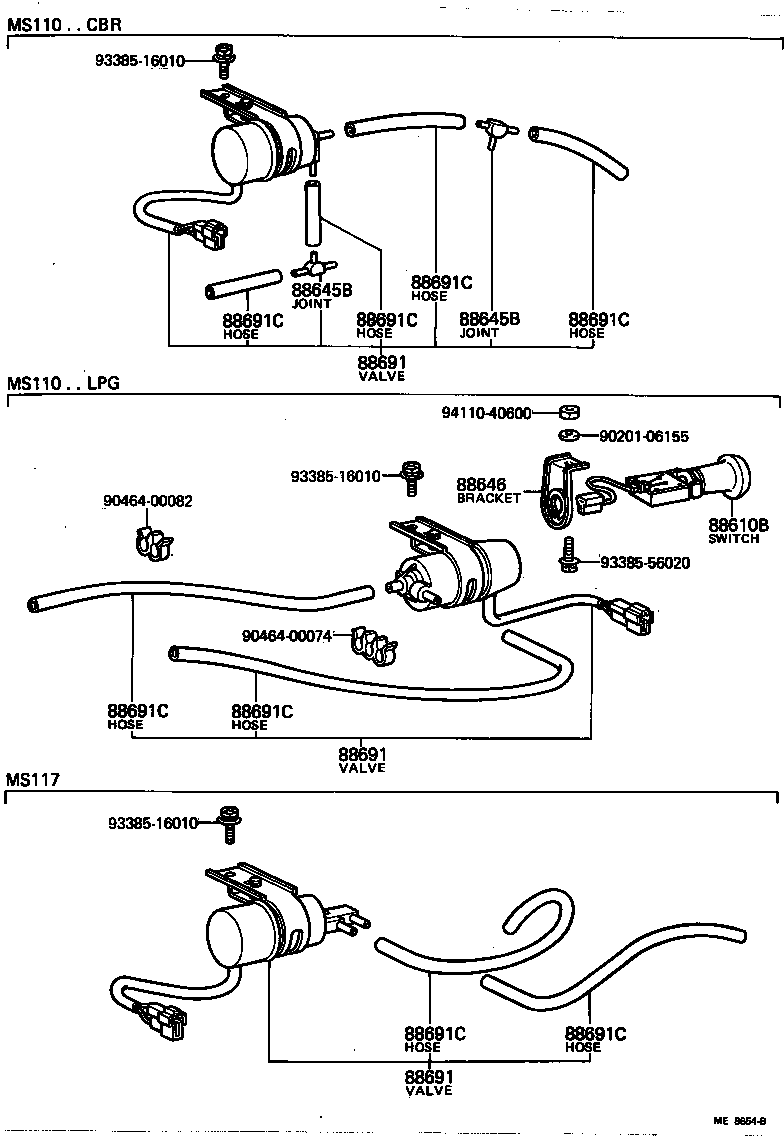

ILLUST NO. 2 OF 2(7909- )MS110,117..CBR,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
MS110..CBR |
2 | ||
| 88645B - JOINT, NO.1 (FOR IDLE UP DIVICE) | ||||
| 90413-04005 |
MS110..CBR |
2 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-30400 |
MS110..CBR |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-30400 |
MS110..CBR |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-30400 |
MS110..CBR |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-11630 |
MS110..CBR *H,L=50 |
2 | ||
| 95411-10830 |
MS110..CBR *H,L=40 |
2 | ||
| Common parts | ||||
| 90201-06155 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 93385-16010 | ||||
| 93385-56020 | ||||
| 94110-40600 | ||||
