MS110-SEBFS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

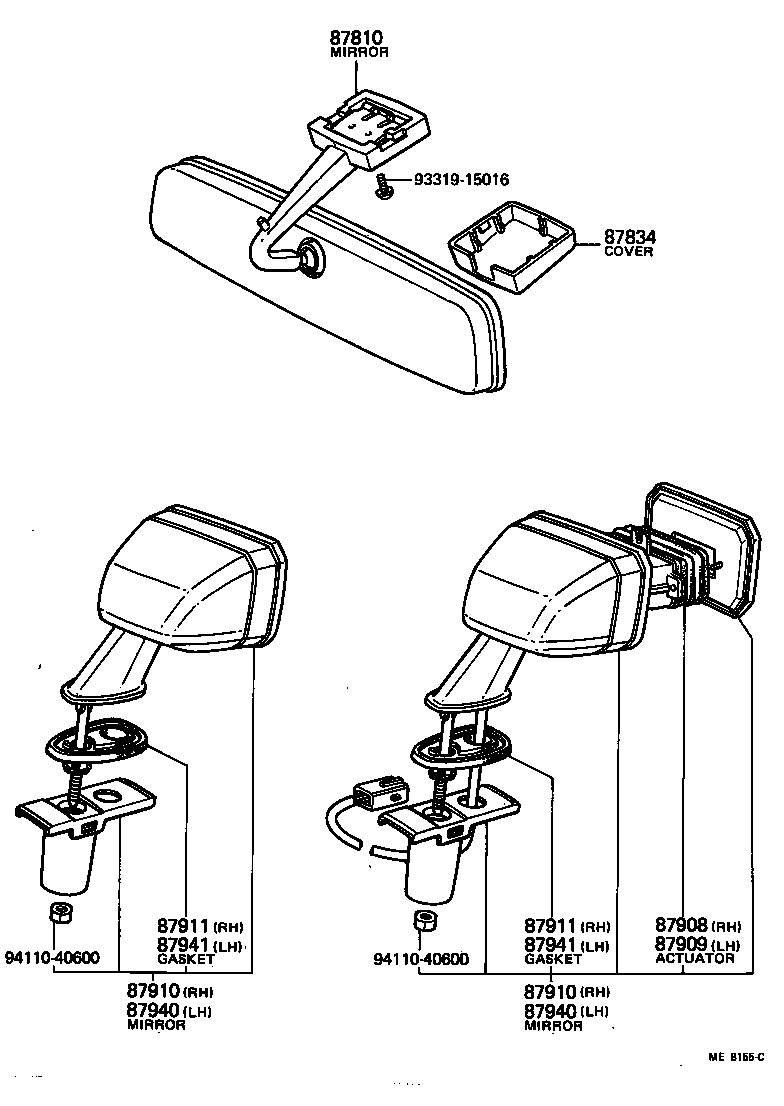

Click highlighted areas on diagram

diagram 87810 87834 87908 87909 87910 87910 87911 87911 87940 87940 87941 87941 9331915016 9411040600 9411040600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-3019002

LS11#,MS11#,RS110

DARK WINE,RED/MAROON,TRIM3#

 1
87810-3019005

LS11#,MS11#,RS110

GREIGE,BEIGE,TRIM4#

 1
87810-3019004

LS11#,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008004

LS11#,MS11#,RS110

BLUE,BLUE,TRIM8#

 1
87834-2008008

LS11#,MS11#,RS110

IVORY,IVORY,TRIM3#,4#

 1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87908-30021

GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87908-30021

GS110,LS110,111,MS110,112,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-39206

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

REMOTE CONTROL TYPE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-39206

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

REMOTE CONTROL TYPE

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-30070

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-30070

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-39166

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

REMOTE CONTROL TYPE

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-39166

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

REMOTE CONTROL TYPE

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-30040

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-30040

LS110,MS110,112,RS110..(SED,WG)..(BTP,DLX,ROY,SAL,SDX)

 1
Common parts
93319-15016
94110-40600
