MS110-SEBFS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )

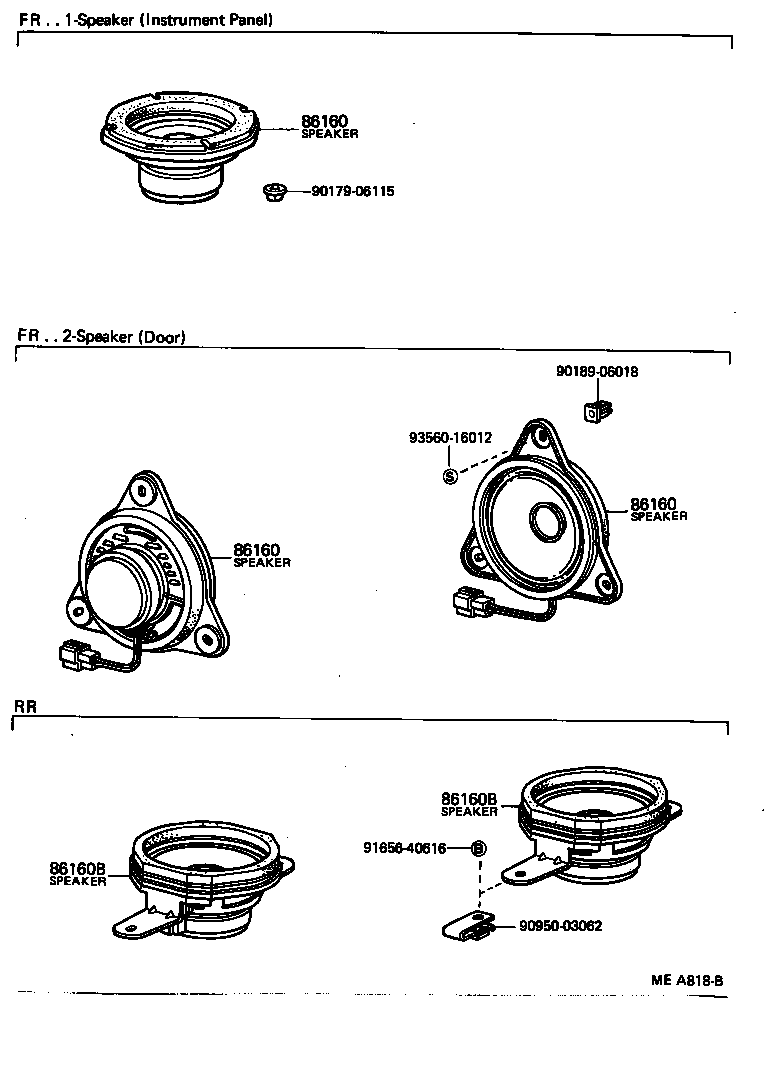

Click highlighted areas on diagram

diagram 86160 86160 86160 86160B 86160B 9017906115 9018906018 9095003062 9165640616 9356016012
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-30120

LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-30120

LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-30120

LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE

 2
86160B - SPEAKER ASSY, REAR
86160-30130

LS110,MS110..SDX,SPE

 2
86160-30140

LS110,MS110..SDX,SPE

W/ELECTORONIC SEARCH RADIO

 2
86160B - SPEAKER ASSY, REAR
86160-30130

LS110,MS110..SDX,SPE

 2
86160-30140

LS110,MS110..SDX,SPE

W/ELECTORONIC SEARCH RADIO

 2
Common parts
90179-06115
90189-06018
90950-03062
91656-40616
93560-16012
