MS110-SEBFS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )SED,V,WG

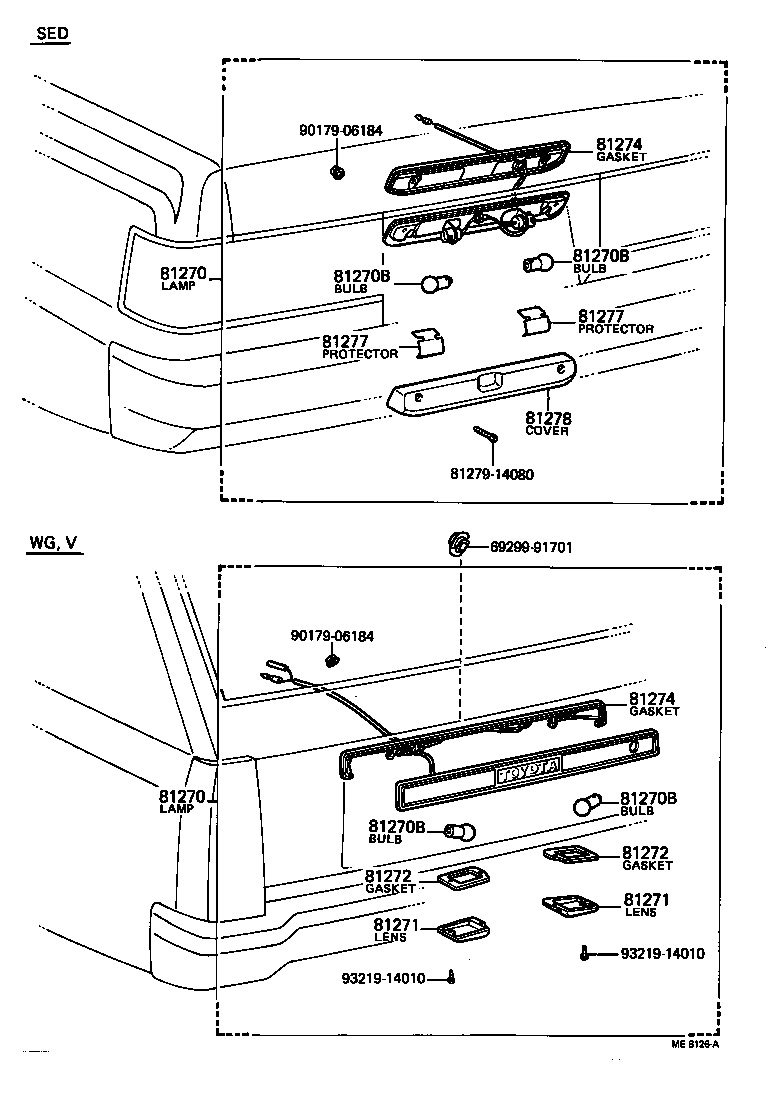

Click highlighted areas on diagram

diagram 6929991701 81270 81270 81270B 81270B 81270B 81270B 81271 81271 81272 81272 81274 81274 81277 81277 81278 8127914080 9017906184 9017906184 9321914010 9321914010
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-39155

LS110,MS110,112,RS110..SED

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-39155

LS110,MS110,112,RS110..SED

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

LS11#,MS11#,RS110

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

LS11#,MS11#,RS110

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

LS11#,MS11#,RS110

12V 7.5W,12V 7.5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11075

LS11#,MS11#,RS110

12V 7.5W,12V 7.5W

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-30090

GS110,LS110,111,MS110,112,RS110..SED

 1
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-30090

GS110,LS110,111,MS110,112,RS110..SED

 1
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-14080

GS110,LS110,111,MS110,112,RS110..SED

 2
81277 - SPACER, LICENSE PLATE LAMP RIM AND LENS
81277-14080

GS110,LS110,111,MS110,112,RS110..SED

 2
81278 - COVER, LICENSE PLATE LAMP
81276-30090

GS110,LS110,111,MS110,112,RS110..SED

 1
Common parts
69299-91701
81279-14080
90179-06184
93219-14010
