MS110-SEBFS (1979)
Toyota Crown

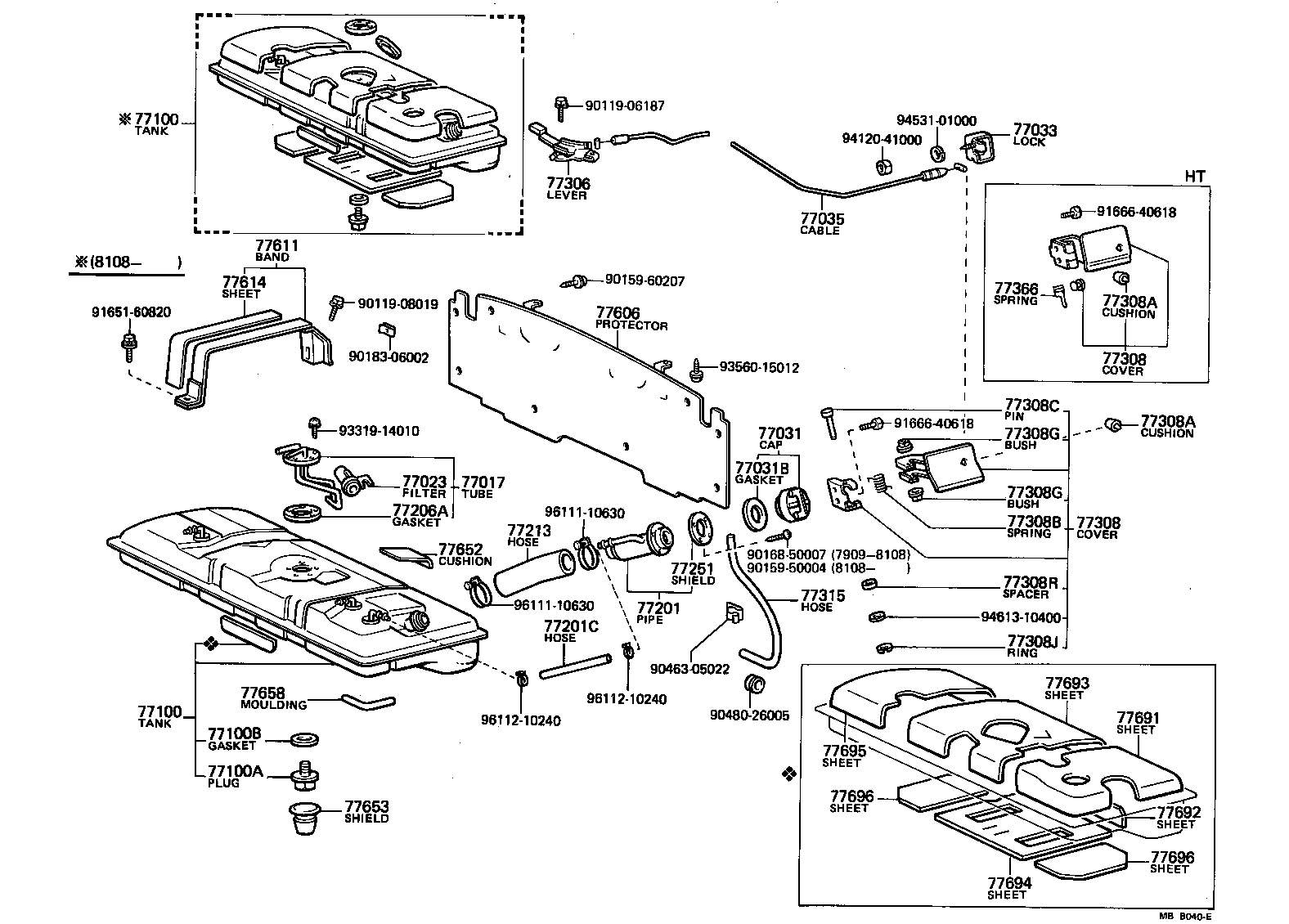

ILLUST NO. 1 OF 2(7909- )HT,SED..CBR,DSL,EFI,TBO,TD,TDE,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-30100 |
MS110..(HT,SED)..CBR |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12031 |
MS110..(HT,SED)..CBR |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
LS11#,MS11#..CBR,DSL,EFI,TBO |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LS11#,MS11#..CBR,DSL,EFI,TBO |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77033-14020 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-30040 |
GS110,LS110,111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30931 |
MS110..(HT,SED)..CBR |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30931 |
MS110..(HT,SED)..CBR |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-30130 |
LS110,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO) |
1 | ||
| 77201C - HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22015 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) 長さ=150 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-30030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-12010 |
GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-3002002 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 77051-3002004 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO) BLUE,BLUE,TRIM8# |
1 | ||
| 77051-3002005 |
LS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,DSL,EFI,TBO) GREIGE,BEIGE,TRIM4# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-30080 |
GS110,LS110,111,MS110,112..SED..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-30080 |
GS110,LS110,111,MS110,112..SED..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
GS110,LS110,111,MS110,112,RS110..SED |
2 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
GS110,LS110,111,MS110,112,RS110..SED |
2 | ||
| 77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER) | ||||
| 90508-16005 |
GS110,LS110,111,MS110,112,RS110..SED |
1 | ||
| 77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER) | ||||
| 90249-04069 |
GS110,LS110,111,MS110,112,RS110..SED |
1 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 90386-06001 |
GS110,LS110,111,MS110,112,RS110..SED |
2 | ||
| 77308G - BUSH(FOR FUEL INLET BOX COVER) | ||||
| 90386-06001 |
GS110,LS110,111,MS110,112,RS110..SED |
2 | ||
| 77308J - RING(FOR FUEL INLET BOX COVER) | ||||
| 96160-00300 |
GS110,LS110,111,MS110,112,RS110..SED |
1 | ||
| 77308R - SPACER(FOR FUEL INLET BOX COVER) | ||||
| 90561-04001 |
GS110,LS110,111,MS110,112,RS110..SED |
2 | ||
| 77315 - HOSE, FUEL FILLER OPENING | ||||
| 90446-09004 |
GS110,LS110,111,MS110,112,RS110..HT,SED |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-30090 |
GS110,LS110,111,MS110,112..SED..(BTP,DLX,SAL,SDX,STD,TAX)..(CBR,DSL,EFI,TBO,TD,TDE) |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-30070 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
2 | ||
| 77614 - SEAT, FUEL TANK BAND | ||||
| 77616-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30050 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
6 | ||
| 77653 - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-30020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-30030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
4 | ||
| Common parts | ||||
| 90119-06187 | ||||
| 90119-08019 | ||||
| 90159-50004 | ||||
| 90159-60207 | ||||
| 90168-50007 | ||||
| 90183-06002 | ||||
| 90463-05022 | ||||
| 90480-26005 | ||||
| 91651-60820 | ||||
| 91666-40618 | ||||
| 93319-14010 | ||||
| 93560-15012 | ||||
| 94120-41000 | ||||
| 94531-01000 | ||||
| 94613-10400 | ||||
| 96111-10630 | ||||
| 96112-10240 | ||||

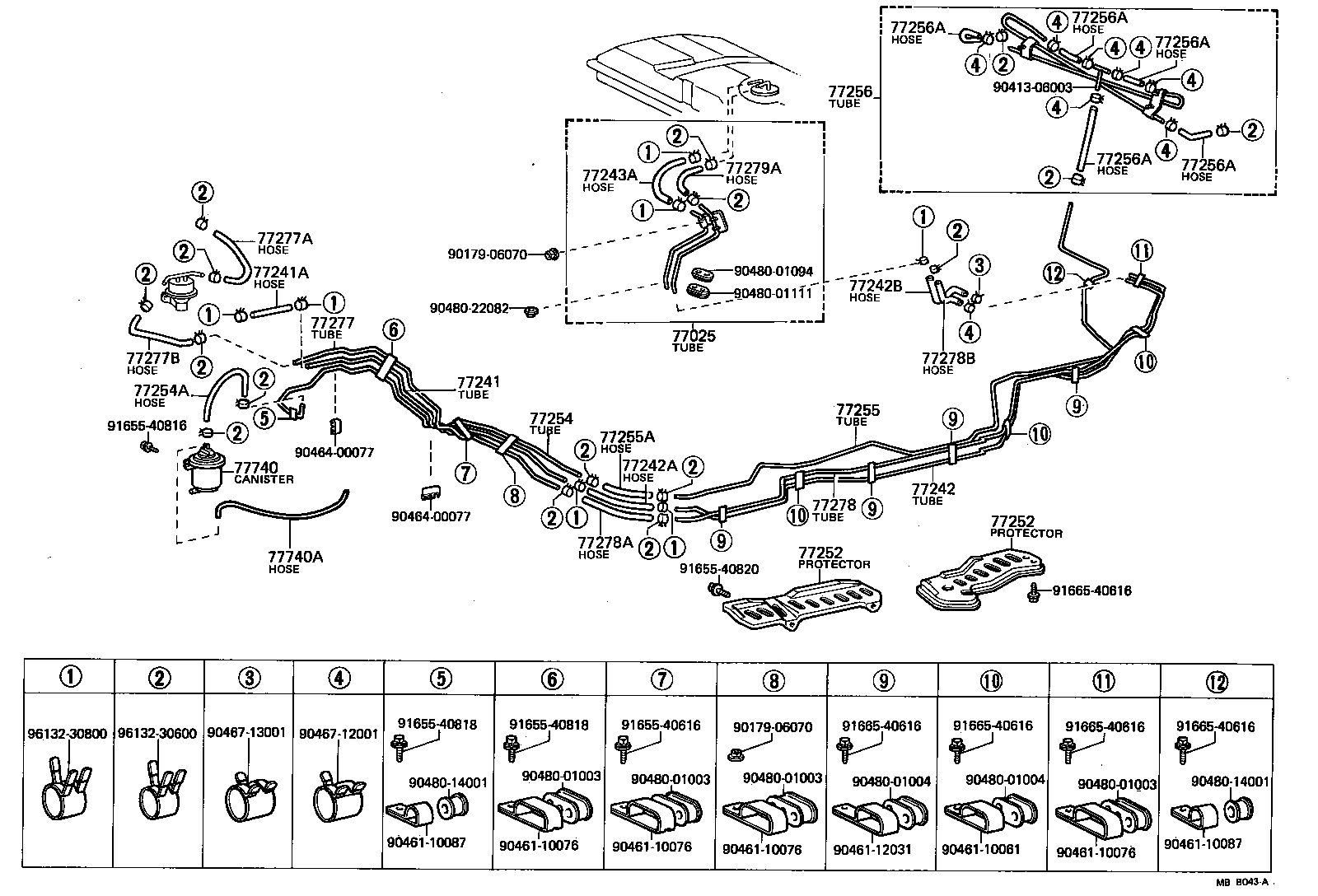

ILLUST NO. 2 OF 2(7909- )HT,SED..CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77025 - TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR | ||||
| 77025-30100 |
LS110,111,MS110..(HT,SED)..(CBR,DSL,TD,TDE) |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-30110 |
MS110,117..CBR |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
MS110,117..CBR *H,L=160,内径=7.6 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77253-30100 |
LS110,111,MS110..CBR,DSL,TD,TDE |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95335-08020 |
LS11#,MS110,117..CBR,DSL L=200 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 77259-30070 |
LS110,111,MS110..(HT,SED)..(CBR,DSL,TD,TDE) |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-08020 |
LS110,111,MS110..(HT,SED)..(CBR,DSL,TD,TDE) *H,L=190,内径=7.6 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-30030 |
GS11#,LS11#,MS11#,RS110 FR |
1 | ||
| 77267-30040 |
GS110,LS110,111,MS110,112,RS110 RR |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-30030 |
GS11#,LS11#,MS11#,RS110 FR |
1 | ||
| 77267-30040 |
GS110,LS110,111,MS110,112,RS110 RR |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-30030 |
GS11#,MS11#..CBR,EFI,TBO,TWC |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06060 |
GS11#,MS11#..CBR,EFI,TBO,TWC *H,L=440 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-30060 |
GS110,MS110,112..(HT,SED)..(CBR,EFI,TBO,TWC) |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
MS11# *H,L=170 |
1 | ||
| 95332-06020 |
MS11#..CBR,EFI *H,L=110 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77028-30060 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=150 |
1 | ||
| 95332-06010 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=80 |
1 | ||
| 95332-06030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=260 |
1 | ||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=140 |
2 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=150 |
1 | ||
| 95332-06010 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=80 |
1 | ||
| 95332-06030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=260 |
1 | ||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=140 |
2 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=150 |
1 | ||
| 95332-06010 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=80 |
1 | ||
| 95332-06030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=260 |
1 | ||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=140 |
2 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=150 |
1 | ||
| 95332-06010 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=80 |
1 | ||
| 95332-06030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=260 |
1 | ||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=140 |
2 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=150 |
1 | ||
| 95332-06010 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=80 |
1 | ||
| 95332-06030 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=260 |
1 | ||
| 95332-06020 |
GS110,LS110,111,MS110,112..(HT,SED)..(CBR,DSL,EFI,TBO,TD,TDE,TWC) *H,L=140 |
2 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77256-30060 |
MS110,117..CBR |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95332-06040 |
MS110,117..CBR *H,L=360 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
MS110,117..CBR *H,L=280 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77257-30080 |
LS110,111,MS110..CBR,DSL,TD,TDE |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-06020 |
LS11#,MS110,117..CBR,DSL *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 77279-30020 |
LS110,111,MS110..(HT,SED)..(CBR,DSL,TD,TDE) |
1 | ||
| 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) | ||||
| 95332-06020 |
LS110,111,MS110..(HT,SED)..(CBR,DSL,TD,TDE) *H,L=150 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-30070 |
GS11#,MS11#..CBR,EFI,TBO,TWC |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08200 |
MS110,117..CBR 外径=7.5,長さ=1050 |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90413-06003 | ||||
| 90461-10061 | ||||
| 90461-10076 | ||||
| 90461-10087 | ||||
| 90461-12031 | ||||
| 90464-00077 | ||||
| 90467-12001 | ||||
| 90467-13001 | ||||
| 90480-01003 | ||||
| 90480-01004 | ||||
| 90480-01094 | ||||
| 90480-01111 | ||||
| 90480-14001 | ||||
| 90480-22082 | ||||
| 91655-40616 | ||||
| 91655-40816 | ||||
| 91655-40818 | ||||
| 91655-40820 | ||||
| 91665-40616 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
