MS110-SEBFS (1979)
Toyota Crown

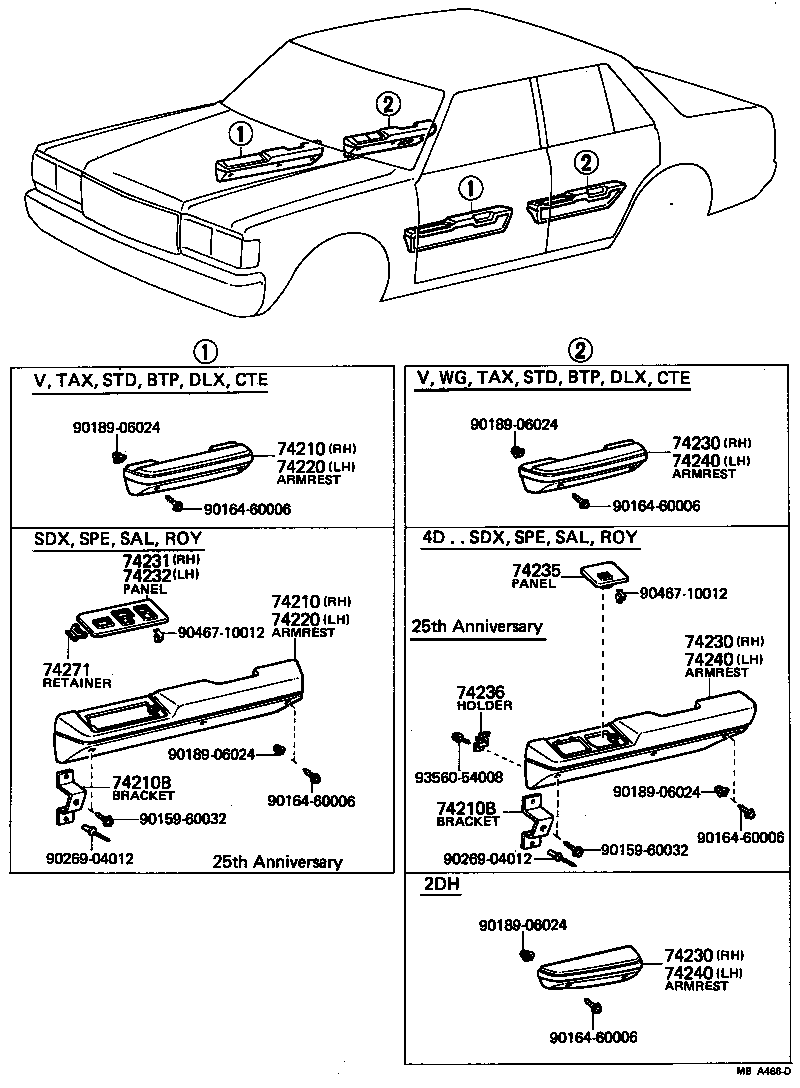

ILLUST NO. 1 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3013005 |
LS110,MS110,112..ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 74210-3013004 |
LS110,MS110,112..ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3013002 |
LS110,MS110,112..ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3013005 |
LS110,MS110,112..ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 74210-3013004 |
LS110,MS110,112..ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74210-3013002 |
LS110,MS110,112..ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74210B - BRACKET, ARMREST SET | ||||
| 67645-30010 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D |
4 | ||
| 74210B - BRACKET, ARMREST SET | ||||
| 67645-30010 |
GS110,LS110,111,MS110,112..(HT,SED)..(ROY,SAL,SDX,SPE)..4D |
4 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3009002 |
LS110,MS110,112..ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74220-3009005 |
LS110,MS110,112..ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 74220-3009004 |
LS110,MS110,112..ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-3009002 |
LS110,MS110,112..ROY,SAL,SDX,SPE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74220-3009005 |
LS110,MS110,112..ROY,SAL,SDX,SPE GREIGE,BEIGE,TRIM4# |
1 | ||
| 74220-3009004 |
LS110,MS110,112..ROY,SAL,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-3004005 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3004004 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3004002 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-3004005 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3004004 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3004002 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-3004005 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 74250-3004004 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 74250-3004002 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-30090 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 74231-22060 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-30090 |
LS110,MS110,112..ROY,SAL,SDX,SPE |
1 | ||
| 74235 - PANEL, REAR ARMREST BASE, UPPER | ||||
| 74271-30030 |
MS110,112..SED..(SAL,SDX) RH |
1 | ||
| 74272-30030 |
MS110,112..SED..(SAL,SDX) LH |
1 | ||
| 74236 - HOLDER, REAR ASH RECEPTACLE | ||||
| 74239-30030 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D |
2 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-3004002 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74260-3004005 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3004004 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-3004002 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74260-3004005 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3004004 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-3004002 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 74260-3004005 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D GREIGE,BEIGE,TRIM4# |
1 | ||
| 74260-3004004 |
LS110,MS110,112..(ROY,SAL,SDX,SPE)..4D BLUE,BLUE,TRIM8# |
1 | ||
| 74271 - RETAINER, DOOR ARMREST | ||||
| 74247-30010 |
GS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE |
2 | ||
| Common parts | ||||
| 90159-60032 | ||||
| 90164-60006 | ||||
| 90189-06024 | ||||
| 90269-04012 | ||||
| 90467-10012 | ||||
| 93560-54008 | ||||

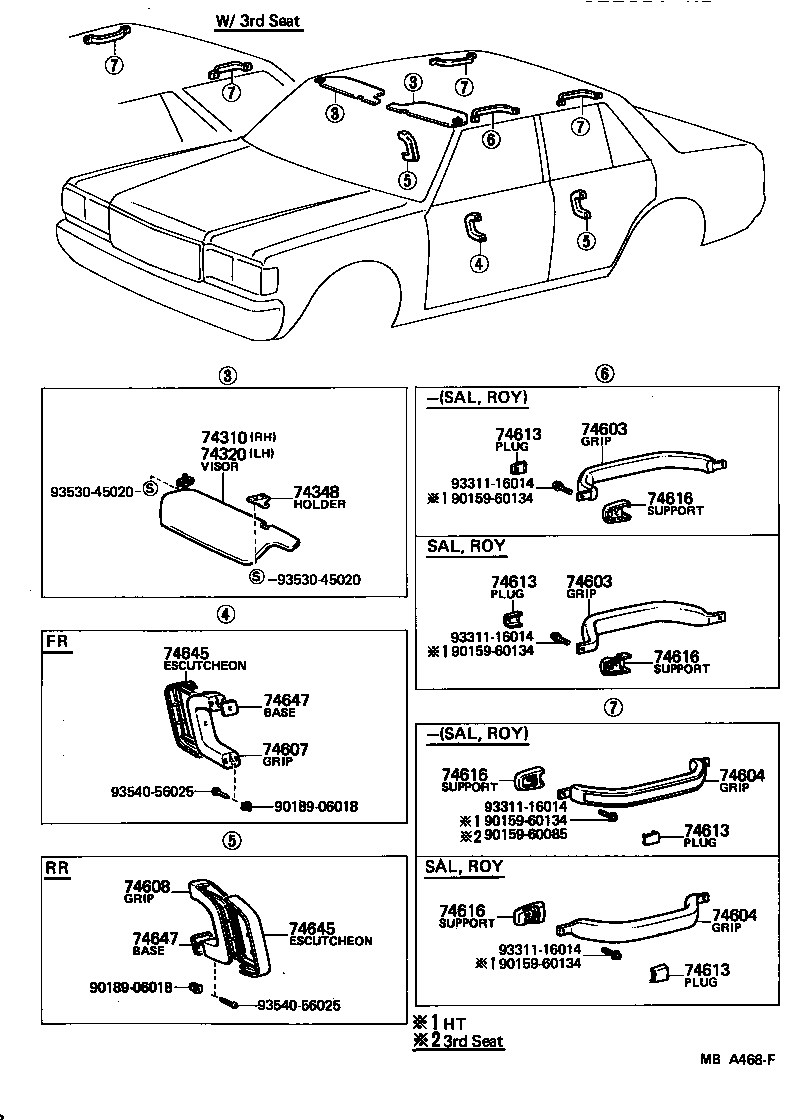

ILLUST NO. 2 OF 2(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-3017008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
1 | ||
| 74310-3017004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-3017004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74320-3017008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE IVORY,IVORY,TRIM4# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1201004 |
LS11#,MS11#,RS110 BLUE,BLUE,TRIM8# |
2 | ||
| 74348-1201008 |
LS11#,MS11#,RS110 IVORY,IVORY,TRIM3#,4# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-3005008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE IVORY,IVORY,TRIM4# |
1 | ||
| 74610-3005004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-3005008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE IVORY,IVORY,TRIM4# |
1 | ||
| 74610-3005004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE BLUE,BLUE,TRIM8# |
1 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-3005008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
2 | ||
| 74610-3005004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-3005008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
2 | ||
| 74610-3005004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
2 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74617-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74617-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74617-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74617-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74617-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74616 - SUPPORT, ASSIST GRIP PLATE | ||||
| 74671-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74671-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74616 - SUPPORT, ASSIST GRIP PLATE | ||||
| 74671-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74671-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74616 - SUPPORT, ASSIST GRIP PLATE | ||||
| 74671-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74671-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| 74616 - SUPPORT, ASSIST GRIP PLATE | ||||
| 74671-2201004 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX BLUE,BLUE,TRIM8# |
6 | ||
| 74671-2201008 |
LS11#,MS110,117,RS110..BTP,CTE,DLX,SDX,SPE,STD,TAX IVORY,IVORY,TRIM4# |
6 | ||
| Common parts | ||||
| 90159-60085 | ||||
| 90159-60134 | ||||
| 90189-06018 | ||||
| 93311-16014 | ||||
| 93530-45020 | ||||
| 93540-56025 | ||||
