MS110-SEBFS (1979)
Toyota Crown
Production
Sep 1979
-
Aug 1981
Engine
MU
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7909-8010)MS110,117,RS110..3H,4H

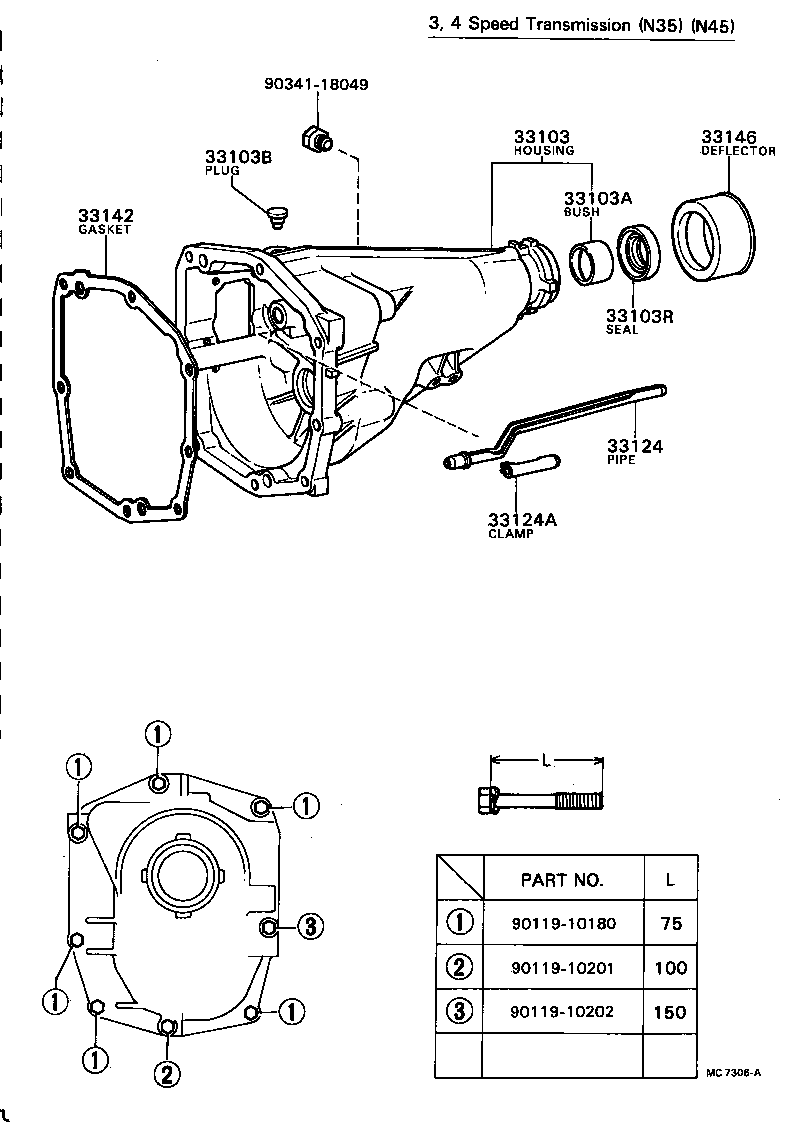

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-30140 |
MS110,117..4H |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73077 |
MS110,117,RS110..3H,4H |
1 | ||
| 90999-72023 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38140 |
MS110,117,RS110..3H,4H |
1 | ||
| 90311-38043 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33124 - PIPE, OIL RECEIVER(MTM) | ||||
| 33124-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33124A - CLAMP(FOR TRANSMISSION OIL RECEIVER PIPE) | ||||
| 90463-08036 |
MS110,117,RS110..3H,4H |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
GS11#,LS11#,MS11#,RS110..MTM |
1 | ||
| Common parts | ||||
| 90119-10012 | ||||
| 91611-61035 | ||||
(8010- )3H,4H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-30140 |
MS110,117..4H |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73077 |
MS110,117,RS110..3H,4H |
1 | ||
| 90999-72023 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03001 |
MS110,117,RS110..3H,4H |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38140 |
MS110,117,RS110..3H,4H |
1 | ||
| 90311-38043 |
LS11#,MS110,117,RS110..3H,4H |
1 | ||
| 33124 - PIPE, OIL RECEIVER(MTM) | ||||
| 33124-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33124A - CLAMP(FOR TRANSMISSION OIL RECEIVER PIPE) | ||||
| 90463-08036 |
MS110,117,RS110..3H,4H |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-30040 |
MS110,117,RS110..3H,4H |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
GS11#,LS11#,MS11#,RS110..MTM |
1 | ||
| Common parts | ||||
| 90119-10180 | ||||
| 90119-10201 | ||||
| 90119-10202 | ||||
| 90341-18049 | ||||
