MS110-SEBFS (1979)

Toyota Crown

Production Sep 1979 - Aug 1981
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MEU,MJ,5MEU,MTEU,MU

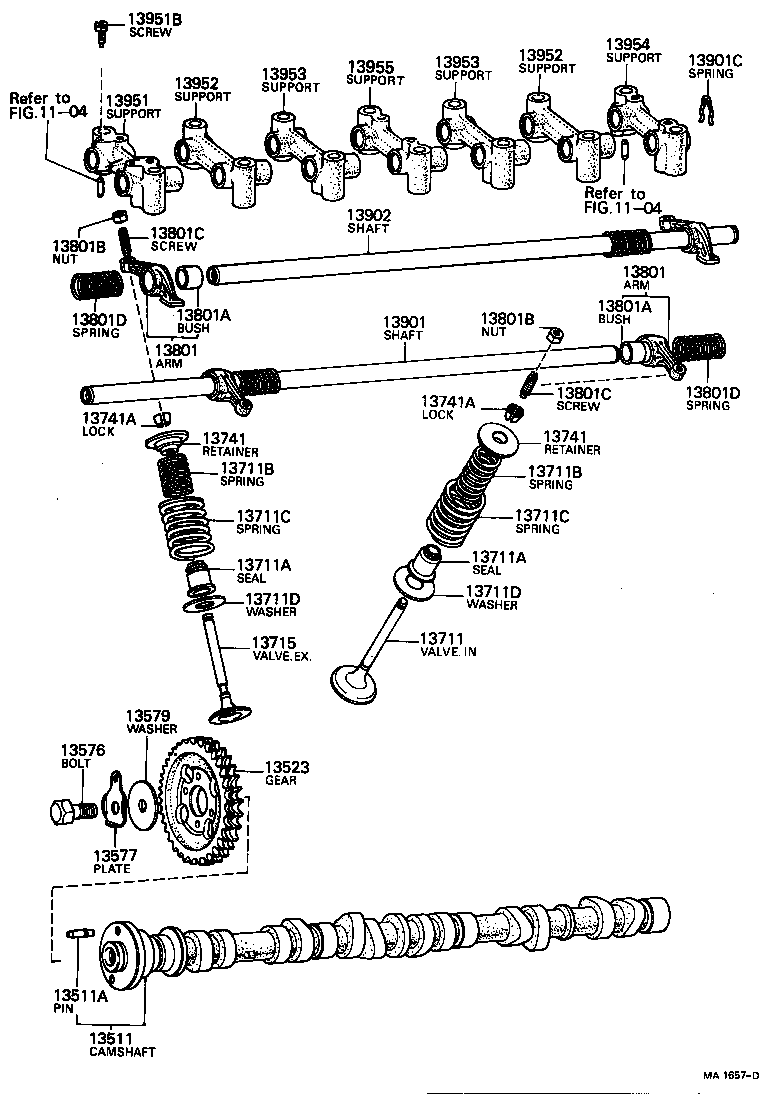

Click highlighted areas on diagram

diagram 1104 1104 13511 13511A 13523 13576 13577 13579 13711 13711A 13711A 13711B 13711B 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13801 13801 13801A 13801A 13801B 13801B 13801C 13801C 13801D 13801D 13901 13901C 13902 13951 13951B 13952 13952 13953 13953 13954 13955
Part # Description Qty Price
13511 - CAMSHAFT
13501-41031

MEU,MJ,MTEU,MU..MS110,117

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90249-08042

MEU,MJ,5MEU,MTEU,MU..MS11#

長さ=23,外径=8,L=23,OD=8

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-43010

MEU,MJ,5MEU,MTEU,MU..MS11#

N=40

 1
13576 - BOLT, CAMSHAFT TIMING GEAR
13576-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13577 - PLATE, LOCK
13577-41010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13579 - WASHER, CAMSHAFT TIMING GEAR BOLT
90201-16328

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13711 - VALVE, INTAKE
13711-45010

MEU,MJ,MTEU,MU..MS110,117

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02015

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST

 6
90913-02022

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02015

MEU,MJ,5MEU,MTEU,MU..MS11#

EXHAUST

 6
90913-02022

MEU,MJ,5MEU,MTEU,MU..MS11#

INTAKE

 6
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26001

MEU,MJ,5MEU,MTEU,MU..MS11#

WD=2.6,CW=7.75

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26001

MEU,MJ,5MEU,MTEU,MU..MS11#

WD=2.6,CW=7.75

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45002

MEU,MJ,5MEU,MTEU,MU..MS11#

WD=4.5,CW=6.2

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-45002

MEU,MJ,5MEU,MTEU,MU..MS11#

WD=4.5,CW=6.2

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-14310

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-14310

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13715 - VALVE, EXHAUST
13715-45010

MEU,MJ,5MEU,MU..MS11#..CBR,EFI

 6
13741 - RETAINER, VALVE SPRING
13741-41010

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13741 - RETAINER, VALVE SPRING
13741-41010

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

MEU,MJ,5M#,MTEU,MU..MS11#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03005

MEU,MJ,5M#,MTEU,MU..MS11#

 24
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-41051

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-41051

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM)
90999-73076

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801A - BUSH, BIMETAL FORMED(FOR ROCKER ARM)
90999-73076

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08210

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801B - NUT, HEXAGON(FOR VALVE ADJUSTING)
90170-08210

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801C - SCREW, VALVE ADJUSTING
90913-05016

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801C - SCREW, VALVE ADJUSTING
90913-05016

MEU,MJ,5MEU,MTEU,MU..MS11#

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14013

MEU,MJ,5MEU,MTEU,MU..MS11#

WD=1.4,CW=9

 12
13801D - SPRING, COMPRESSION(FOR ROCKER ARM)
90501-14013

MEU,MJ,5MEU,MTEU,MU..MS11#

WD=1.4,CW=9

 12
13901 - SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13901-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13901C - SPRING, RETAINER(FOR VALVE ROCKER SHAFT)
90524-15008

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
13902 - SHAFT SUB-ASSY, VALVE ROCKER, NO.2
13902-45011

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13951 - SUPPORT, VALVE ROCKER, NO.1
13951-45011

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13951B - SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
90109-06014

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
13952 - SUPPORT, VALVE ROCKER, NO.2
13952-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-45011

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
13953 - SUPPORT, VALVE ROCKER, NO.3
13953-45011

MEU,MJ,5MEU,MTEU,MU..MS11#

 2
13954 - SUPPORT, VALVE ROCKER, NO.4
13954-45012

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
13955 - SUPPORT, VALVE ROCKER, NO.5
13955-45010

MEU,MJ,5MEU,MTEU,MU..MS11#

 1
Linked diagrams
1104
