MS110-SEBBS (1979)
Toyota Crown

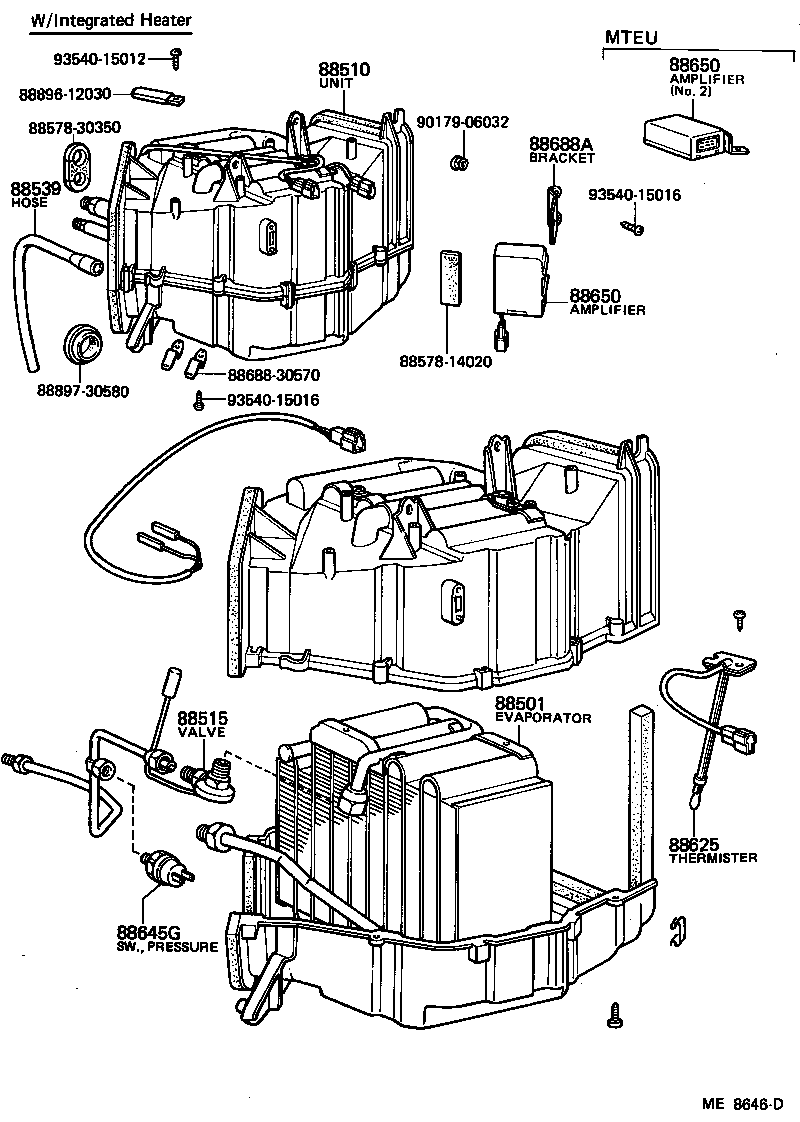

ILLUST NO. 1 OF 3(7909- )BTP,CTE,DLX,SAL,SDX,SPE,STD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30540 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88501-30550 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 88501-30570 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30790 |
GS110,LS111,MS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) RR |
1 | ||
| 88510-30740 |
GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO) FR |
1 | ||
| 88510-30790 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO) RR |
1 | ||
| 88510-30780 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-95400 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88515-30310 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88515-30320 |
GS11#,MS11#..CBR,EFI,TBO,TWC |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30560 |
MS110..BTP,STD;MS110..DLX..LPG W/DASH TYPE COOLER |
1 | ||
| 88539-30530 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60020 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-22020 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD W/AIR CONDITIONER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30410 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30410 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-30650 |
GS110,LS111,MS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) RR |
1 | ||
| Common parts | ||||
| 88578-14020 | ||||
| 88578-30350 | ||||
| 88688-30570 | ||||
| 88896-12030 | ||||
| 88897-30580 | ||||
| 90179-06032 | ||||
| 93540-15012 | ||||
| 93540-15016 | ||||

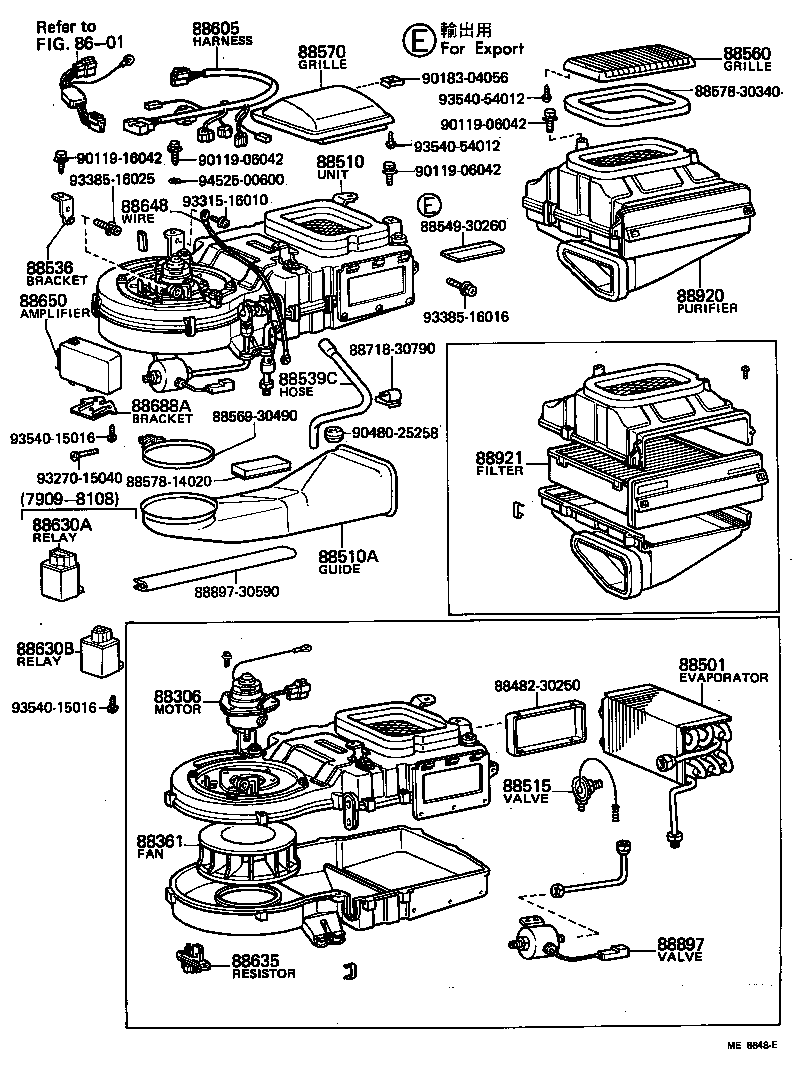

ILLUST NO. 2 OF 3(7909- )LS111..4DH ; (7909- )HT,SED..BTP,CTE,DLX,SAL,SDX,SPE,STD..CBR,EFI,TBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-60030 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88550-30310 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-10010 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88541-30270 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30540 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88501-30550 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD |
1 | ||
| 88501-30570 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30790 |
GS110,LS111,MS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) RR |
1 | ||
| 88510-30740 |
GS11#,MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO) FR |
1 | ||
| 88510-30790 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO) RR |
1 | ||
| 88510-30780 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88510A - GUIDE, COOLER AIR | ||||
| 88576-30680 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) RR COOLER |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-95400 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88515-30310 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88515-30320 |
GS11#,MS11#..CBR,EFI,TBO,TWC |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-30660 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88536-30710 |
MS110..BTP,STD;MS110..DLX..LPG W/DASH TYPE COOLER |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-30540 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-3030001 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) BLACK,BLACK |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-30600 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88570-30610 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30260 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
1 | ||
| 88608-30280 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 88608-30330 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD W/AIR CONDITIONER |
1 | ||
| 88630-30360 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
1 | ||
| 90987-02001 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD W/AIR CONDITIONER |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-30370 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 87138-30290 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88635-30370 |
RS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX W/DASH TYPE COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30480 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 88648-30500 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30410 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-30650 |
GS110,LS111,MS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) RR |
1 | ||
| 88897 - VALVE, COOLER MAGNET | ||||
| 88897-30570 |
GS110,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TWC) L=92.5,RR COOLER |
1 | ||
| 88691-30440 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) L=80,RR COOLER |
1 | ||
| 88920 - PURIFIER ASSY, AIR | ||||
| 88920-30040 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) |
1 | ||
| 88920-30041 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88921 - FILTER, AIR PURIFIER, NO.1 | ||||
| 88926-30071 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) |
1 | ||
| 88926-30070 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) |
1 | ||
| Common parts | ||||
| 88482-30250 | ||||
| 88549-30260 | ||||
| 88569-30490 | ||||
| 88578-14020 | ||||
| 88578-30340 | ||||
| 88718-30790 | ||||
| 88897-30590 | ||||
| 90119-06042 | ||||
| 90119-16042 | ||||
| 90183-04056 | ||||
| 90480-25258 | ||||
| 93270-15040 | ||||
| 93315-16010 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93540-15016 | ||||
| 93540-54012 | ||||
| 94525-00600 | ||||
| Linked diagrams | ||||
| 8601 | ||||

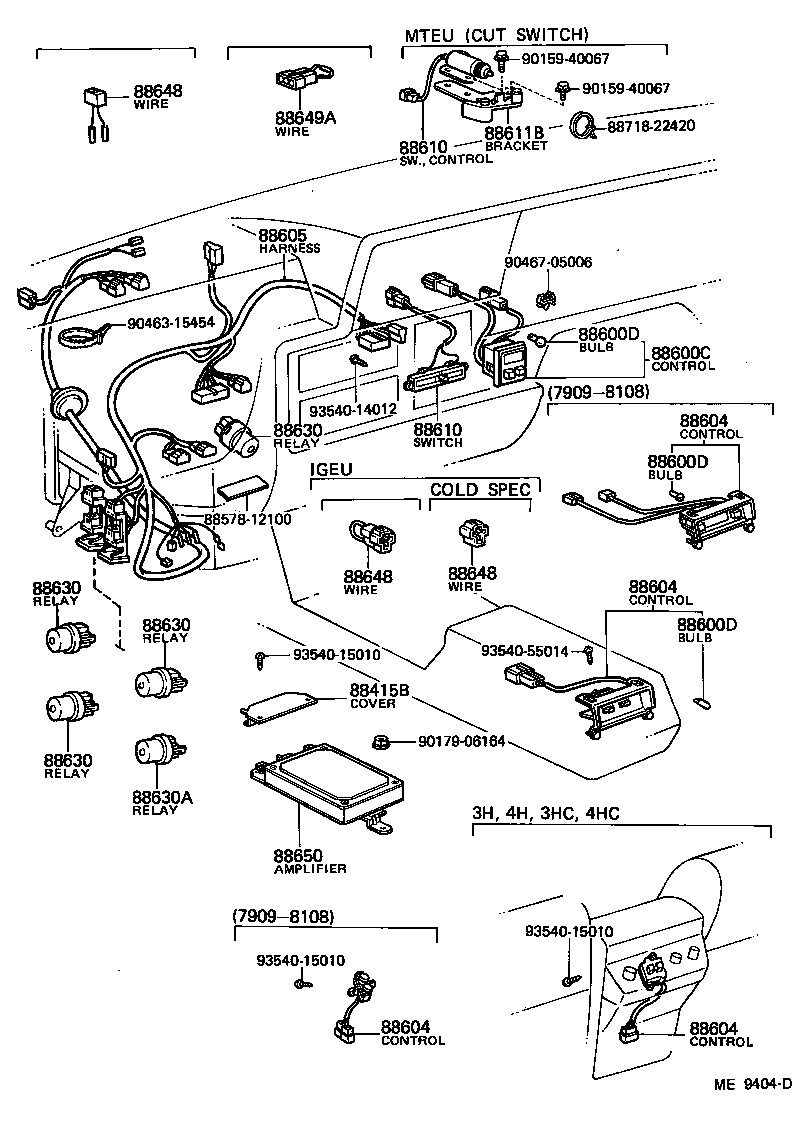

ILLUST NO. 3 OF 3(7909- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88600C - PANEL ASSY, CONTROL | ||||
| 88600-30580 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) W/RR COOLER |
1 | ||
| 88600-30650 |
GS110,LS111,MS110..(HT,SED)..(BTP,CTE,DLX,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE) W/RR COOLER |
1 | ||
| 88600D - BULB, CONTROL PANEL | ||||
| 90981-11018 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 88600D - BULB, CONTROL PANEL | ||||
| 90981-11018 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 88600D - BULB, CONTROL PANEL | ||||
| 90981-11018 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) 12V 1.2W ｿｹｯﾄ無し |
4 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS110,112..(HT,SED)..(3HC,4H,4HC)..(CBR,EFI) W/RR COOLER |
1 | ||
| 88600-30630 |
GS110,MS110,112..(HT,SED)..(4H,4HC)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/RR COOLER |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS110,112..(HT,SED)..(3HC,4H,4HC)..(CBR,EFI) W/RR COOLER |
1 | ||
| 88600-30630 |
GS110,MS110,112..(HT,SED)..(4H,4HC)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/RR COOLER |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS110,112..(HT,SED)..(3HC,4H,4HC)..(CBR,EFI) W/RR COOLER |
1 | ||
| 88600-30630 |
GS110,MS110,112..(HT,SED)..(4H,4HC)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/RR COOLER |
1 | ||
| 88604 - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88600-30600 |
MS110,112..(HT,SED)..(3HC,4H,4HC)..(CBR,EFI) W/RR COOLER |
1 | ||
| 88600-30630 |
GS110,MS110,112..(HT,SED)..(4H,4HC)..(BTP,DLX,ROY,SAL,SDX)..(CBR,EFI,TWC) W/RR COOLER |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-30260 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
1 | ||
| 88608-30280 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 88608-30330 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-60040 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 84660-30020 |
GS110,LS110,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-60040 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 84660-30020 |
GS110,LS110,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
1 | ||
| 90987-03001 |
GS11#,LS11#,MS110,117,RS110..CBR,DSL,EFI,LPG,TD,TDE |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
1 | ||
| 90987-03001 |
GS11#,LS11#,MS110,117,RS110..CBR,DSL,EFI,LPG,TD,TDE |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
1 | ||
| 90987-03001 |
GS11#,LS11#,MS110,117,RS110..CBR,DSL,EFI,LPG,TD,TDE |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
LS11#,MS11#,RS110..BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX |
1 | ||
| 90987-03001 |
GS11#,LS11#,MS110,117,RS110..CBR,DSL,EFI,LPG,TD,TDE |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
GS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD W/AIR CONDITIONER |
1 | ||
| 88630-30360 |
MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO) RR COOLER |
1 | ||
| 90987-02001 |
LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD W/AIR CONDITIONER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30480 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 88648-30500 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30480 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 88648-30500 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-30480 |
MS110..(BTP,STD)..CBR W/DASH TYPE COOLER |
1 | ||
| 88648-30500 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| 88649A - WIRING, COOLER, NO.3 | ||||
| 88648-30510 |
GS110,MS110..(HT,SED)..(4H,4HC)..(BTP,DLX,SAL,SDX)..(CBR,EFI) W/RR COOLER |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-30410 |
GS110,LS111,MS110,112..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TBO,TD,TDE,TWC) RR COOLER |
1 | ||
| Common parts | ||||
| 88578-12100 | ||||
| 88718-22420 | ||||
| 90159-40067 | ||||
| 90179-06164 | ||||
| 90463-15454 | ||||
| 90467-05006 | ||||
| 93540-14012 | ||||
| 93540-15010 | ||||
| 93540-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
