MS110-SEBBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909-8108)SED,V,WG..CBR,DSL,EFI,LPG

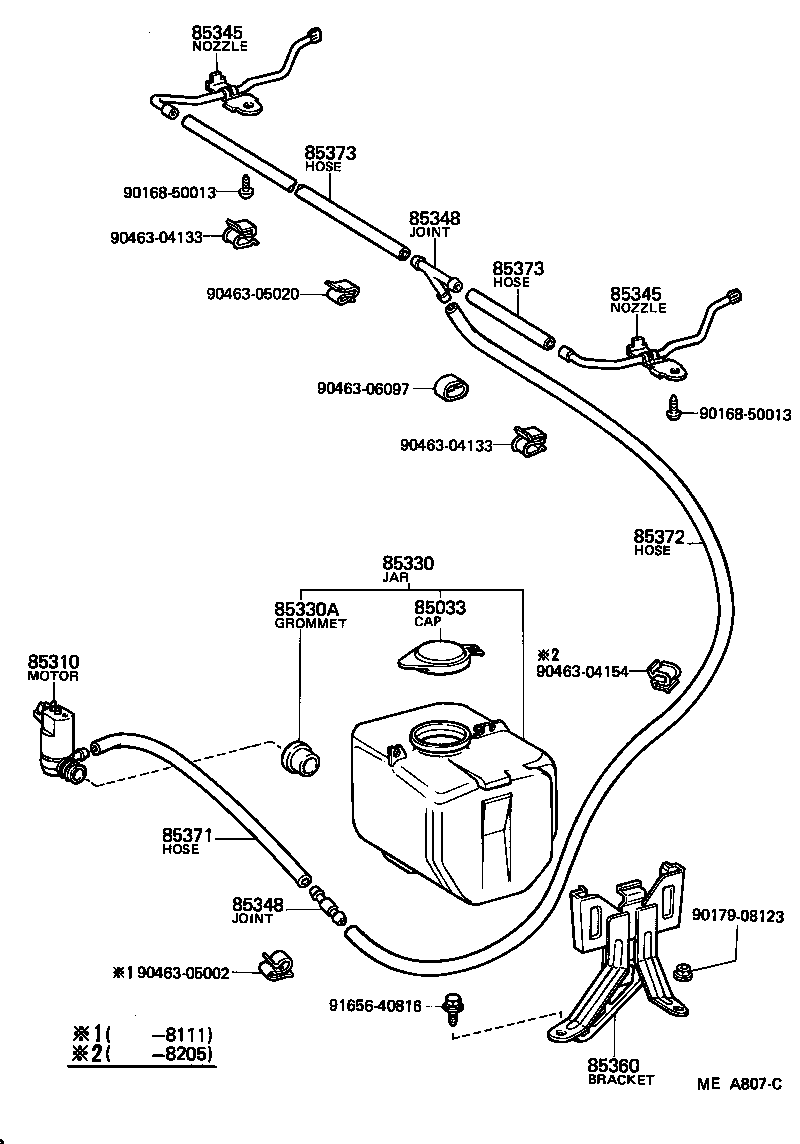

Click highlighted areas on diagram

diagram 85033 85310 85330 85330A 85345 85345 85348 85348 85355 85360 85371 85371 85372 85373 85373 9016850013 9016850013 9046304133 9046304133 9046304154 9046305020 9046306097 9165140612
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

LS11#,MS110,112,RS110..CBR,DSL,EFI,LPG

 1
85332-16010

GS11#,LS11#,MS11#,RS110

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

GS110,LS11#,MS11#,RS110

 1
85310-22080

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

 1
85310-20100

LS11#,MS11#,RS110

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-30110

LS11#,MS11#,RS110..(SED,V,WG)..(CBR,DSL,EFI,LPG)

 1
85330-30150

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GS11#,LS11#,MS11#,RS110

 1
90099-32089

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-30060

LS11#,MS11#,RS110

LH

 1
85346-30070

GS11#,LS11#,MS11#,RS110

LH

 1
85345-30060

LS11#,MS11#,RS110

RH

 1
85345-30070

GS11#,LS11#,MS11#,RS110

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-30060

LS11#,MS11#,RS110

LH

 1
85346-30070

GS11#,LS11#,MS11#,RS110

LH

 1
85345-30060

LS11#,MS11#,RS110

RH

 1
85345-30070

GS11#,LS11#,MS11#,RS110

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

LS110,117,MS11#,RS110

2 WAY

 2
85355-14010

GS11#,LS11#,MS11#,RS110

3 WAY

 1
85355-87201

GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC

2 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

LS110,117,MS11#,RS110

2 WAY

 2
85355-14010

GS11#,LS11#,MS11#,RS110

3 WAY

 1
85355-87201

GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC

2 WAY

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85031-30010

LS11#,MS11#,RS110

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-30100

LS11#,MS11#,RS110..(SED,V,WG)..(CBR,DSL,EFI,LPG)

 1
85036-30050

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

LS11#,MS11#,RS110

*H,L=400,NO.2

 1
90446-06013

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

*H,L=220

 1
90099-33299

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

*H,L=400,NO.1

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

LS11#,MS11#,RS110

*H,L=400,NO.2

 1
90446-06013

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

*H,L=220

 1
90099-33299

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

*H,L=400,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07005

LS11#,MS11#,RS110

*H,L=1200

 1
90099-33368

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

*H,L=950

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LS11#,MS11#,RS110

*H,L=80

 1
90446-06013

GS11#,LS11#,MS11#,RS110

長さ=450

 1
90446-06013

GS11#,LS11#,MS11#,RS110

*H,L=60

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LS11#,MS11#,RS110

*H,L=80

 1
90446-06013

GS11#,LS11#,MS11#,RS110

長さ=450

 1
90446-06013

GS11#,LS11#,MS11#,RS110

*H,L=60

 1
Common parts
90168-50013
90463-04133
90463-04154
90463-05020
90463-06097
91651-40612

(8108- )CBR,DSL,EFI,TBO,TD,TDE,TWC

Click highlighted areas on diagram

diagram 85033 85310 85330 85330A 85345 85345 85348 85348 85360 85371 85372 85373 85373 9016850013 9016850013 9017908123 9046304133 9046304133 9046304154 9046305002 9046305020 9046306097 9165640816
Part # Description Qty Price
85033 - CAP ASSY, WINDSHIELD WASHER
85332-16010

LS11#,MS110,112,RS110..CBR,DSL,EFI,LPG

 1
85332-16010

GS11#,LS11#,MS11#,RS110

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85310-22080

GS110,LS11#,MS11#,RS110

 1
85310-22080

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

 1
85310-20100

LS11#,MS11#,RS110

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85330-30110

LS11#,MS11#,RS110..(SED,V,WG)..(CBR,DSL,EFI,LPG)

 1
85330-30150

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

GS11#,LS11#,MS11#,RS110

 1
90099-32089

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-30060

LS11#,MS11#,RS110

LH

 1
85346-30070

GS11#,LS11#,MS11#,RS110

LH

 1
85345-30060

LS11#,MS11#,RS110

RH

 1
85345-30070

GS11#,LS11#,MS11#,RS110

RH

 1
85345 - NOZZLE, WINDSHIELD WASHER
85346-30060

LS11#,MS11#,RS110

LH

 1
85346-30070

GS11#,LS11#,MS11#,RS110

LH

 1
85345-30060

LS11#,MS11#,RS110

RH

 1
85345-30070

GS11#,LS11#,MS11#,RS110

RH

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

LS110,117,MS11#,RS110

2 WAY

 2
85355-14010

GS11#,LS11#,MS11#,RS110

3 WAY

 1
85355-87201

GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC

2 WAY

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85355-87201

LS110,117,MS11#,RS110

2 WAY

 2
85355-14010

GS11#,LS11#,MS11#,RS110

3 WAY

 1
85355-87201

GS11#,LS110,117,MS11#..CBR,DSL,EFI,TBO,TWC

2 WAY

 1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-30100

LS11#,MS11#,RS110..(SED,V,WG)..(CBR,DSL,EFI,LPG)

 1
85036-30050

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33299

LS11#,MS11#,RS110

*H,L=400,NO.2

 1
90446-06013

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

*H,L=220

 1
90099-33299

LS11#,MS11#,RS110..CBR,DSL,EFI,LPG

*H,L=400,NO.1

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07005

LS11#,MS11#,RS110

*H,L=1200

 1
90099-33368

GS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC

*H,L=950

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LS11#,MS11#,RS110

*H,L=80

 1
90446-06013

GS11#,LS11#,MS11#,RS110

長さ=450

 1
90446-06013

GS11#,LS11#,MS11#,RS110

*H,L=60

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90446-06013

LS11#,MS11#,RS110

*H,L=80

 1
90446-06013

GS11#,LS11#,MS11#,RS110

長さ=450

 1
90446-06013

GS11#,LS11#,MS11#,RS110

*H,L=60

 1
Common parts
90168-50013
90179-08123
90463-04133
90463-04154
90463-05002
90463-05020
90463-06097
91656-40816
