MS110-SEBBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MEU,MJ,5MEU,MTEU,MU

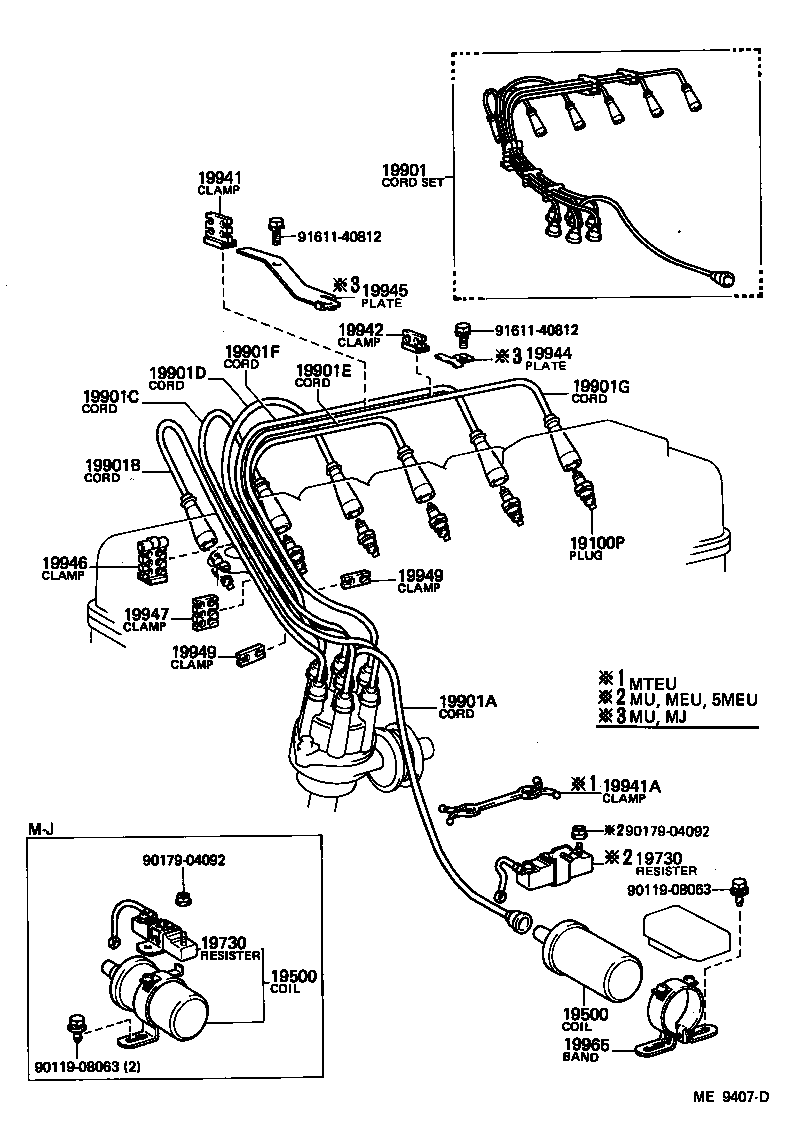

Click highlighted areas on diagram

diagram 19100P 19500 19500 19730 19730 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19941A 19942 19944 19945 19946 19947 19949 19949 19965 9011908063 9011908063 9017904092 9017904092 9161140812 9161140812
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01065

MEU,MJ,5MEU,MU..MS11#..CBR,EFI

W14EXR−U,W14EXR-U(DENSO),COLD SPEC

 6
90919-01102

MEU,MJ,5MEU,MU..MS11#..CBR,EFI

BPR5EY,BPR5EY(NGK)

 6
90919-01064

MEU,MJ,5MEU,MU..MS11#..CBR,EFI

W16EXR−U,W16EXR-U(DENSO)

 6
90919-01103

MEU,MJ,5MEU,MU..MS11#..CBR,EFI

BPR4EY,BPR4EY(NGK)

 6
19500 - COIL ASSY, IGNITION
90919-02083

MEU,5MEU,MU..MS110,112..CBR,EFI

 1
19500 - COIL ASSY, IGNITION
90919-02083

MEU,5MEU,MU..MS110,112..CBR,EFI

 1
19730 - RESISTOR, IGNITION COIL
90919-04017

MEU,5MEU,MU..MS110,112..CBR,EFI

 1
19730 - RESISTOR, IGNITION COIL
90919-04017

MEU,5MEU,MU..MS110,112..CBR,EFI

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21064

MEU,MJ,5MEU,MU..MS11#

 1
90919-21261

MEU,MJ,5MEU,MU..MS11#

 1
19901A - CORD, COIL RESISTIVE
90919-13039

MEU,MJ,5MEU,MU..MS11#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12180

MEU,MJ,5MEU,MU..MS11#

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12181

MEU,MJ,5MEU,MU..MS11#

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12182

MEU,MJ,5MEU,MU..MS11#

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12183

MEU,MJ,5MEU,MU..MS11#

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-12184

MEU,MJ,5MEU,MU..MS11#

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-12185

MEU,MJ,5MEU,MU..MS11#

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00068

MEU,MJ,5MEU,MU..MS11#

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00069

MEU,MJ,5MEU,MU..MS11#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-45021

MJ,MU..MS110,117

 1
19945 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.3
19943-41030

MJ,MU..MS110,117

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00070

MEU,MJ,5MEU,MU..MS11#

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00071

MEU,MJ,5MEU,MU..MS11#

 1
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

MEU,MJ,5MEU,MU..MS11#

 2
19949 - CLAMP, RESISTIVE CORD, NO.5
90464-00116

MEU,MJ,5MEU,MU..MS11#

 2
19965 - BAND, IGNITION COIL, NO.1
90919-03066

MEU,5MEU,MU..MS110,112

 1
90919-03066

5MEU,MU..MS11#

 1
Common parts
90119-08063
90179-04092
91611-40812
