MS110-SEBBS (1979)

Toyota Crown

Production Sep 1979 - Jul 1983
Engine MU
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7909- )MEU,MJ,5M#,MTEU,MU

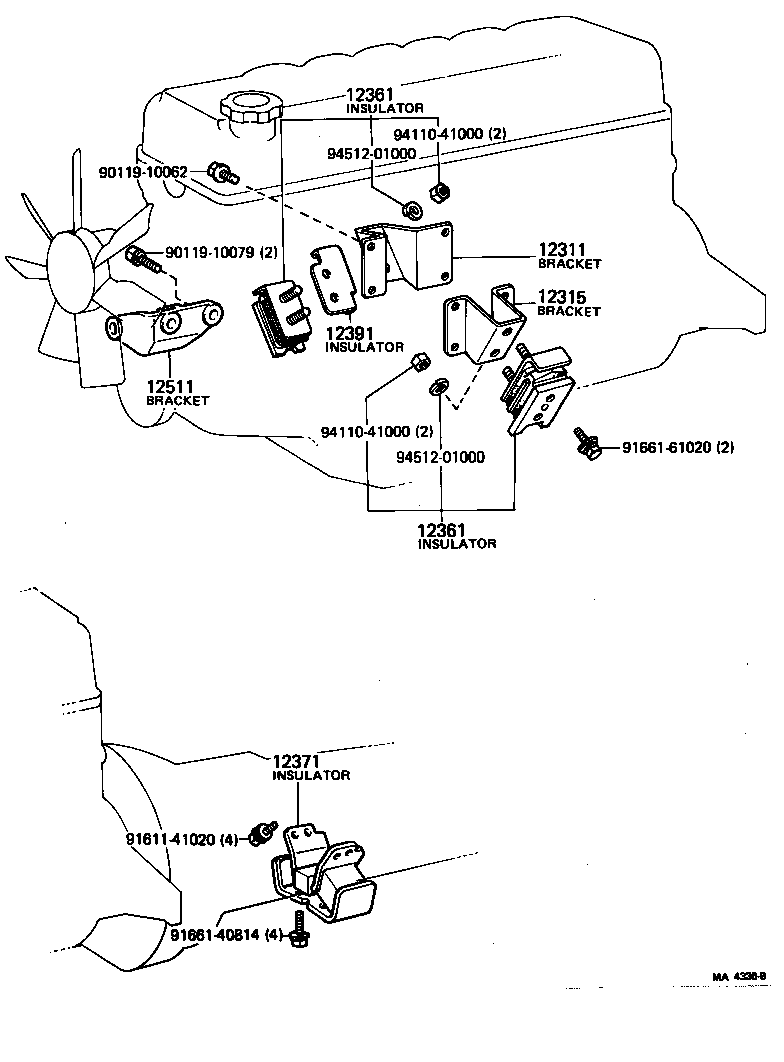

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12391 12511 9011910062 9011910079 9161141020 9166140814 9166161020 9411041000 9411041000 9451201000 9451201000
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-41060

MEU,MJ,5M#,MTEU,MU..MS11#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-41050

MEU,MJ,5M#,MTEU,MU..MS11#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

MEU,MJ,5M#,MTEU,MU..MS11#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-49026

MEU,MJ,5M#,MTEU,MU..MS11#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-41070

MEU,MJ,MTEU,MU..MS110,117

 1
12371-41070

MJ,MTEU,MU..MS110,117

 1
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-41010

MEU,MJ,5M#,MTEU,MU..MS11#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-41030

MEU,MJ,5M#,MTEU,MU..MS11#

 1
Common parts
90119-10062
90119-10079
91611-41020
91661-40814
91661-61020
94110-41000
94512-01000
