LS136V-AXPDS (1991)
Toyota Crown
(9110- )GS130,136,LS136,YS130
ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,ﾅｼ(ﾕﾏｸ ﾄﾘ ﾀﾝｸ)

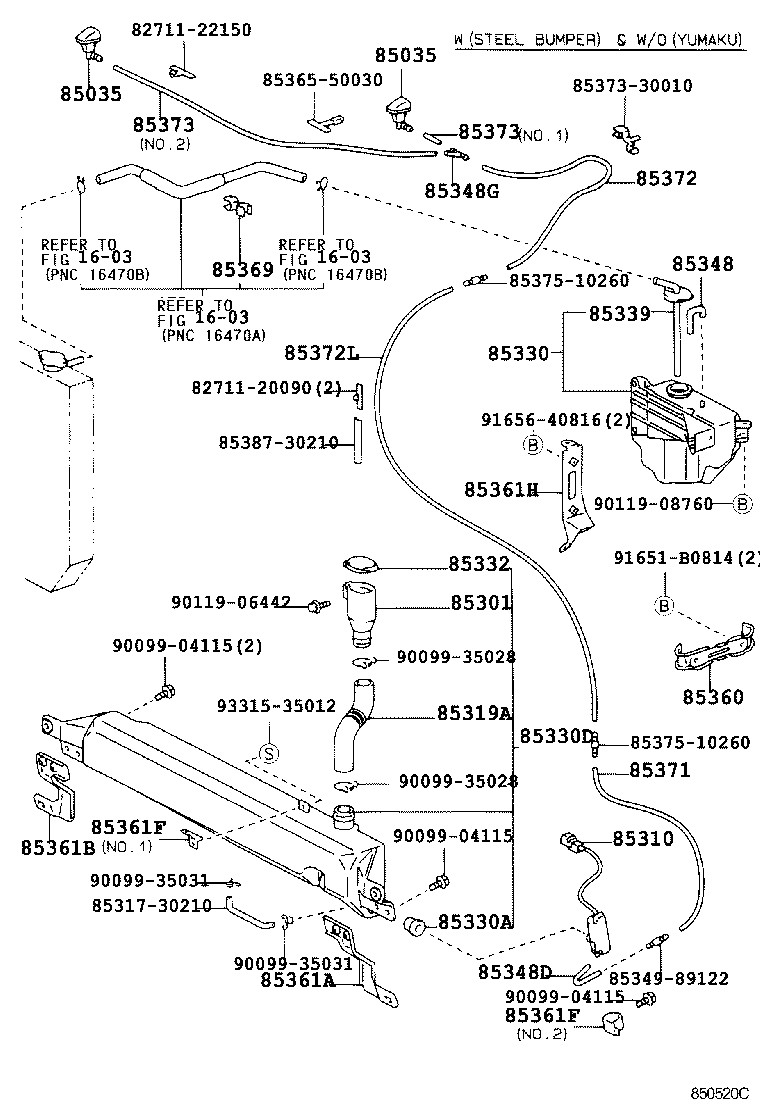

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS136,LS136..DLX BLACK,183 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020C1 |
GS136,LS136..DLX BLACK,183 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85318-30100 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30200 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 85330-30200 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85319A - HOSE, INLET | ||||
| 85319-30210 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85319-30210 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30220 |
JZS13#..4HC;LS130..SALEX;GS130,LS136,YS130..DLX,DLXA,STD;GS131,136,JZS130,131,LS131..(4FC,4H,5F)..(DLX,SALEX,SDX,STD) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85331-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
JZS13#..4HC;GS13#,JZS130,131,LS13#..(4FC,4H,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| 85330D - JAR ASSY, WASHER | ||||
| 85315-30210 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-30140 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13# |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85339-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85334-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 85355-14481 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348-14390 |
GS13#,JZS13#,LS13# |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85361-30270 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85361-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85361A - BRACKET, WINDSHIELD WASHER, NO.1 | ||||
| 85337-30210 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85337-30210 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85361B - BRACKET, WINDSHIELD WASHER, NO.2 | ||||
| 85338-30210 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85338-30210 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85339-30140 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85339-30210 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 85339-30140 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85339-30210 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 85361F - BRACKET, WINDSHIELD WASHER, NO.3 | ||||
| 85339-30140 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85339-30210 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 85339-30140 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 85339-30210 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 85361H - BRACKET, WASHER | ||||
| 88688-3A100 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 88688-3A100 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85369-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GS136;GS130,LS136..DLX,STD *H,L=260,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33080 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD *H,L=260,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33299 |
GS13#,JZS13#,LS13#,YS130 *H,L=600 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=580 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD *H,L=1150,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33080 |
GS136;GS130,LS136..DLX,STD *H,L=1150,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-20090 | ||||
| 82711-22150 | ||||
| 85317-30210 | ||||
| 85349-89122 | ||||
| 85365-50030 | ||||
| 85373-30010 | ||||
| 85375-10260 | ||||
| 85387-30210 | ||||
| 90099-04115 | ||||
| 90099-35028 | ||||
| 90099-35031 | ||||
| 90119-06442 | ||||
| 90119-08760 | ||||
| 91651-B0814 | ||||
| 91656-40816 | ||||
| 93315-35012 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9110- )
ﾅｼ(ﾕﾏｸ ﾄﾘ ﾀﾝｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85381-30020C1 |
GS136,LS136..DLX BLACK,183 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-30020A1 |
GS13#,JZS13#,LS13# SUPER WHITE 4,050 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13#,YS130 SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020B0 |
GS136..DLX,SDX;GS130,131,JZS13#,LS13# SUPER SILVER 3 M,176 |
2 | ||
| 85381-30020A1 |
GS13#,JZS13#,LS13#,YS130 SUPER WHITE 4,050 |
2 | ||
| 85381-30020C1 |
GS136,LS136..DLX BLACK,183 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-30200 |
GS136;GS130,LS136..DLX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13# |
1 | ||
| 85330-30200 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85330-30190 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30220 |
JZS13#..4HC;LS130..SALEX;GS130,LS136,YS130..DLX,DLXA,STD;GS131,136,JZS130,131,LS131..(4FC,4H,5F)..(DLX,SALEX,SDX,STD) ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85331-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
JZS13#..4HC;GS13#,JZS130,131,LS13#..(4FC,4H,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-30140 |
GS136;GS130,131,JZS13#,LS13#..DLX,ROY,ROYG,SALEX,STD ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13# |
1 | ||
| 85332-12650 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85316-34050 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85339-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85334-30280 |
GS13#,JZS13#,LS13# |
1 | ||
| 85334-30280 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85348-14390 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85348-14390 |
GS13#,JZS13#,LS13# |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85361-30270 |
YS130..STD;GS13#,JZS13#,LS13# |
1 | ||
| 85361-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85361H - BRACKET, WASHER | ||||
| 88688-3A100 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 88688-3A100 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 85369 - CLAMP | ||||
| 85369-30270 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 85369-30270 |
GS13#,JZS13#,LS13# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33080 |
GS136;GS130,LS136..DLX,STD *H,L=260,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33080 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD *H,L=260,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 90099-33299 |
GS13#,JZS13#,LS13#,YS130 *H,L=600 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=580 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
GS13#,JZS13#,LS13# *H,L=40,NO.1,NO.2 |
1 | ||
| Common parts | ||||
| 82711-22150 | ||||
| 85365-50030 | ||||
| 85373-30010 | ||||
| 85375-10260 | ||||
| 90119-08760 | ||||
| 91651-B0814 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 1603 | ||||
