LS136V-AXPDS (1991)
Toyota Crown
(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53183D - SEAL, HEADLAMP COVER TO HOOD | ||||
| 53183-30060 |
GS130,136,LS130,136..DLX,SDX,STD |
1 | ||
| 53183-30060 |
GS130..WG..SDX;GS130,136,LS130,136,YS130..(SED,V)..(DLX,DLXA,SALEX,SDX,STD) |
1 | ||
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30320 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53301-30320 |
GS13#,JZS13#,LS13# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30112 |
GS130,131,JZS13#,LS13#..(DLX,ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TDEC,TWC) |
1 | ||
| 53349A - RETAINER, HOOD INSULATOR | ||||
| 53349-30010 |
GS136..SDX;GS130,131,JZS13#,LS13#,YS130..DLX,ROY,ROYG,SALEX,SDX |
2 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30120 |
GS13#,JZS13#,LS13# |
1 | ||
| 53381-30120 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3F160 |
GS130..STD;GS136,LS136..DLX,STD |
1 | ||
| 53801-3F160 |
GS136,LS136..DLX,STD;GS130,YS130..DLXA,STD |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3A820 |
GS130..STD;GS136,LS136..DLX,STD |
1 | ||
| 53802-3A820 |
GS136,LS136..DLX,STD;GS130,YS130..DLXA,STD |
1 | ||
| 53813B - EXTENSION, FRONT FENDER, RH | ||||
| 53813-30040 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53813-30040 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53814B - EXTENSION, FRONT FENDER, LH | ||||
| 53814-30040 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53814-30040 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 53866-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53867-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-14020 |
GS13#,JZS13#,LS13# FENDER X ROCKER |
2 | ||
| 53878-30020 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD FENDER EXTENSION |
1 | ||
| 53878-30020 |
GS136;GS130,LS136..DLX,STD FENDER EXTENSION |
1 | ||
| 53878-30020 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD FENDER X EXTENSION |
1 | ||
| 53878-14020 |
GS13#,JZS13#,LS13#,YS130 FENDER X ROCKER |
2 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-14020 |
GS13#,JZS13#,LS13# FENDER X ROCKER |
2 | ||
| 53878-30020 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD FENDER EXTENSION |
1 | ||
| 53878-30020 |
GS136;GS130,LS136..DLX,STD FENDER EXTENSION |
1 | ||
| 53878-30020 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD FENDER X EXTENSION |
1 | ||
| 53878-14020 |
GS13#,JZS13#,LS13#,YS130 FENDER X ROCKER |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
GS136;GS130,LS136..DLX,STD |
2 | ||
| 53879-22030 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
2 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22030 |
GS136;GS130,LS136..DLX,STD |
2 | ||
| 53879-22030 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
2 | ||
| 53879E - SPACER, FRONT FENDER, LH | ||||
| 53878-30020 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53878-30020 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53885F - SHIELD, FRONT FENDER SPLASH, REAR RH | ||||
| 53885-30070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53885-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 53885-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53886F - SHIELD, FRONT FENDER SPLASH, REAR LH | ||||
| 53886-30070 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53886-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 53886-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-30010 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53895-30010 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53895B - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53895-30010 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53895-30010 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-30010 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53896-30010 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53896B - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53896-30010 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53896-30010 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53931B - PANEL, FRONT END, RH | ||||
| 53903-30260 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53903-30260 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 53932B - PANEL, FRONT END, LH | ||||
| 53904-30260 |
GS136;GS130,LS136,YS130..DLX,DLXA,STD |
1 | ||
| 53904-30260 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| Common parts | ||||
| 90119-06352 | ||||
| 90159-50323 | ||||
| 90159-60507 | ||||
| 90167-40045 | ||||
| 90179-05060 | ||||
| 90189-04095 | ||||
| 90189-04139 | ||||
| 90189-06006 | ||||
| 90467-07091 | ||||
| 90467-07137 | ||||
| 90467-08008 | ||||
| 90467-08011 | ||||
| 90467-08136 | ||||
| 90467-0900801 | ||||
| 90467-11028 | ||||
| 90467-12043 | ||||
| 90541-15004 | ||||
| 90901-05005 | ||||
| 90950-01392 | ||||
| 90950-01398 | ||||
| 90950-01422 | ||||
| 91651-60614 | ||||
| 91661-60625 | ||||
| 93590-16016 | ||||

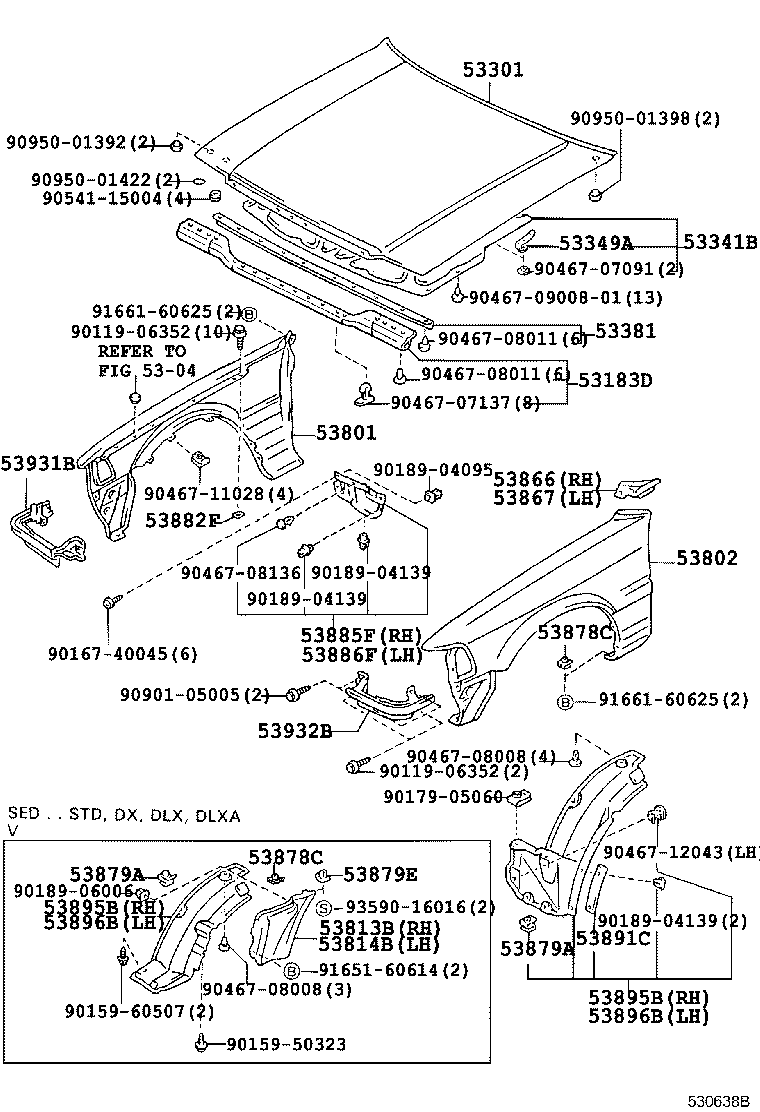

| Linked diagrams | ||||
| 5304 | ||||
