LS136V-AXPDS (1991)

Toyota Crown

Production Oct 1991 - Sep 1994
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )2LT#,2L

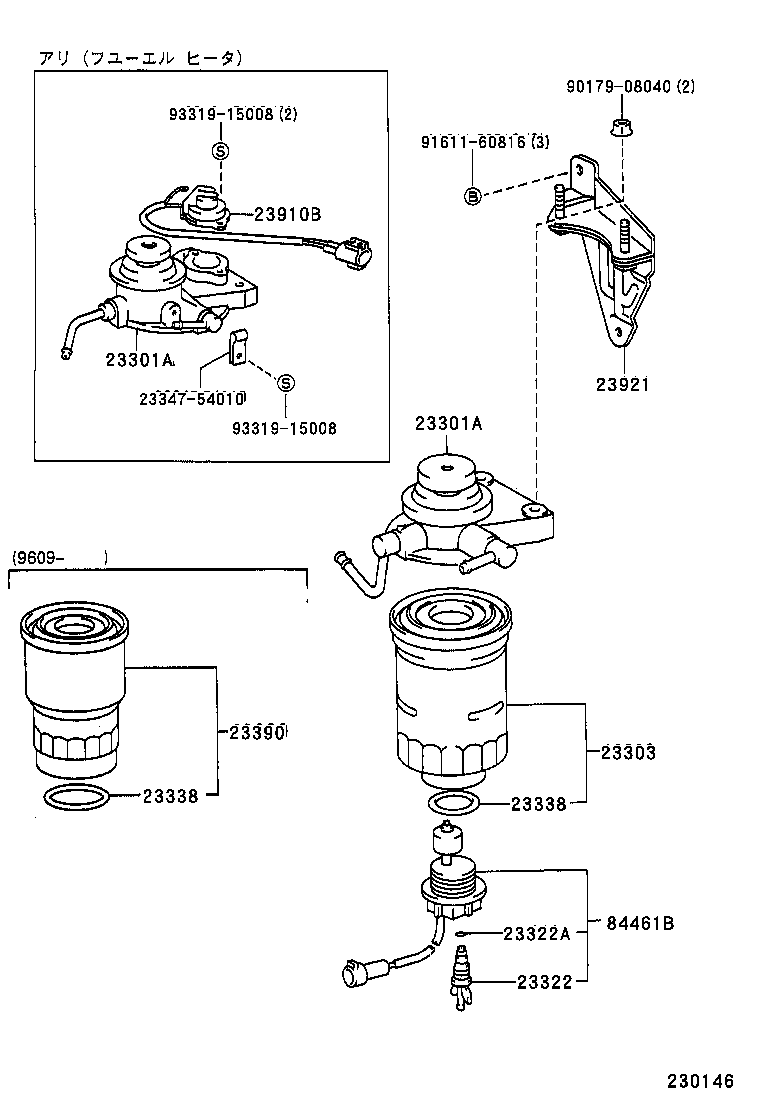

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 23338 2334754010 23390 23910B 23921 84461B 9017908040 9161160816 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54350

2LT#,2L..LS13#

 1
23301-54570

2LT#,2L..LS13#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23301A - CAP ASSY, FUEL FILTER
23301-54350

2LT#,2L..LS13#

 1
23301-54570

2LT#,2L..LS13#

ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ)

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2LT#,2L..LS13#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2LT#,2L..LS13#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2LT#,2L..LS13#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2LT#,2L..LS13#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

2LT#,2L..LS13#

 1
23910B - HEATER ASSY, FUEL
23910-54050

2LT#,2L..LS13#

 1
23921 - SUPPORT, FUEL FILTER
23921-54240

2LT#,2L..LS13#

 1
84461B - SWITCH, LEVEL WARNING
84461-30090

LS13#

 1
Common parts
23347-54010
90179-08040
91611-60816
93319-15008
