LS136V-AXPDS (1987)
Toyota Crown

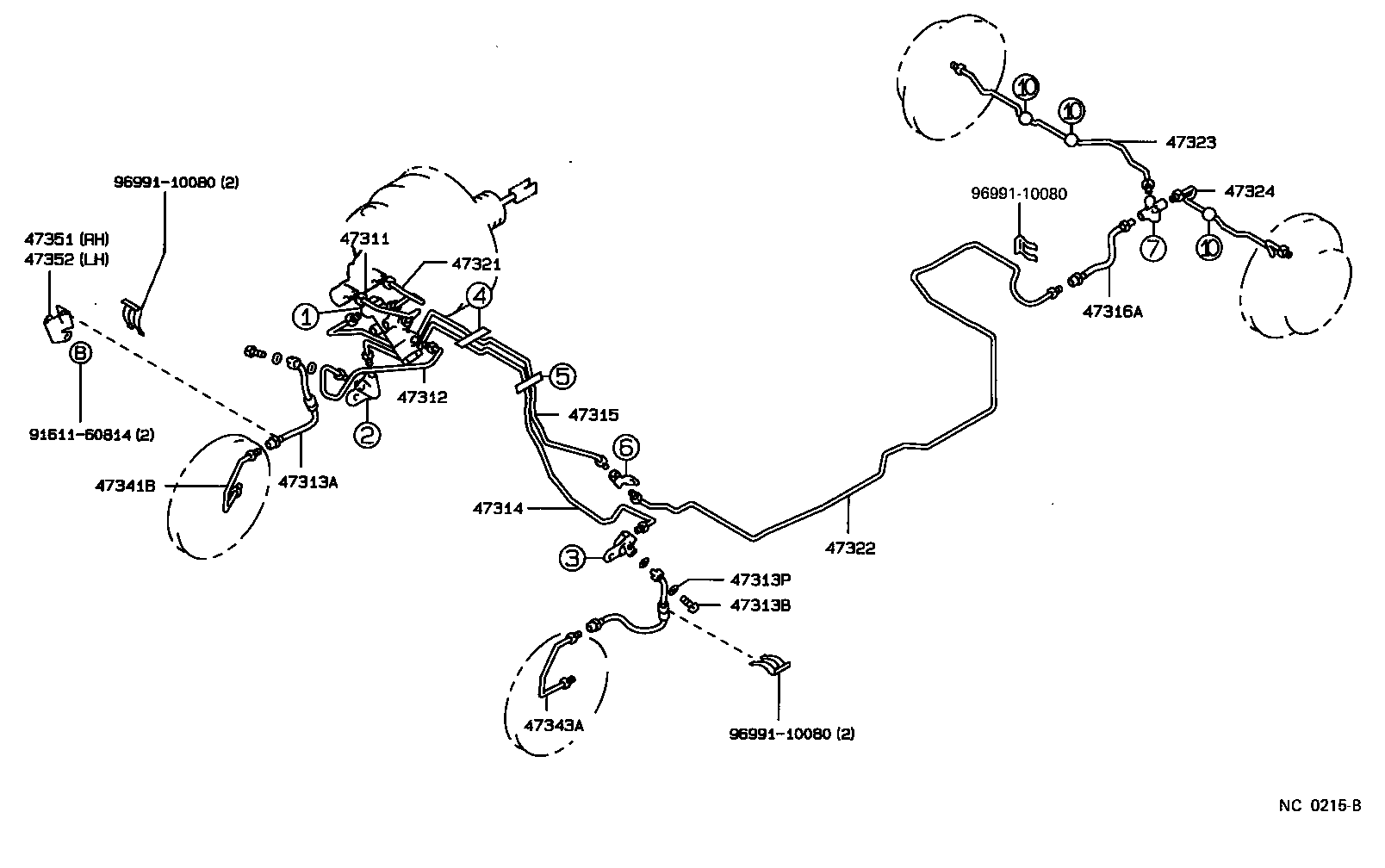

ILLUST NO. 1 OF 3(8709- )GS136,LS136
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30430 |
YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS130,135;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 47311-30431 |
YS130..4HC;GS13#,JZS13#,LS131,136,MS135;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30230 |
GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02543 |
YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,JZS13#,LS131,136,MS13#,UZS131;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30200 |
GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE |
1 | ||
| 47314-30201 |
GS136;GS130,LS13#,YS130..DSL,LPEFI,TD,TDE,TWLPG |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-30360 |
GS13#,LS13#,MS130,YS130..DSL,EFI,LPG,TD,TDE |
1 | ||
| 47315-30361 |
GS136;GS130,LS13#,YS130..DSL,LPEFI,TD,TDE,TWLPG |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33555 |
GS136,LS136 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30150 |
YS130..4HC;YS130..4H..DLX;GS130..STD..HTWC;GS131,136,LS136,MS130,135;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL |
1 | ||
| 47321-30151 |
YS130..4HC;GS13#,JZS13#,LS131,136,MS135;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30120 |
GS136,LS136 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30150 |
GS136,LS136 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30110 |
GS136,LS136 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-30030 |
YS130..4HC;GS13#,JZS13#,LS131,136,MS13#,UZS131;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX) |
1 | ||
| 47341-30030 |
YS130..4HC;YS130..4H..DLX;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130,131..(HT,SED)..(ROY,STD)..(HTWC,SPC);GS131,136,LS136,MS13#..DSL,EFI,HTWC,LPG,TWC |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-30030 |
YS130..4HC;YS130..4H..DLX;GS130,LS130..DLX,ROY,SAL,SALEX,SDX,SPE,SSL;GS130,131..(HT,SED)..(ROY,STD)..(HTWC,SPC);GS131,136,LS136,MS13#..DSL,EFI,HTWC,LPG,TWC |
1 | ||
| 47343-30030 |
YS130..4HC;GS13#,JZS13#,LS131,136,MS13#,UZS131;LS130,YS130..(4FC,4H,5F)..(DLX,SALEX,SDX) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-30210 |
GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 47351-30210 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-30090 |
GS131..ROY..SPC;GS131..EFI,HTWC,TWC;GS130,136,LS13#,MS13#,YS130 |
1 | ||
| 47352-30090 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 96991-10080 | ||||
ILLUST NO. 2 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159B - BRACKET, PROPORTIONING & BY-PASS VALVE | ||||
| 47159-30170 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 47159-30171 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-30190 |
YS130..4HC;YS130..4H..DLX;GS136,LS136,MS130;GS130,LS130..WG..SALEX..(EFI,TDE);GS130,LS130..(DLX,SDX,SPE,SSL)..(DSL,EFI,TD,TDE,TWLPG) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10211 |
GS13#,JZS13#,LS13#,MS130,135,YS130 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10146 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10144 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10156 |
GS130,136,JZS130,LS130,136,MS130,YS130 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30140 |
YS130;GS130,131,JZS13#,LS13#,MS13#,UZS131..ATM |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30130 |
GS13#,LS13#,MS13#,YS130 |
1 | ||
| 47371-30120 |
GS13#,JZS13#,LS13#,MS13#,UZS131,YS130 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06398 | ||||
| 90461-06041 | ||||
| 90461-06051 | ||||
| 90461-06902 | ||||
| 90464-00208 | ||||
| 91611-60612 | ||||
| 91611-60640 | ||||
| 91655-40616 | ||||
| 91655-40816 | ||||
| 91655-40820 | ||||
