LS136V-AXMDS (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

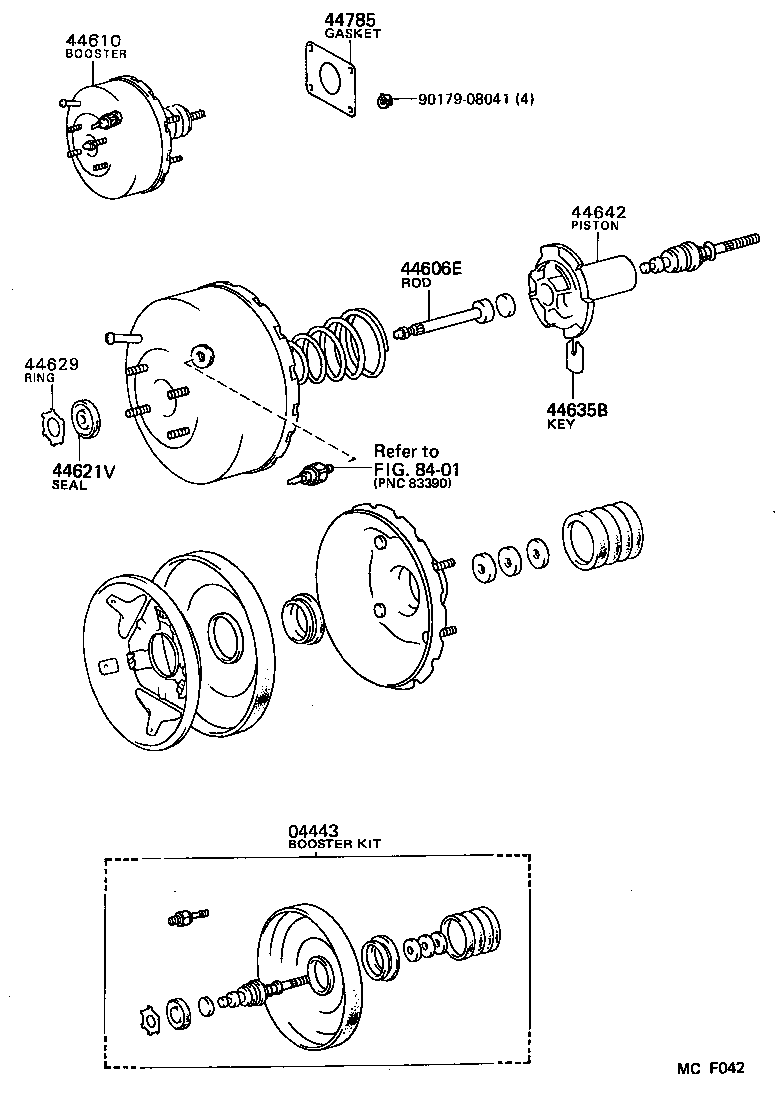

(8709- )LS13#

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44785 8401 9017908041
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-30571

LS136;LS130,131..DLX,SALEX,SDX,SPE,SSL

 1
04443-30570

LS136;LS130..DLX,SALEX,SDX,SPE,SSL

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
44606-12520

GS136,LS13#

 1
44610 - BOOSTER ASSY, BRAKE
44610-30650

LS136;LS130,131..DLX,SALEX,SDX,SPE,SSL

 1
44621V - SEAL, BOOSTER BODY
44621-28120

GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
44621-28120

GS136,LS13#

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

GS136,LS13#

 1
44628-28120

GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
44635B - KEY, VALVE STOPPER
44635-12630

GS136,LS13#

 1
44635-12630

GS136;GS130,131,LS13#,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
44642 - PISTON, BRAKE BOOSTER
44642-32030

GS136;LS130..DLX,SALEX,SDX,SPE,SSL;GS130,131,LS131,136,MS130,YS130..DSL,EFI,LPEFI,LPG,TD,TDE,TWLPG

 1
44642-32030

GS136,LS131,136;LS130..DLX,SALEX,SDX

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
Common parts
90179-08041
Linked diagrams
8401

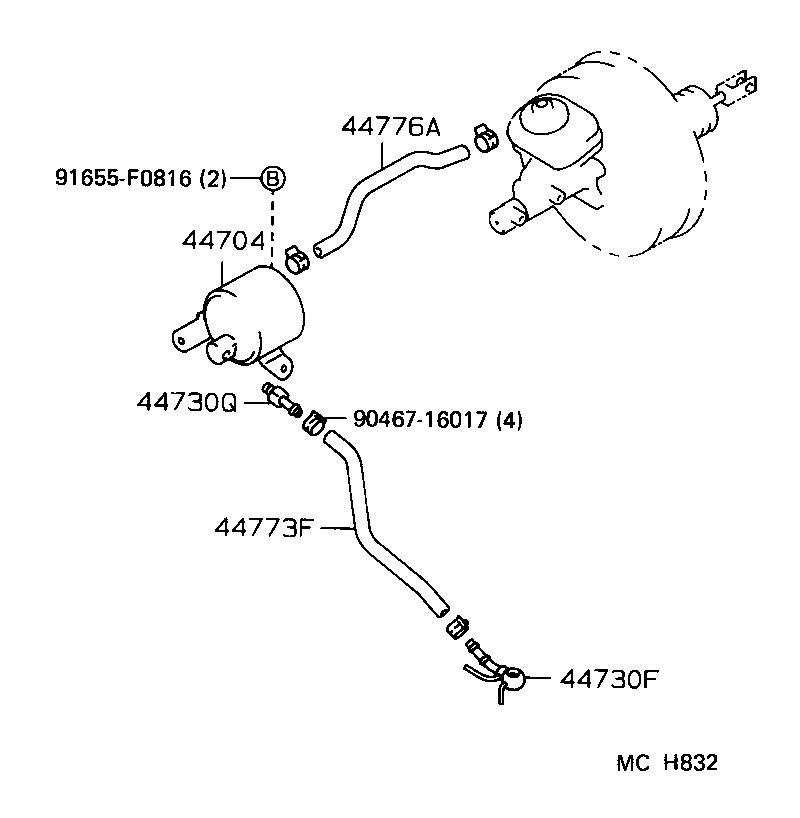

(8709- )LS13#

Click highlighted areas on diagram

diagram 44704 44730F 44730Q 44773F 44776A 9046716017 91655F0816
Part # Description Qty Price
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-30080

LS13#

 1
44704-30070

LS13#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09062

LS13#

 1
90405-09145

LS13#

 1
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-60050

LS13#

 1
44730-60040

LS13#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-30450

LS13#

 1
44773-30480

LS13#

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-30010

LS13#

 1
Common parts
90467-16017
91655-F0816

(8908- )MS135..ROY ; (8908- )GS131..ROY..SPC ; (8908- )GS131,JZS13#,MS137,

Click highlighted areas on diagram

diagram 04443 44605 44608 44609D 44610 44624J 44633 44637A 44645 44649B 44673A 44696 44730 44758 44785 9017908121
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-30571

LS136;LS130,131..DLX,SALEX,SDX,SPE,SSL

 1
04443-30570

LS136;LS130..DLX,SALEX,SDX,SPE,SSL

 1
44610 - BOOSTER ASSY, BRAKE
44610-30650

LS136;LS130,131..DLX,SALEX,SDX,SPE,SSL

 1
44696 - GROMMET, CHECK VALVE
90480-24439

YS130..4HC;YS130..4H..DLX;GS130,136,JZS130

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

YS130..4HC;YS130..4H..DLX;GS130,136,JZS130

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 1
Common parts
90179-08121
