LS136V-AXMDS (1991)
Toyota Crown
ILLUST NO. 1 OF 8(9110- )LS13#
ｴﾝｼﾞﾝ & ｶｳﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3A790 |
LS136 ｱﾘ(140E41L BATTERY) |
1 | ||
| 82111-3A780 |
LS136 |
1 | ||
| 82111-3A781 |
LS136 |
1 | ||
| 82111-3A791 |
LS136 ｱﾘ(140E41L BATTERY) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30630 |
LS136 |
1 | ||
| 82121-30631 |
LS136 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30440 |
LS136..5F |
1 | ||
| 82122-30430 |
LS13# ｱﾘ(140E41L BATTERY) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30220 |
LS13# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-30090 |
LS136 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-30210 |
GS130,136,LS136..5F |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-31310 |
LS136 ｱﾘ(*80) |
1 | ||
| 82131-3K530 |
LS136 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13# 長さ=110,1.0Y |
1 | ||
| 90982-08257 |
GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08261 |
LS13#..SED,V;LS130..SALEX..TDEC 長さ=110,0.5 ｸﾞﾘｰﾝ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
GS136,LS13#,YS130 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GS136,LS13# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13# 長さ=110,1.0Y |
1 | ||
| 90982-08257 |
GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08261 |
LS13#..SED,V;LS130..SALEX..TDEC 長さ=110,0.5 ｸﾞﾘｰﾝ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
GS136,LS13#,YS130 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GS136,LS13# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
GS13#,JZS13#,LS13# 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08169 |
GS13#,JZS13#,LS13# 長さ=110,1.0Y |
1 | ||
| 90982-08257 |
GS13#,JZS130,131,133,LS13# 40A,ｵｽ端子,緑 |
1 | ||
| 90982-08261 |
LS13#..SED,V;LS130..SALEX..TDEC 長さ=110,0.5 ｸﾞﾘｰﾝ |
1 | ||
| 90982-08246 |
GS130,131,JZS13#,LS13# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08203 |
GS136,LS13#,YS130 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08203 |
GS136,LS13# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08188 |
GS13#,JZS13#,LS13#,YS130 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08227 |
GS13#,JZS13#,LS13# 50A,ﾒｽ端子,赤 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-30030 |
LS13# |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-30240 |
LS136;GS130,136..STD |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-30240 |
LS136;GS130,136..STD |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30180 |
GS13#,JZS13#,LS13# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22080 |
GS130,LS13#,YS130..DSL,LPEFI,TDE,TWLPG |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90119-06122 | ||||
| 90119-06390 | ||||
| 90119-06403 | ||||
| 90119-08063 | ||||
| 90159-50138 | ||||
| 90179-06054 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90189-05076 | ||||
| 91619-61216 | ||||
| 91651-40814 | ||||
| 91651-60614 | ||||
| 91651-60618 | ||||
| 91651-60818 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 8(9110- )
ｲﾝﾊﾟﾈ & ｺﾝｿ-ﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3A070 |
GS136,LS136..4FC,5F |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30130 |
GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-3A450 |
GS13#,JZS130,131,LS13#,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| Common parts | ||||
| 91621-40616 | ||||
| 91651-60614 | ||||
| 93567-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 8(9110- )
ﾄﾞｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30420 |
GS130..STD;GS136,LS136 |
1 | ||
| 82153-30420 |
GS136,LS136;GS130,YS130..STD |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30330 |
GS130..STD;GS136,LS136 |
1 | ||
| 82154-30330 |
GS136,LS136;GS130,YS130..STD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-3A220 |
GS13#,JZS13#,LS13# |
1 | ||
| Common parts | ||||
| 90950-01582 | ||||
| 90950-01583 | ||||
| Linked diagrams | ||||
| 8121 | ||||

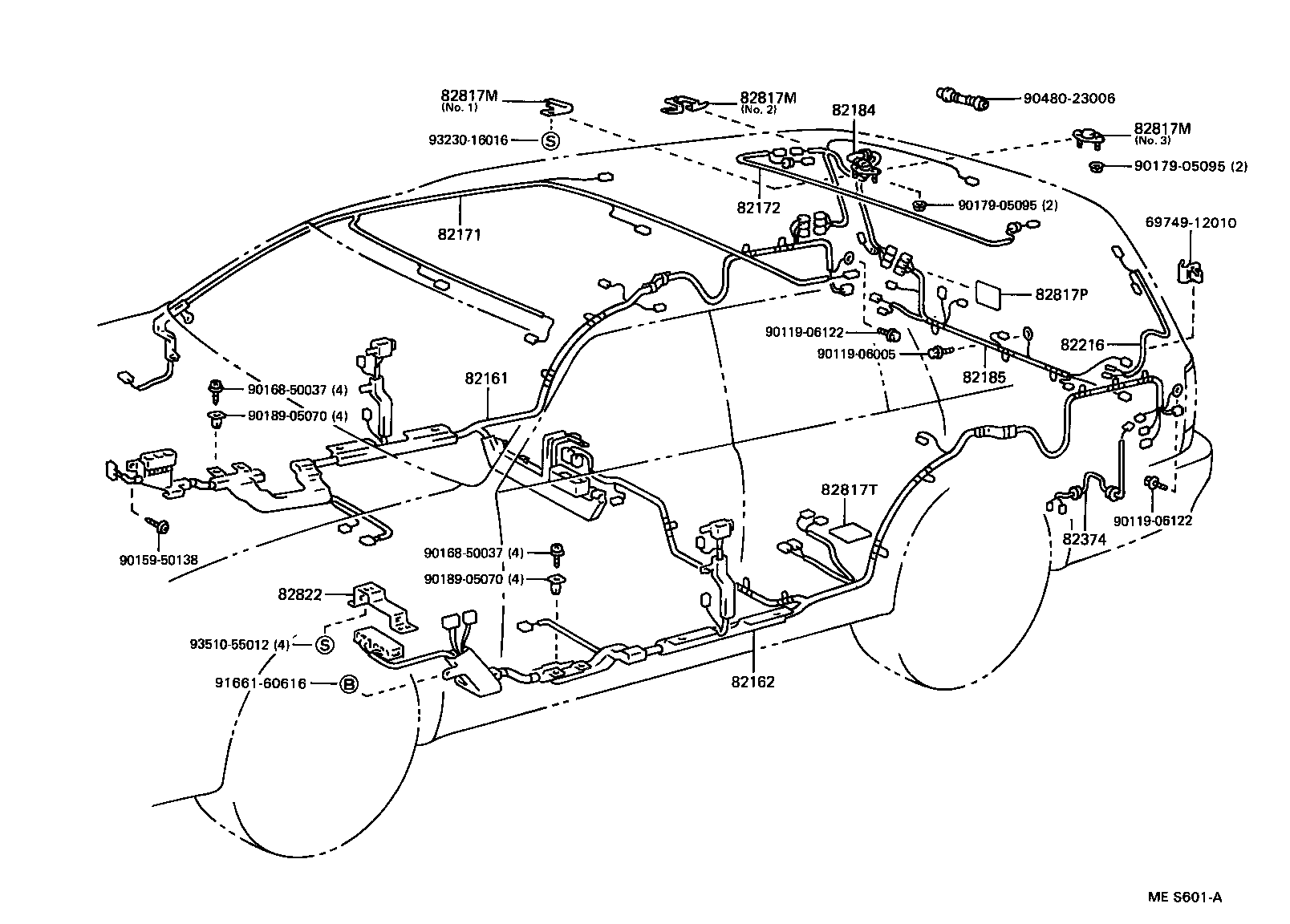

ILLUST NO. 4 OF 8(9110- )V,WG
ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-31060 |
GS136,LS136 |
1 | ||
| 82161-31061 |
GS136,LS136 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-31060 |
GS136,LS136 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-91707 |
GS130,136,LS136..(V,WG)..(DLX,SDX,STD) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-31040 |
GS136,LS136..DLX,STD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-31030 |
GS136,LS136..DLX,STD |
1 | ||
| 82185-31020 |
GS136,LS136..DLX,STD ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-91706 |
GS130,136,JZS130,LS130,136..(V,WG)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-23010 |
GS130,136,JZS130,LS130,136..V,WG NO.3 |
2 | ||
| 82817-23010 |
GS130,136,JZS130,LS130,136..V,WG NO.3 |
2 | ||
| 82817-91602 |
GS130,136,JZS130,LS130,136..V,WG NO.2 |
1 | ||
| 82817-31020 |
GS130,136,JZS130,LS130,136..V,WG NO.1 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-23010 |
GS130,136,JZS130,LS130,136..V,WG NO.3 |
2 | ||
| 82817-23010 |
GS130,136,JZS130,LS130,136..V,WG NO.3 |
2 | ||
| 82817-91602 |
GS130,136,JZS130,LS130,136..V,WG NO.2 |
1 | ||
| 82817-31020 |
GS130,136,JZS130,LS130,136..V,WG NO.1 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-23010 |
GS130,136,JZS130,LS130,136..V,WG NO.3 |
2 | ||
| 82817-23010 |
GS130,136,JZS130,LS130,136..V,WG NO.3 |
2 | ||
| 82817-91602 |
GS130,136,JZS130,LS130,136..V,WG NO.2 |
1 | ||
| 82817-31020 |
GS130,136,JZS130,LS130,136..V,WG NO.1 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-91707 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-30010 |
GS136,LS136;GS130,131,JZS13#,LS130,131..ROY,ROYG,SALEX,SDX |
1 | ||
| 82822-30010 |
GS130..SED..(ROY,SDX);GS131,136,JZS131,LS13#..(SED,V)..(DLX,SALEX,SDX,STD) |
1 | ||
| Common parts | ||||
| 69749-12010 | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90159-50138 | ||||
| 90168-50037 | ||||
| 90179-05095 | ||||
| 90189-05070 | ||||
| 90480-23006 | ||||
| 91661-60616 | ||||
| 93230-16016 | ||||
| 93510-55012 | ||||
ILLUST NO. 5 OF 8(9110- )
ｼ-ﾄ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-30600 |
GS130,136,LS130,136,YS130..(4FC,5F)..(DLX,ROY,SDX,STD) |
1 | ||
ILLUST NO. 7 OF 8(9110- )
ﾀﾞｲｵ-ﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82345-12030 | ||||
| 82345-12050 | ||||
| 82345-22051 | ||||
| 82345-30010 | ||||
| 82345-32020 | ||||
ILLUST NO. 8 OF 8(9110- )
ｴｱﾊﾞﾂｸﾞ ﾘﾍﾟｱ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 82988-24010 |
GS13#,JZS13#,LS13# |
1 | ||
| 82988-24010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| Common parts | ||||
| 82988-24010 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-22020 | ||||
| 82710-22070 | ||||
| 82710-30160 | ||||
| 82710-30220 | ||||
| 82710-30230 | ||||
| 82710-30250 | ||||
| 82711-12200 | ||||
| 82711-14750 | ||||
| 82711-24010 | ||||
| 82711-24120 | ||||
| 82711-30260 | ||||
| 82711-30520 | ||||
| 90119-08201 | ||||
| 90119-08714 | ||||
| 90119-08760 | ||||
| 91611-60814 | ||||
| 91612-40612 | ||||
| 91651-B0820 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30540 | ||||
| 82711-30830 | ||||
| 82711-30870 | ||||
| 82711-32650 | ||||
| 82711-35060 | ||||
| 82711-3A690 | ||||
| 82711-95015 | ||||
| 82711-95J26 | ||||
| 82715-22040 | ||||
| 82715-22080 | ||||
| 82715-22280 | ||||
| 82715-24090 | ||||
| 82715-24140 | ||||
| 82715-24150 | ||||
| 82715-24160 | ||||
| 90119-06200 | ||||
| 91651-60814 | ||||
| 91651-A0614 | ||||
| 93510-55012 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30010 | ||||
| 82715-30110 | ||||
| 82715-30120 | ||||
| 82715-30130 | ||||
| 82715-30150 | ||||
| 82715-30160 | ||||
| 82715-30180 | ||||
| 82715-30260 | ||||
| 82715-30270 | ||||
| 82715-30350 | ||||
| 82715-30360 | ||||
| 82715-30500 | ||||
| 82715-30510 | ||||
| 82715-30560 | ||||
| 90119-06200 | ||||
| 90179-06158 | ||||
| 91611-60816 | ||||
| 91651-40814 | ||||
| 91651-60814 | ||||
| 91651-G0814 | ||||
| 93567-55014 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-30380 | ||||
| 82715-22390 | ||||
| 82715-30570 | ||||
| 82715-30590 | ||||
| 82715-30600 | ||||
| 82715-30630 | ||||
| 82715-30640 | ||||
| 82715-30690 | ||||
| 82715-50020 | ||||
| 82715-50160 | ||||
| 90119-06375 | ||||
| 90168-60010 | ||||
| 90461-06303 | ||||
| 90461-06804 | ||||
| 90461-08183 | ||||
| 90461-08312 | ||||
| 91621-60612 | ||||
| 91651-A0614 | ||||
ILLUST NO. 6 OF 8(9110- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3A180 | ||||
| 82711-3A430 | ||||
| 82711-3H380 | ||||
| 82715-30511 | ||||
| 82715-30710 | ||||
| 82715-89108 | ||||
| 82817-3F670 | ||||
| 82822-30020 | ||||
| 90119-06120 | ||||
| 90168-40036 | ||||
| 90463-13003 | ||||
| 91611-60612 | ||||
| 93567-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
