LS136V-AXMDS (1991)

Toyota Crown

Production Oct 1991 - Sep 1994
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

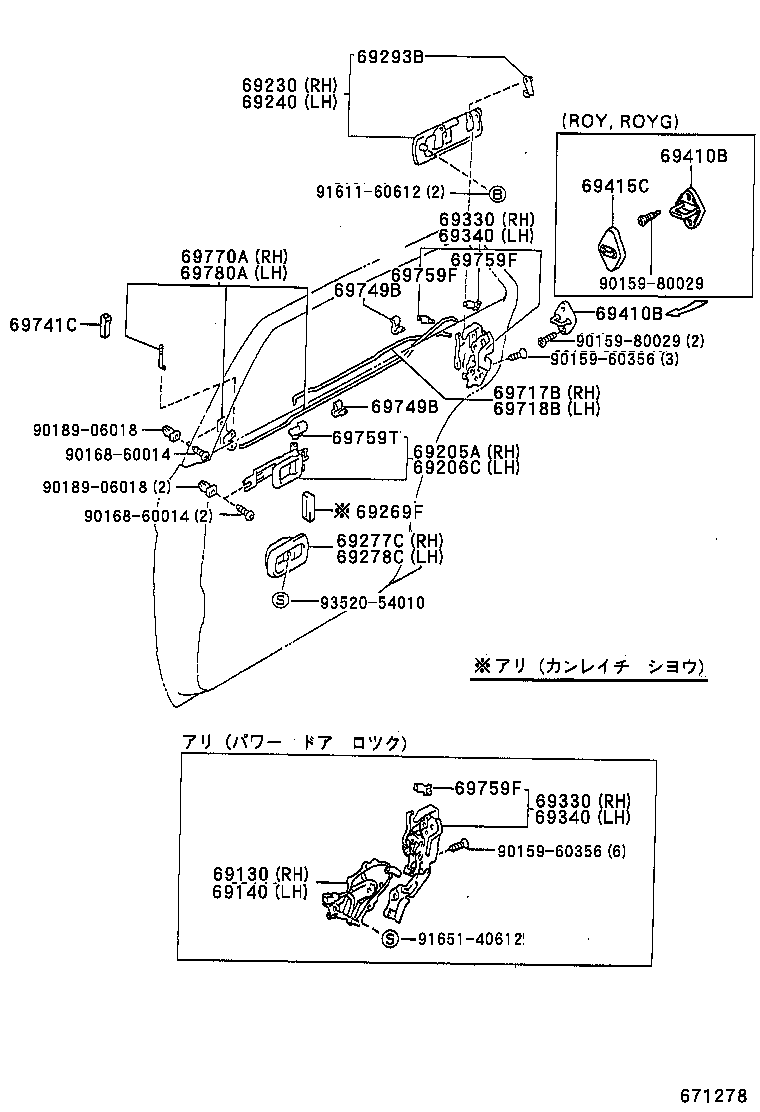

Click highlighted areas on diagram

diagram 69130 69140 69205A 69206C 69230 69240 69269F 69277C 69278C 69293B 69330 69330 69340 69340 69410B 69410B 69415C 69717B 69718B 69741C 69749B 69749B 69759F 69759F 69759F 69759T 69770A 69780A 9015960356 9015960356 9015980029 9015980029 9016860014 9016860014 9018906018 9018906018 9161160612 9165140612 9352054010
Part # Description Qty Price
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-30041

GS13#,JZS13#,LS13#,YS130

 1
69205-30041

GS13#,JZS13#,LS13#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-30041

GS13#,JZS13#,LS13#

 1
69206-30041

GS13#,JZS13#,LS13#,YS130

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-30090

GS13#,JZS13#,LS13#,YS130

 1
69230-30090

GS13#,JZS13#,LS13#

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-30070

GS13#,JZS13#,LS13#

 1
69240-30070

GS13#,JZS13#,LS13#,YS130

 1
69269F - SEAL, REAR DOOR INSIDE HANDLE
69269-30010

GS13#,JZS13#,LS13#,YS130

ｶﾝﾚｲﾁ ｼﾖｳ

 2
69269-30010

GS13#,JZS13#,LS13#

ｶﾝﾚｲﾁ ｼﾖｳ

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69277-30060J0

GS13#,JZS13#,LS13#

DK.BLUE,TRIM8#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69277-30060J0

GS13#,JZS13#,LS13#

DK.BLUE,TRIM8#

 1
69293B - SNAP, REAR DOOR OUTSIDE HANDLE
69293-12060

GS13#,JZS13#,LS13#,YS130

左側

 1
69293-12050

GS13#,JZS13#,LS13#

右側

 1
69293-12060

GS13#,JZS13#,LS13#

左側

 1
69293-12050

GS13#,JZS13#,LS13#,YS130

右側

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-30410

GS130..STD;GS136,LS136

 1
69330-30410

GS136,LS136;GS130,YS130..STD

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-30410

GS130..STD;GS136,LS136

 1
69330-30410

GS136,LS136;GS130,YS130..STD

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30410

GS130..STD;GS136,LS136

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-30410

GS130..STD;GS136,LS136

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

GS13#,JZS130,131,LS13#..DLX,SALEX,SDX,STD

 2
69410-87001

GS13#,JZS130,131,LS13#,YS130..DLX,DLXA,SALEX,SDX,STD

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-87001

GS13#,JZS130,131,LS13#..DLX,SALEX,SDX,STD

 2
69410-87001

GS13#,JZS130,131,LS13#,YS130..DLX,DLXA,SALEX,SDX,STD

 2
69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-30080

GS13#,JZS13#,LS13#,YS130

 1
69713-30080

GS13#,JZS13#,LS13#

 1
69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-30080

GS13#,JZS13#,LS13#

 1
69714-30080

GS13#,JZS13#,LS13#,YS130

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-30030J0

GS13#,JZS13#,LS13#

DK.BLUE,TRIM8#

 2
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30020

GS13#,JZS13#,LS13#

 6
69749-30020

GS13#,JZS13#,LS13#,YS130

 6
69749B - CLAMP, REAR DOOR LOCK LINK
69749-30020

GS13#,JZS13#,LS13#

 6
69749-30020

GS13#,JZS13#,LS13#,YS130

 6
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

GS13#,JZS13#,LS13#

GRAY

 2
69759-24050

GS13#,JZS13#,LS13#,YS130

GREEN

 2
69759-24060

GS13#,JZS13#,LS13#,YS130

GRAY

 2
69759-24050

GS13#,JZS13#,LS13#

GREEN

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

GS13#,JZS13#,LS13#

GRAY

 2
69759-24050

GS13#,JZS13#,LS13#,YS130

GREEN

 2
69759-24060

GS13#,JZS13#,LS13#,YS130

GRAY

 2
69759-24050

GS13#,JZS13#,LS13#

GREEN

 2
69759F - SNAP, REAR DOOR LOCK CONTROL LINK
69759-24060

GS13#,JZS13#,LS13#

GRAY

 2
69759-24050

GS13#,JZS13#,LS13#,YS130

GREEN

 2
69759-24060

GS13#,JZS13#,LS13#,YS130

GRAY

 2
69759-24050

GS13#,JZS13#,LS13#

GREEN

 2
69759T - SNAP, REAR DOOR INSIDE HANDLE
69759-24010

GS13#,JZS13#,LS13#

NATURAL

 1
69759-24010

GS13#,JZS13#,LS13#,YS130

NATURAL

 1
69759-24020

GS13#,JZS13#,LS13#,YS130

ﾌﾞﾙｰ

 1
69759-24020

GS13#,JZS13#,LS13#

ﾌﾞﾙｰ

 1
69770A - LINK ASSY, REAR DOOR INSIDE LOCKING, RH
69770-30130

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
69770-30130

GS136;GS130,LS136..DLX,STD

 1
69780A - LINK ASSY, REAR DOOR INSIDE LOCKING, LH
69780-30100

GS136;GS130,LS136,YS130..DLX,DLXA,STD

 1
69780-30100

GS136;GS130,LS136..DLX,STD

 1
Common parts
90159-60356
90159-80029
90168-60014
90189-06018
91611-60612
91651-40612
93520-54010
