Toyota Crown LS136 CONSOLE BOX & BRACKET

Manufacturers Home
Toyota
JP
CROWN
LS136V-AXMDS (1991)
5806 - CONSOLE BOX & BRACKET

LS136V-AXMDS (1991)

Toyota Crown

Production Oct 1991 - Sep 1994

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

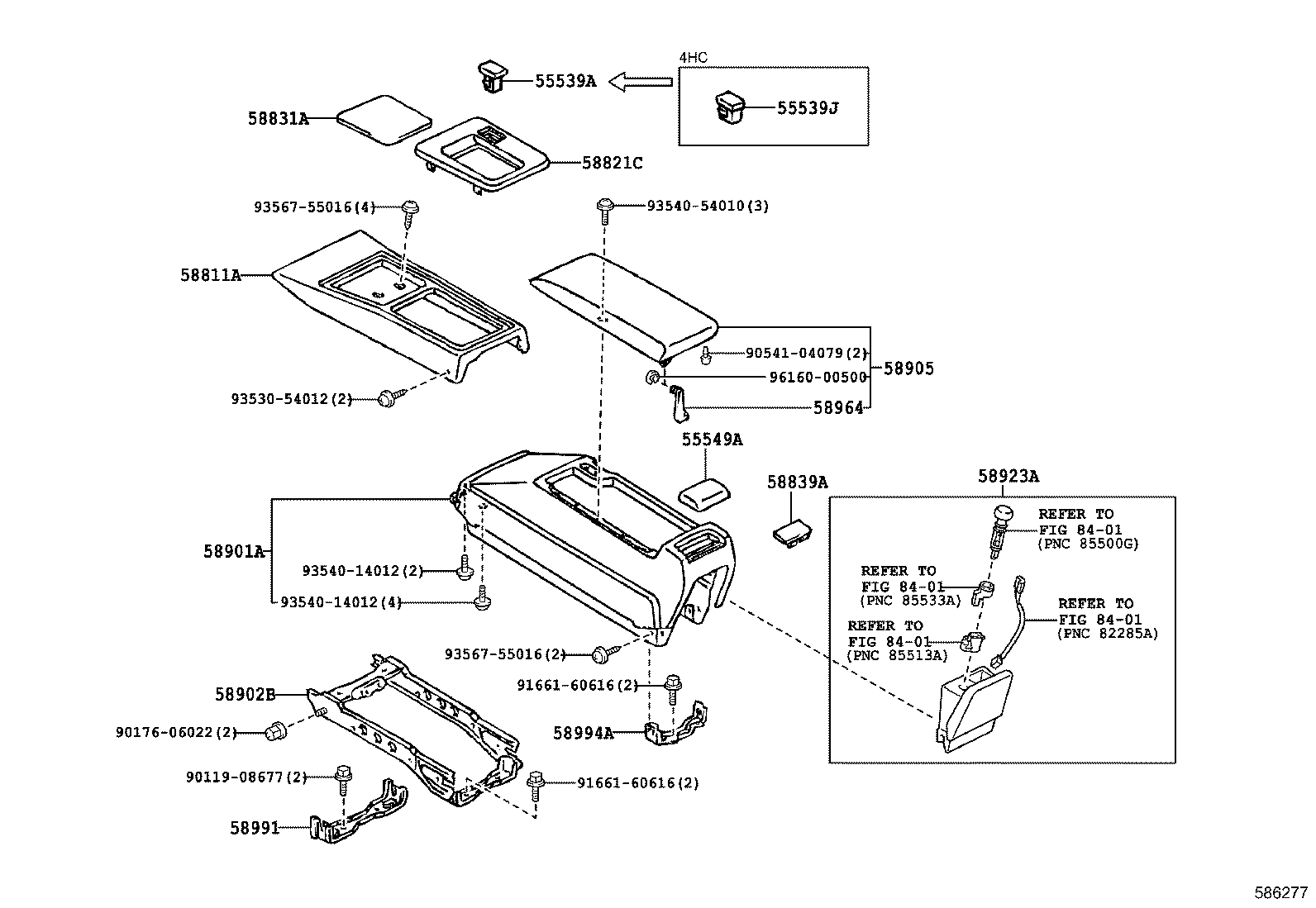

(9110- )GS130..WG..SALEX ; (9110- )GS130..SED..ATM..SALEX,SDX..HTWC ; (9110-

Click highlighted areas on diagram

Part #	Description	Period	Qty
55549A - COVER, REAR COOLER SWITCH HOLE
55549-30090J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 12/2999	1
58811A - BOX, CONSOLE, FRONT
58811-30240J0	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8#	10/1991 - 12/1991	1
58839A - COVER, CONSOLE BOX HOLE
58839-30031	GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD)	10/1991 - 12/1995	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-30080J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 08/1993	1
58901-30081J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	08/1993 - 12/2999	1
58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58902-30060	YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS13#,LS13#..4FC,5F	12/1991 - 12/2999	1
58902-30060	GS13#,JZS13#,LS13#..4FC,5F	10/1991 - 12/1991	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-30150J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 04/1999	1
58923A - PANEL, CONSOLE REAR END
58903-30091J0	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8#	10/1991 - 12/1995	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30050	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	10/1991 - 12/1991	1
58964-30050	YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	12/1991 - 12/2999	1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-30081	GS13#,JZS13#,LS13#..4FC,5F	10/1991 - 12/1991	1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-30020	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	10/1991 - 12/1991	1
58994-30020	YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	12/1991 - 12/2999	1
Common parts
90119-08677
90176-06022
90541-04079
91661-60616
93530-54012
93540-14012
93540-54010
93567-55016
96160-00500
Linked diagrams
8401

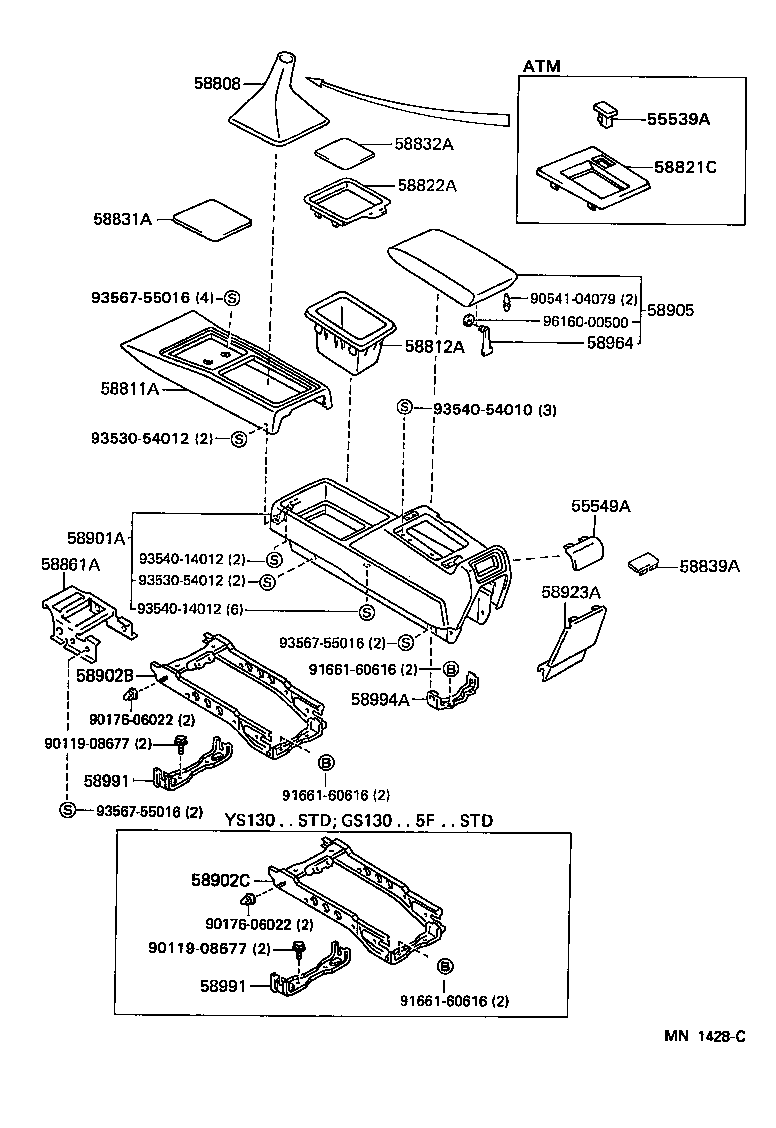

(9110- )DLX,DLXA,SDX,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
55549A - COVER, REAR COOLER SWITCH HOLE
55549-30090J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 12/2999	1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-30070J0	GS130,136,LS136..5F DK.BLUE,TRIM8#	10/1991 - 12/2999	1
58811A - BOX, CONSOLE, FRONT
58811-30240J0	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8#	10/1991 - 12/1991	1
58822A - PANEL, CONSOLE, UPPER REAR
58822-30160J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 12/2999	1
58839A - COVER, CONSOLE BOX HOLE
58839-30031	GS136,LS136..4FC,5F;GS130..(4FC,5F)..(DLX,STD)	10/1991 - 12/1995	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-30080J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 08/1993	1
58901-30081J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	08/1993 - 12/2999	1
58902B - BRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.1
58902-30060	YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS13#,LS13#..4FC,5F	12/1991 - 12/2999	1
58902-30060	GS13#,JZS13#,LS13#..4FC,5F	10/1991 - 12/1991	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-30150J0	GS130..5F;GS136,LS136..4FC,5F DK.BLUE,TRIM8#	10/1991 - 04/1999	1
58923A - PANEL, CONSOLE REAR END
58903-30091J0	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD) DK.BLUE,TRIM8#	10/1991 - 12/1995	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30050	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	10/1991 - 12/1991	1
58964-30050	YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	12/1991 - 12/2999	1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-30081	GS13#,JZS13#,LS13#..4FC,5F	10/1991 - 12/1991	1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-30081	GS13#,JZS13#,LS13#..4FC,5F	10/1991 - 12/1991	1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-30020	GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	10/1991 - 12/1991	1
58994-30020	YS130;GS130..(4H,4HC)..TWLPG;GS13#,JZS130,131,LS13#..(4FC,5F)..(DLX,SALEX,SDX,STD)	12/1991 - 12/2999	1
Common parts
90119-08677
90176-06022
90541-04079
91661-60616
93530-54012
93540-14012
93540-54010
93567-55016
96160-00500

LS136V-AXMDS (1991)

(9110- )GS130..WG..SALEX ; (9110- )GS130..SED..ATM..SALEX,SDX..HTWC ; (9110-

(9110- )DLX,DLXA,SDX,STD
