LS136V-AXMDS (1991)
Toyota Crown

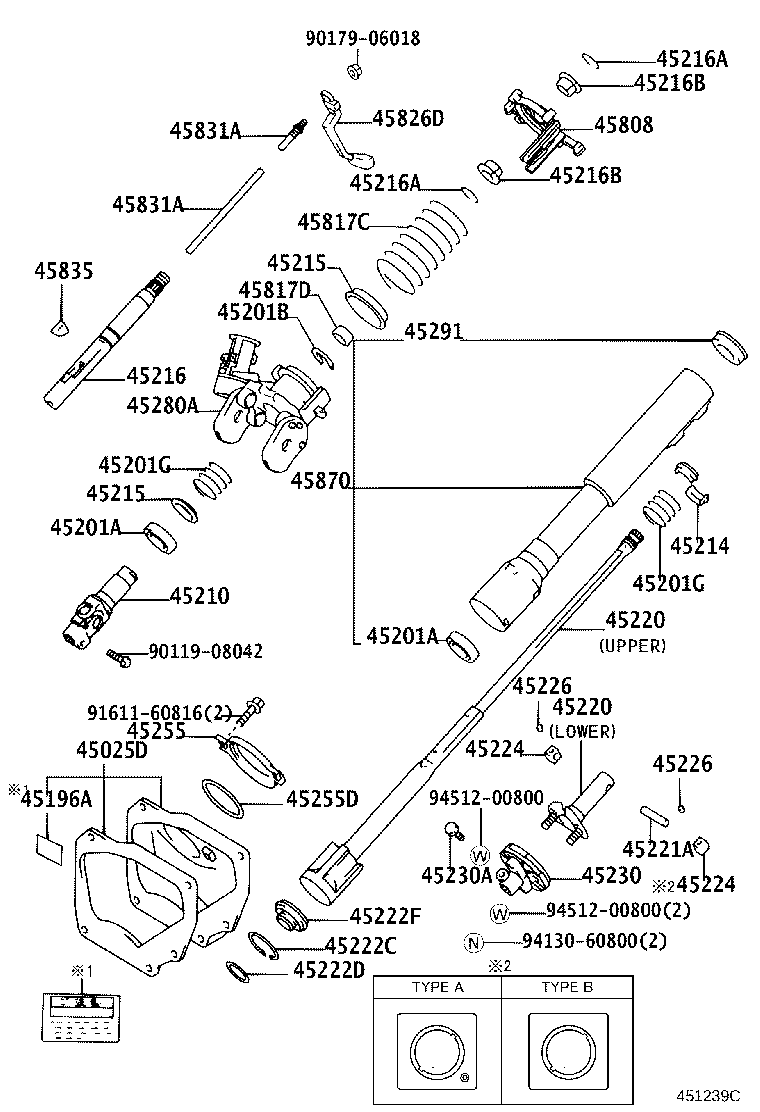

ILLUST NO. 1 OF 3(9110- )
ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130..(4FC,5F)..(DLX,SDX,STD);GS136,JZS130,LS130,136,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| 45025-30220 |
GS130,136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX,STD) ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.20 |
2 | ||
| 90520-17196 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.35−1.45 |
2 | ||
| 90520-23034 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 厚さ=1.5,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136;JZS130,131,133..4HC |
1 | ||
| 90501-29388 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),下側 |
1 | ||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136,YS130;GS130,JZS130,131,133..(4H,4HC)..(TWC,TWLPG) |
1 | ||
| 90501-45011 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90501-29388 |
GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136;JZS130,131,133..4HC |
1 | ||
| 90501-29388 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),下側 |
1 | ||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136,YS130;GS130,JZS130,131,133..(4H,4HC)..(TWC,TWLPG) |
1 | ||
| 90501-45011 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90501-29388 |
GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45210-30090 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG ﾘｼﾞﾂﾄﾞ ｽﾃｱﾘﾝｸﾞ |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS13#,JZS13#,LS13# |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,135,LS130,136..(4FC,5F)..(DLX,ROYG,SALEX,SDX) |
1 | ||
| 45215-22011 |
GS130..WG..SALEX;GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS13#,JZS13#,LS13# |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13# |
1 | ||
| 90521-52003 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90301-23054 |
GS13#,JZS13#,LS13# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90101-08230 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS13#,JZS13#,LS13# |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30430 |
GS130,136,LS136..5F..DLX ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ﾏﾆﾕｱﾙ ｼｷ) |
1 | ||
| 45280-30470 |
GS130..4H;GS130..5F..(DLX,STD);GS136,LS136,YS130..MTM |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30230 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45870-30170 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG |
1 | ||
| 45870-30220 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 91611-60816 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

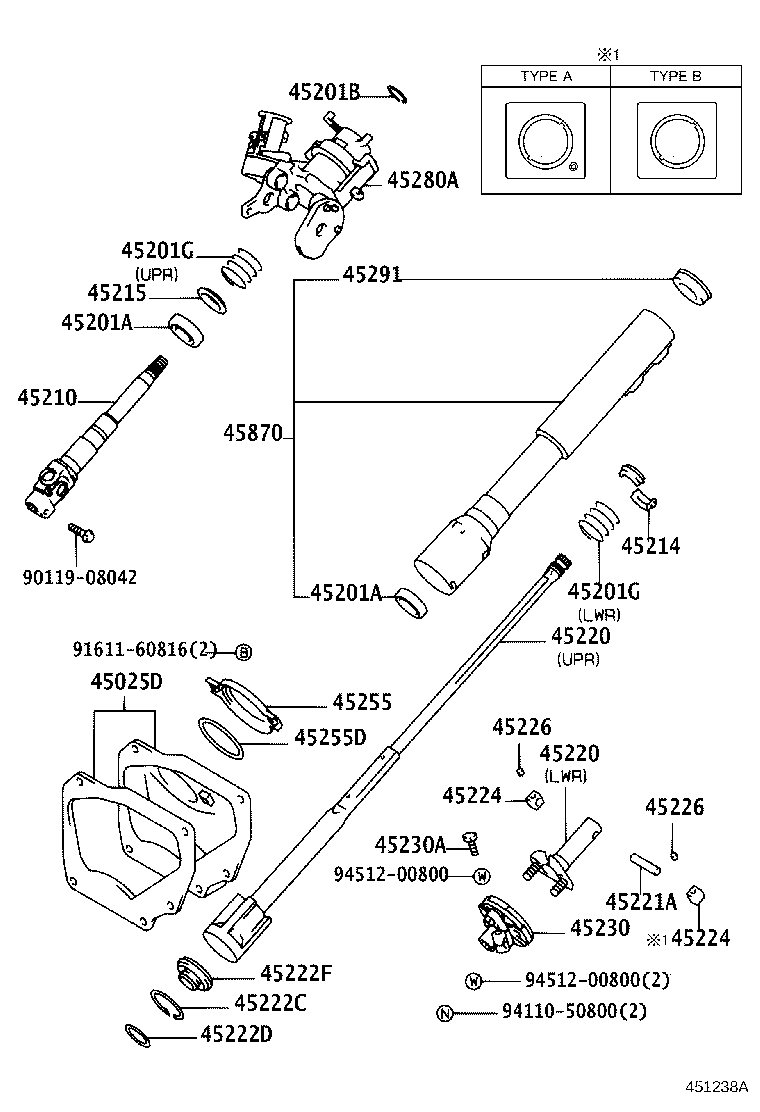

ILLUST NO. 1 OF 3(9110- )
ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130..(4FC,5F)..(DLX,SDX,STD);GS136,JZS130,LS130,136,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| 45025-30220 |
GS130,136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX,STD) ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 45196A - LABEL, STEERING SHAFT INSTAL CAUTION | ||||
| 45196-30010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.20 |
2 | ||
| 90520-17196 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.35−1.45 |
2 | ||
| 90520-23034 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 厚さ=1.5,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136;JZS130,131,133..4HC |
1 | ||
| 90501-29388 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),下側 |
1 | ||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136,YS130;GS130,JZS130,131,133..(4H,4HC)..(TWC,TWLPG) |
1 | ||
| 90501-45011 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90501-29388 |
GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136;JZS130,131,133..4HC |
1 | ||
| 90501-29388 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),下側 |
1 | ||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136,YS130;GS130,JZS130,131,133..(4H,4HC)..(TWC,TWLPG) |
1 | ||
| 90501-45011 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90501-29388 |
GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45210-30090 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG ﾘｼﾞﾂﾄﾞ ｽﾃｱﾘﾝｸﾞ |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS13#,JZS13#,LS13# |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,135,LS130,136..(4FC,5F)..(DLX,ROYG,SALEX,SDX) |
1 | ||
| 45215-22011 |
GS130..WG..SALEX;GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,135,LS130,136..(4FC,5F)..(DLX,ROYG,SALEX,SDX) |
1 | ||
| 45215-22011 |
GS130..WG..SALEX;GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS13#,JZS13#,LS13# |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13# |
1 | ||
| 90521-52003 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90301-23054 |
GS13#,JZS13#,LS13# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90101-08230 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS13#,JZS13#,LS13# |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30430 |
GS130,136,LS136..5F..DLX ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ﾏﾆﾕｱﾙ ｼｷ) |
1 | ||
| 45280-30470 |
GS130..4H;GS130..5F..(DLX,STD);GS136,LS136,YS130..MTM |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30230 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45870-30170 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG |
1 | ||
| 45870-30220 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90179-06018 | ||||
| 91611-60816 | ||||
| 94130-60800 | ||||
| 94512-00800 | ||||
ILLUST NO. 1 OF 2(9110- )

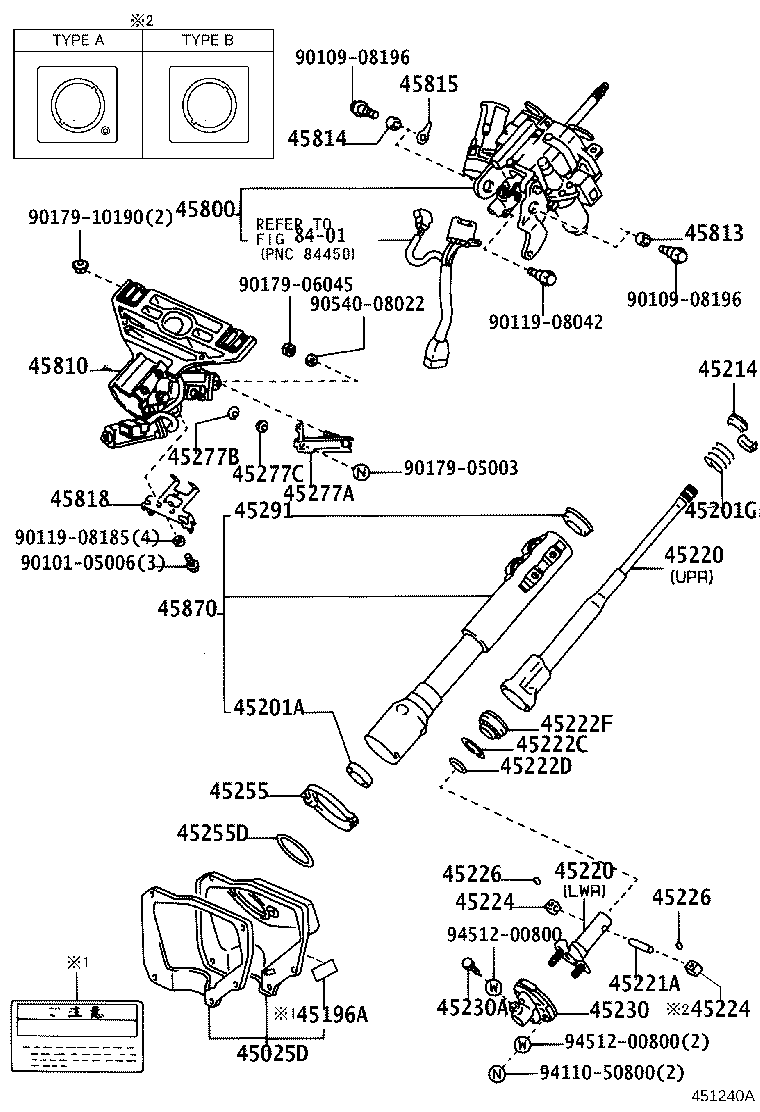

ﾃﾞﾝﾄﾞｳﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130..(4FC,5F)..(DLX,SDX,STD);GS136,JZS130,LS130,136,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| 45025-30220 |
GS130,136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX,STD) ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 45196A - LABEL, STEERING SHAFT INSTAL CAUTION | ||||
| 45196-30010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136;JZS130,131,133..4HC |
1 | ||
| 90501-29388 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),下側 |
1 | ||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136,YS130;GS130,JZS130,131,133..(4H,4HC)..(TWC,TWLPG) |
1 | ||
| 90501-45011 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90501-29388 |
GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS13#,JZS13#,LS13# |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS13#,JZS13#,LS13# |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13# |
1 | ||
| 90521-52003 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90301-23054 |
GS13#,JZS13#,LS13# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90101-08230 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS13#,JZS13#,LS13# |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-30120 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45277B - CUSHION(FOR TILT STEERING SUPPORT) | ||||
| 90540-07005 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45277C - SPACER(FOR TILT STEERING SUPPORT) | ||||
| 90561-05003 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45800 - GEAR ASSY, TELESCOPIC STEERING, W/MOTOR | ||||
| 45800-30090 |
GS130,136,LS136..5F |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-30070 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45814-30100 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.989−19.996,ｱﾘ(*80) |
1 | ||
| 45814-30120 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.003−20.010,ｱﾘ(*80) |
1 | ||
| 45814-30090 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30130 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.010−20.017,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30140 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.017−20.024,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30140 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.017−20.024,ｱﾘ(*80) |
1 | ||
| 45814-30120 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.003−20.010,ｱﾘ(*80) |
1 | ||
| 45813-20040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.010−18.017,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20050 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.017−18.024,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20030 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.003−18.010,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-30100 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.989−19.996,ｱﾘ(*80) |
1 | ||
| 45814-30130 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.010−20.017,ｱﾘ(*80) |
1 | ||
| 45813-20020 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.996−18.003,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20060 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.989−17.996,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-20010 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.996−18.003,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20020 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.003−18.010,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20050 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.989−17.996,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-30090 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-20030 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.010−18.017,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.017−18.024,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20050 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=1.8 |
1 | ||
| 45815-20040 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.5 |
1 | ||
| 45815-20030 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.8 |
1 | ||
| 45815-20010 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.2 |
1 | ||
| 45818 - BRACKET, CONNECTOR | ||||
| 45818-30080 |
GS13#,JZS13#,LS13#..4FC,5F |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30230 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45870-30170 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG |
1 | ||
| 45870-30220 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| Common parts | ||||
| 90101-05006 | ||||
| 90109-08196 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90179-05003 | ||||
| 90179-06045 | ||||
| 90179-10190 | ||||
| 90540-08022 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30180 |
GS130..(4FC,5F)..(DLX,SDX,STD);GS136,JZS130,LS130,136,YS130..(4FC,5F)..(DLX,SALEX,SDX,STD) |
1 | ||
| 45025-30220 |
GS130,136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX,STD) ｱﾘ(ｷｶｲｼｷ *80) |
1 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30120 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45082-30110 |
GS130..WG;GS130..DLX,STD;GS130..4H..TWLPG;GS136,LS136,YS130..4FC,4H,5F |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13# 下側 |
1 | ||
| 90363-18038 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 上側 |
1 | ||
| 90369-43004 |
GS13#,JZS130,131,133,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90363-28001 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#,YS130 下側 |
1 | ||
| 90369-43004 |
GS13#,JZS13#,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| 90369-43004 |
JZS135..4HC;GS13#,JZS130,131,133,LS13#,YS130 下側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.20 |
2 | ||
| 90520-17196 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.35−1.45 |
2 | ||
| 90520-23034 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 厚さ=1.5,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.20 |
2 | ||
| 90520-17196 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG 厚さ=1.35−1.45 |
2 | ||
| 90520-23034 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 厚さ=1.5,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136;JZS130,131,133..4HC |
1 | ||
| 90501-29388 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),下側 |
1 | ||
| 90501-29388 |
GS130..WG;GS130..DLX,STD;GS136,JZS135,LS136,YS130;GS130,JZS130,131,133..(4H,4HC)..(TWC,TWLPG) |
1 | ||
| 90501-45011 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 90501-29388 |
GS130..DLX,STD;GS130..WG..4FC;GS136,LS136,YS130;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-30060 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45210-30090 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG ﾘｼﾞﾂﾄﾞ ｽﾃｱﾘﾝｸﾞ |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-30040 |
GS13#,JZS13#,LS13# |
2 | ||
| 45214-30040 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-30040 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45220-30070 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ),上側 |
1 | ||
| 45220-30080 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(ｷｶｲｼｷ *80),上側 |
1 | ||
| 45220-30040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ & *80),下側 |
1 | ||
| 45221A - PIN(FOR STEERING INTERMEDIATE SHAFT) | ||||
| 90250-10059 |
GS13#,JZS13#,LS13# |
1 | ||
| 90250-10059 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222C - RING, HOLE SNAP(FOR DUST COVER) | ||||
| 90521-52003 |
GS13#,JZS13#,LS13# |
1 | ||
| 90521-52003 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222D - RING, O(FOR DUST COVER) | ||||
| 90301-23054 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90301-23054 |
GS13#,JZS13#,LS13# |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-30030 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45222-30030 |
GS13#,JZS13#,LS13# |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-30040 |
GS13#,JZS13#,LS13# 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13#,YS130 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45224-30040 |
GS13#,JZS13#,LS13# 15.97−16.00,TYPE A:ｲﾗｽﾄ参照 |
2 | ||
| 45225-30040 |
GS13#,JZS13#,LS13#,YS130 16.00−16.03,TYPE B:ｲﾗｽﾄ参照 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226 - ANTI-RATTLE(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45226-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 45226-30021 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45226-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30160 |
GS13#,JZS13#,LS13# |
1 | ||
| 45230-30160 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 90101-08230 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 45255-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-59005 |
GS13#,JZS13#,LS13# |
1 | ||
| 90301-59005 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-10010 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45269-10010 |
GS130..DLX,STD;GS136,LS136,YS130;GS130..WG..4FC..SDX;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-30430 |
GS130,136,LS136..5F..DLX ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ﾏﾆﾕｱﾙ ｼｷ) |
1 | ||
| 45280-30470 |
GS130..4H;GS130..5F..(DLX,STD);GS136,LS136,YS130..MTM |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-30050 |
GS130..DLX,STD;GS136,LS136,YS130;GS130..WG..4FC..SDX;GS130,JZS13#..(4H,4HC)..(ROY,ROYG,SALEX,SDX) |
1 | ||
| 45289-30050 |
JZS13#..4HC;GS130..DLX,STD;GS130,136,LS136..V,WG |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-30230 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45870-30170 |
GS130..DLX,STD;JZS130,131..4HC;GS130,136,LS136..V,WG |
1 | ||
| 45870-30220 |
GS13#,JZS130,131,LS13#..4FC,5F ｱﾘ(*80) |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90179-10053 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

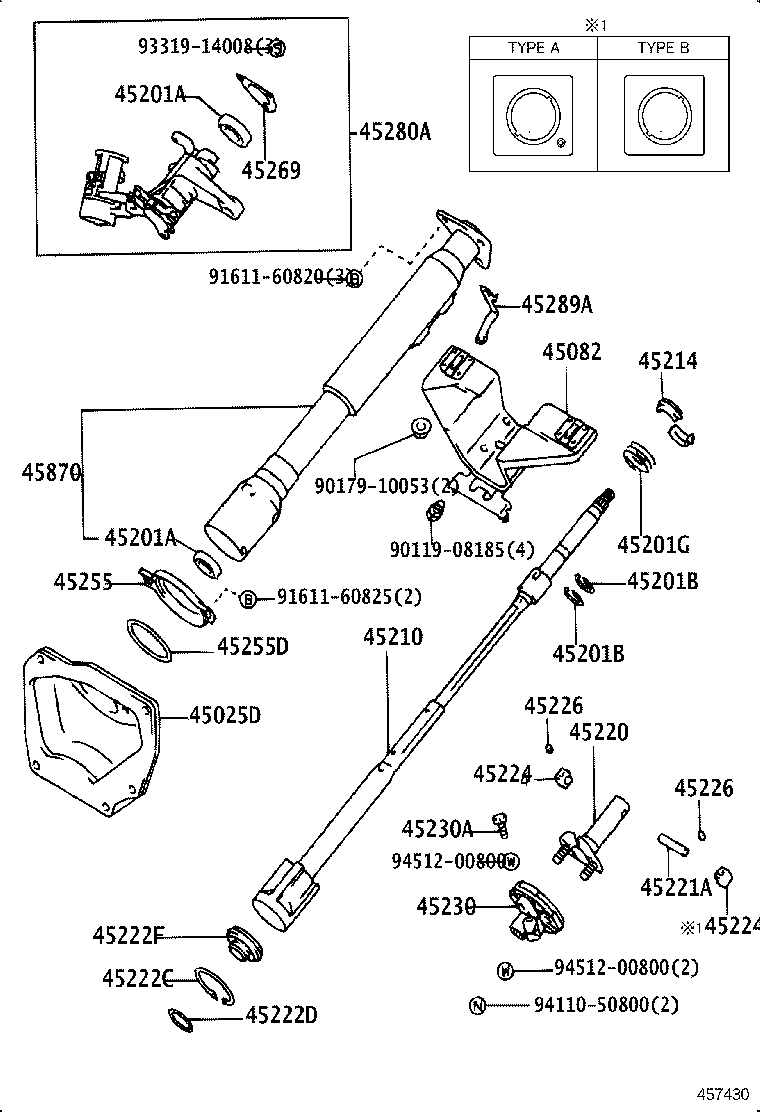

ILLUST NO. 2 OF 3(9110- )
ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
2 | ||
| 90506-29005 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02043 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 長さ=130 |
2 | ||
| 90945-02070 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 長さ=133 |
2 | ||
| 90945-02043 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 長さ=130 |
2 | ||
| 90945-02070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 長さ=133 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30120 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45082-30110 |
GS130..WG;GS130..DLX,STD;GS130..4H..TWLPG;GS136,LS136,YS130..4FC,4H,5F |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30030 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45804-30030 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45809-30040 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45814-30100 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.989−19.996,ｱﾘ(*80) |
1 | ||
| 45814-30120 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.003−20.010,ｱﾘ(*80) |
1 | ||
| 45814-30090 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30130 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.010−20.017,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30140 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.017−20.024,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30140 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.017−20.024,ｱﾘ(*80) |
1 | ||
| 45814-30120 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.003−20.010,ｱﾘ(*80) |
1 | ||
| 45813-20040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.010−18.017,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20050 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.017−18.024,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20030 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.003−18.010,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-30100 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.989−19.996,ｱﾘ(*80) |
1 | ||
| 45814-30130 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.010−20.017,ｱﾘ(*80) |
1 | ||
| 45813-20020 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.996−18.003,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20060 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.989−17.996,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-20010 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.996−18.003,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20020 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.003−18.010,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20050 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.989−17.996,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-30090 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-20030 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.010−18.017,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.017−18.024,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20050 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=1.8 |
1 | ||
| 45815-20040 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.5 |
1 | ||
| 45815-20030 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.8 |
1 | ||
| 45815-20010 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30010 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30010 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 90387-08040 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 90540-08010 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 上側 |
1 | ||
| 90506-13001 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 上側 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 上側 |
1 | ||
| 90506-13001 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 上側 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 上側 |
1 | ||
| 90506-13001 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 上側 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30070 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30070 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-30010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45898-30010 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-30010 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45899-30010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10190 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 91611-60840 | ||||
| 91621-60612 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
ILLUST NO. 2 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13# |
1 | ||
| 45283-22010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||

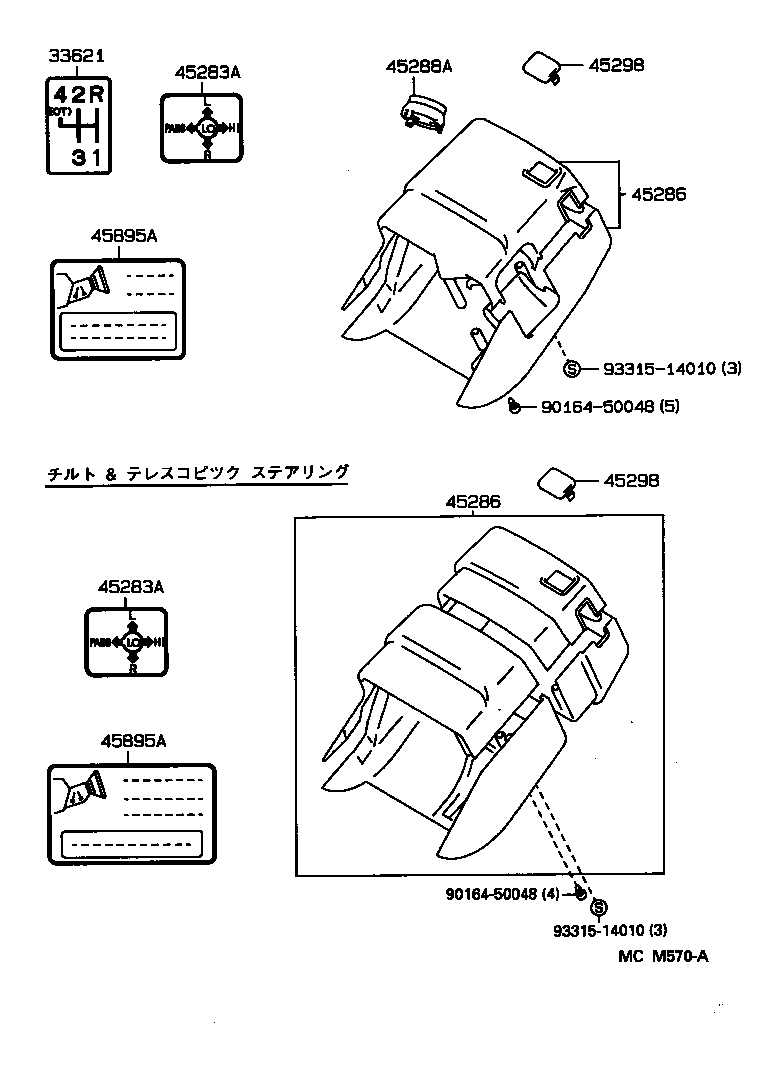

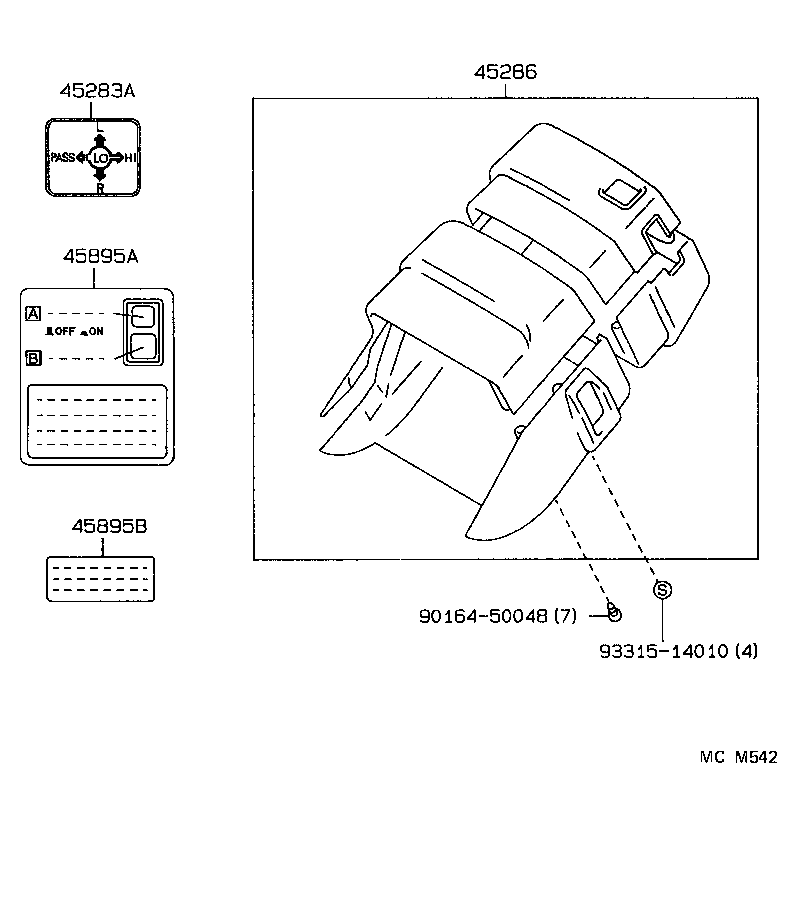

| 45286 - COVER, STEERING COLUMN | ||||
| 45287-30951J0 |
GS130,136,LS136..5F ｱﾘ(ｷｶｲｼｷ *80),DARK BLUE,TRIM8# |
1 | ||
| 45287-30918J0 |
GS130,136,LS136..5F..DLX ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ﾏﾆﾕｱﾙ ｼｷ),DARK BLUE,TRIM8# |
1 | ||
| 45287-30917J0 |
GS130,136,LS136..5F..(DLX,STD) DARK BLUE,TRIM8# |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22050 |
JZS131..4FC..ROY;GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,133,LS130,136..4FC,5F ｱﾘ(*80) |
1 | ||
| 45895-30130 |
GS130,136,LS136..5F..(DLX,SDX) |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
ILLUST NO. 3 OF 3(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13# |
1 | ||
| 45283-22010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GS13#,JZS13#,LS13# |
1 | ||
| 45283-22010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-30951J0 |
GS130,136,LS136..5F ｱﾘ(ｷｶｲｼｷ *80),DARK BLUE,TRIM8# |
1 | ||
| 45287-30918J0 |
GS130,136,LS136..5F..DLX ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ﾏﾆﾕｱﾙ ｼｷ),DARK BLUE,TRIM8# |
1 | ||
| 45287-30917J0 |
GS130,136,LS136..5F..(DLX,STD) DARK BLUE,TRIM8# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-30951J0 |
GS130,136,LS136..5F ｱﾘ(ｷｶｲｼｷ *80),DARK BLUE,TRIM8# |
1 | ||
| 45287-30918J0 |
GS130,136,LS136..5F..DLX ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ﾏﾆﾕｱﾙ ｼｷ),DARK BLUE,TRIM8# |
1 | ||
| 45287-30917J0 |
GS130,136,LS136..5F..(DLX,STD) DARK BLUE,TRIM8# |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-30020 |
GS136;GS130,LS136..DLX,STD |
1 | ||
| 45288-30020 |
GS130..DLX,STD;GS136,LS136,YS130;GS130..SDX..TWLPG |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22050 |
JZS131..4FC..ROY;GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,133,LS130,136..4FC,5F ｱﾘ(*80) |
1 | ||
| 45895-30130 |
GS130,136,LS136..5F..(DLX,SDX) |
1 | ||
| 45895A - PLATE, TILT STEERING CAUTION | ||||
| 45895-22050 |
JZS131..4FC..ROY;GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,133,LS130,136..4FC,5F ｱﾘ(*80) |
1 | ||
| 45895-30130 |
GS130,136,LS136..5F..(DLX,SDX) |
1 | ||
| Common parts | ||||
| 90164-50048 | ||||
| 93315-14010 | ||||
ILLUST NO. 2 OF 3(9110- )
ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-29005 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
2 | ||
| 90506-29005 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02043 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 長さ=130 |
2 | ||
| 90945-02070 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 長さ=133 |
2 | ||
| 90945-02043 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 長さ=130 |
2 | ||
| 90945-02070 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 長さ=133 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-30120 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45082-30110 |
GS130..WG;GS130..DLX,STD;GS130..4H..TWLPG;GS136,LS136,YS130..4FC,4H,5F |
1 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-30030 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45804-30030 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-30040 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45809-30040 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45814-30100 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.989−19.996,ｱﾘ(*80) |
1 | ||
| 45814-30120 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.003−20.010,ｱﾘ(*80) |
1 | ||
| 45814-30090 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30130 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.010−20.017,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30140 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=20.017−20.024,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30140 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.017−20.024,ｱﾘ(*80) |
1 | ||
| 45814-30120 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.003−20.010,ｱﾘ(*80) |
1 | ||
| 45813-20040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.010−18.017,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20050 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.017−18.024,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20030 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.003−18.010,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-30100 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.989−19.996,ｱﾘ(*80) |
1 | ||
| 45814-30130 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=20.010−20.017,ｱﾘ(*80) |
1 | ||
| 45813-20020 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.996−18.003,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45813-20060 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.989−17.996,ｱﾘ(ﾁﾙﾄ & ﾃﾚｽｺﾋﾟﾂｸ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-30090 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-30110 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.996−20.003,ｱﾘ(*80) |
1 | ||
| 45814-20010 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.996−18.003,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20020 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.003−18.010,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20050 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=17.989−17.996,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-30090 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 外径=19.982−19.989,ｱﾘ(*80) |
1 | ||
| 45814-20030 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.010−18.017,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45814-20040 |
GS130..(4FC,5F)..DLX;GS130,136,LS136..(V,WG)..(4FC,5F) 外径=18.017−18.024,ｱﾘ(ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ) |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20050 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=1.8 |
1 | ||
| 45815-20040 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=1.4 |
1 | ||
| 45815-20020 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.5 |
1 | ||
| 45815-20030 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.8 |
1 | ||
| 45815-20010 |
GS13#,JZS13#,LS13#..4FC,5F 厚さ=0.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-30010 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08040 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 90387-08040 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-08010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 90540-08010 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 上側 |
1 | ||
| 90506-13001 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 上側 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-10011 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) 上側 |
1 | ||
| 90506-13001 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) 下側 |
1 | ||
| 90507-10011 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) 上側 |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45826E - LEVER, STEERING TILT(FOR TILT ADJUST) | ||||
| 45826-30070 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-30040 |
GS130..(4FC,5F)..(DLX,SDX);GS136,JZS130,LS130,136..(4FC,5F)..(DLX,SALEX,SDX) |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-30010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| 45898-30010 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-30010 |
GS13#,JZS130,131,133,LS13#..(4FC,5F)..(DLX,ROY,SALEX,SDX) |
1 | ||
| 45899-30010 |
GS13#,JZS13#,LS13#..(4FC,5F)..(DLX,ROY,ROYG,SALEX,SDX) |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08185 | ||||
| 90179-10190 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90560-13008 | ||||
| 90560-18007 | ||||
| 90561-15004 | ||||
| 91611-60840 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
