LS136V-AXMDS (1991)
Toyota Crown
Production
Oct 1991
-
Sep 1994
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9110- )5F

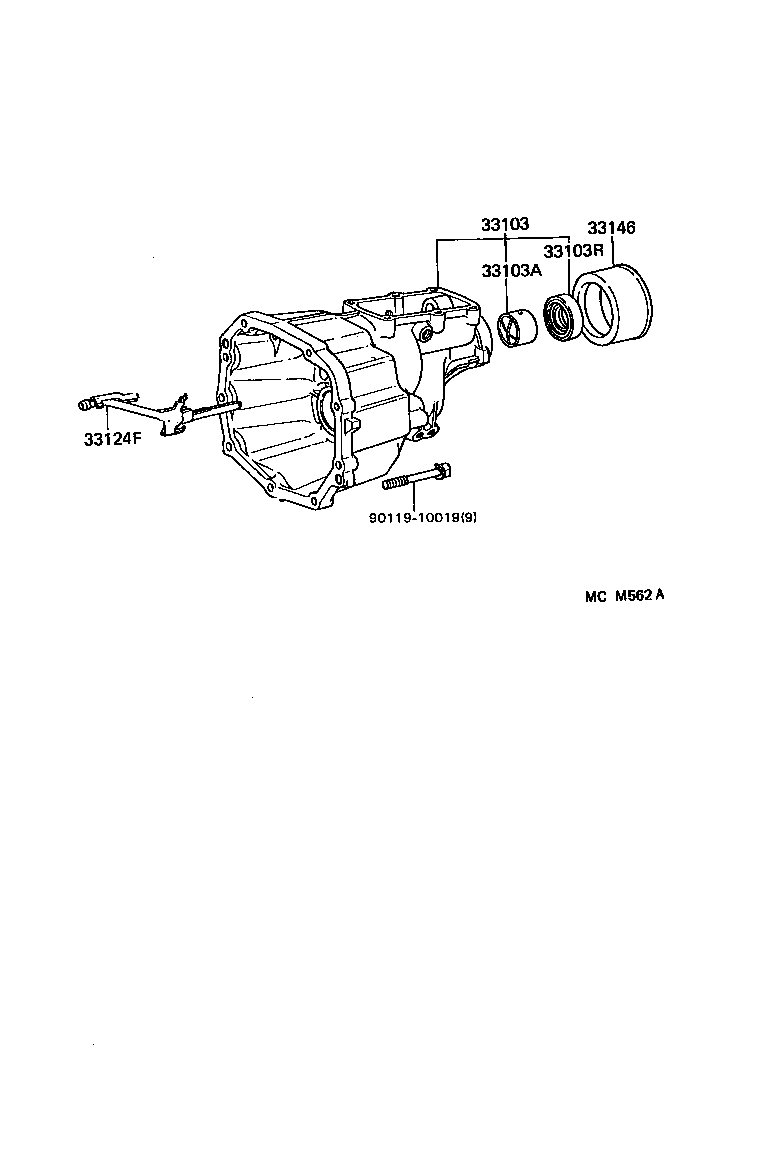

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-30201 |
GS130,136,LS136..5F |
1 | ||
| 33103-30200 |
GS130,136,LS136..5F |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-73105 |
GS130,136,LS136..5F |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38032 |
GS130,136,LS136,YS130..MTM |
1 | ||
| 33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING) | ||||
| 33106-30040 |
GS130,136,LS136..5F |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
GS130,136,LS136,YS130..MTM |
1 | ||
| Common parts | ||||
| 90119-10019 | ||||
