LS131H-AEPJJ (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )LS13#

Click highlighted areas on diagram

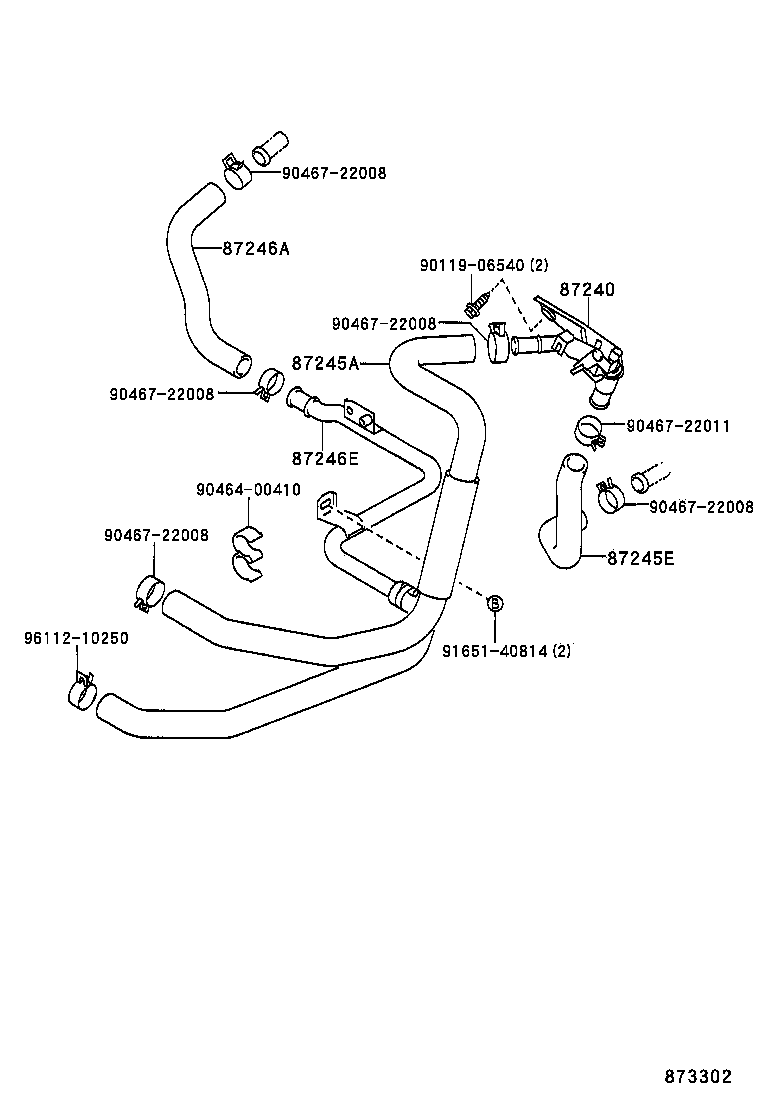

diagram 87240 87245A 87245E 87246A 87246E 9011906540 9046400410 9046722008 9046722008 9046722008 9046722008 9046722008 9046722011 9165140814 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30510

LS13#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A440

JZS130,131

 1
87245-3A250

LS13#

 1
87245-3A850

JZS130,131

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3A670

LS130,131;GS130,136..STD

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A260

GS13#,LS13#,YS130

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30430

LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A270

GS130,LS13#..DSL,TDE,TDEC,TWLPG

 1
87246E - HOSE, HEATER WATER, OUTLET E
87209-30320

LS13#

 1
Common parts
90119-06540
90464-00410
90467-22008
90467-22011
91651-40814
96112-10250

(9110- )LS130,131

Click highlighted areas on diagram

ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ

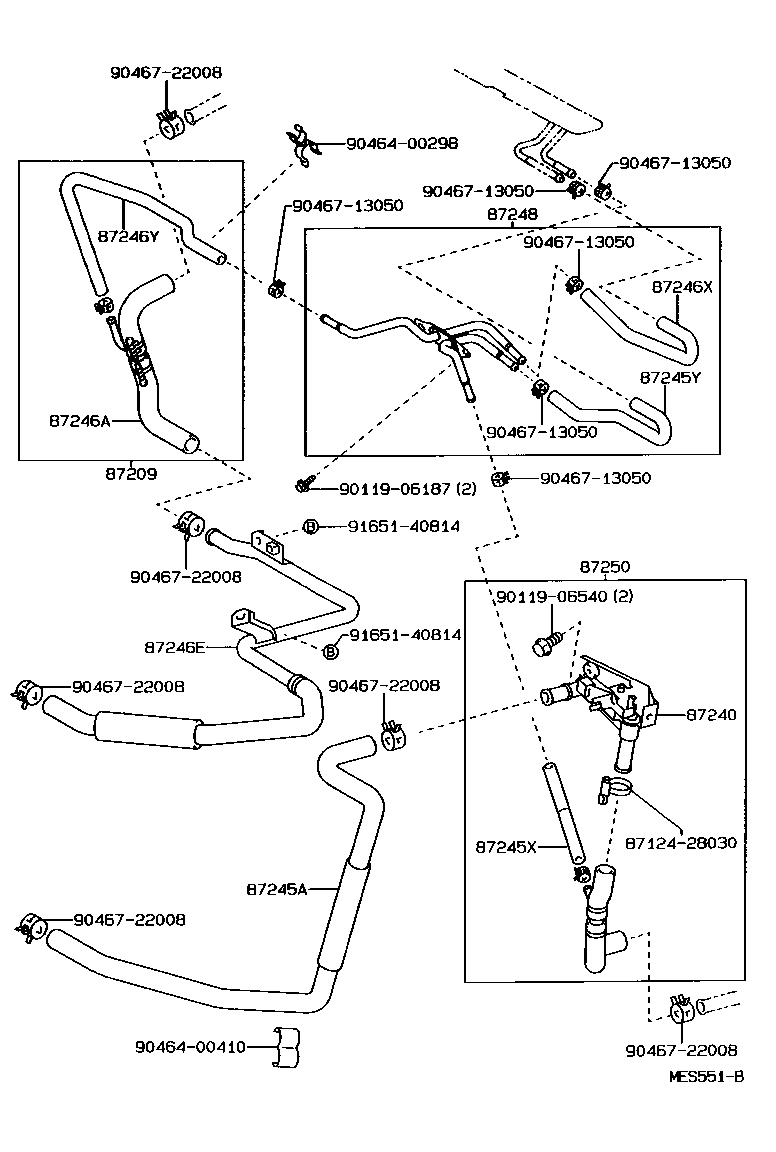

diagram 8712428030 87209 87240 87245A 87245X 87245Y 87246A 87246E 87246X 87246Y 87248 87250 9011906187 9011906540 9046400298 9046400410 9046713050 9046713050 9046713050 9046713050 9046713050 9046713050 9046722008 9046722008 9046722008 9046722008 9046722008 9046722008 9165140814 9165140814
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-30460

LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87209-30400

LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87240 - VALVE ASSY, HEATER WATER
87240-30510

LS13#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3A440

JZS130,131

 1
87245-3A250

LS13#

 1
87245-3A850

JZS130,131

 1
87245X - HOSE, HEATER WATER
87245-3A670

GS13#,LS130,131..HTWC,TDEC

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A670

LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245Y - HOSE, HEATER WATER
87245-3A650

GS13#,JZS13#,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-30430

LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87245-3A270

GS130,LS13#..DSL,TDE,TDEC,TWLPG

 1
87246E - HOSE, HEATER WATER, OUTLET E
87209-30320

LS13#

 1
87246X - HOSE, HEATER WATER
87245-3A640

GS13#,JZS13#,LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87246Y - HOSE, HEATER WATER
87245-3A680

LS130,131

 1
87248 - PIPE SUB-ASSY, WATER
87248-30340

GS13#,JZS13#,LS130,131..HTWC,TDE,TDEC,TWC

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
87250 - HOSE AND VALVE ASSY
87250-30110

LS130,131

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
Common parts
87124-28030
90119-06187
90119-06540
90464-00298
90464-00410
90467-13050
90467-22008
91651-40814
