LS131H-AEPJJ (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )

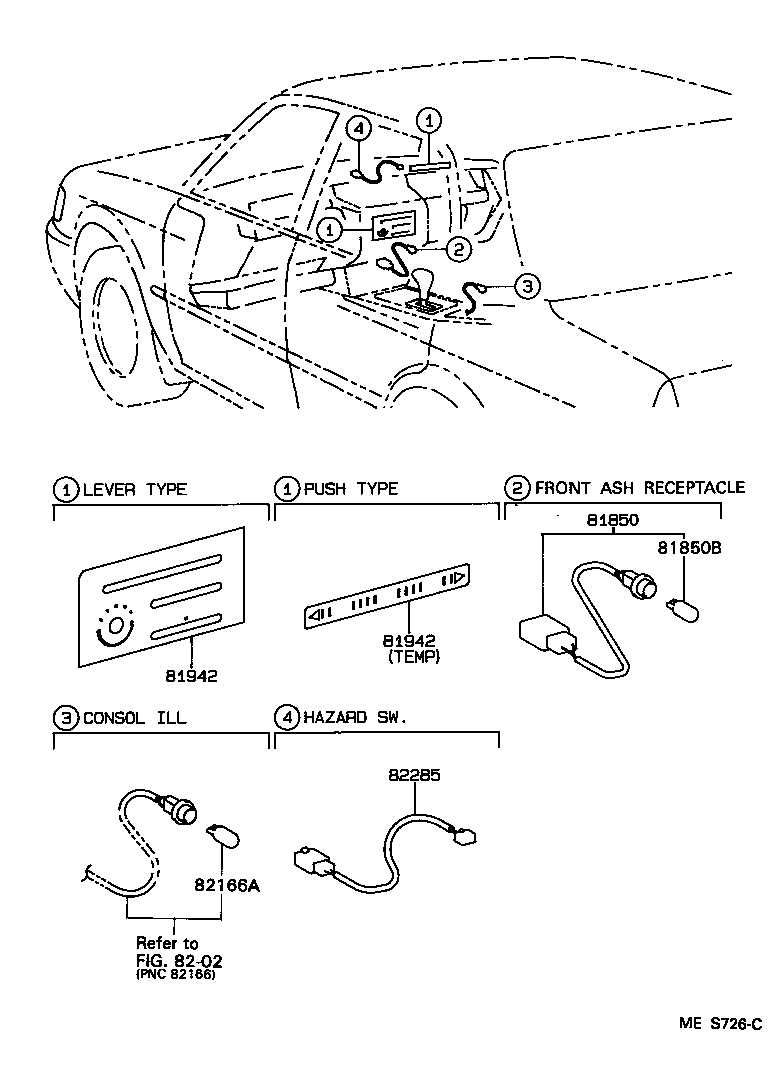

Click highlighted areas on diagram

diagram 81850 81850B 81942 81942 8202 82166A 82285
Part # Description Qty Price
81850 - LAMP ASSY, INDICATOR
81850-33010

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

 1
81850B - BULB, INDICATOR LAMP
90981-11014

GS13#,JZS13#,LS13#,YS130..DLX,DLXA,ROY,ROYG,SALEX,SDX

14V 1.4W

 1
82285 - WIRE, ILLUMINATION
82285-30060

GS13#,JZS13#,LS13#..(DLX,ROY,ROYG,SALEX,SDX)..(DSL,HTWC,TDE,TDEC,TWC)

 1
Linked diagrams
8202
