LS131-ATPSJ (1989)
Toyota Crown
Production
Aug 1989
-
Oct 1991
Engine
2LTHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

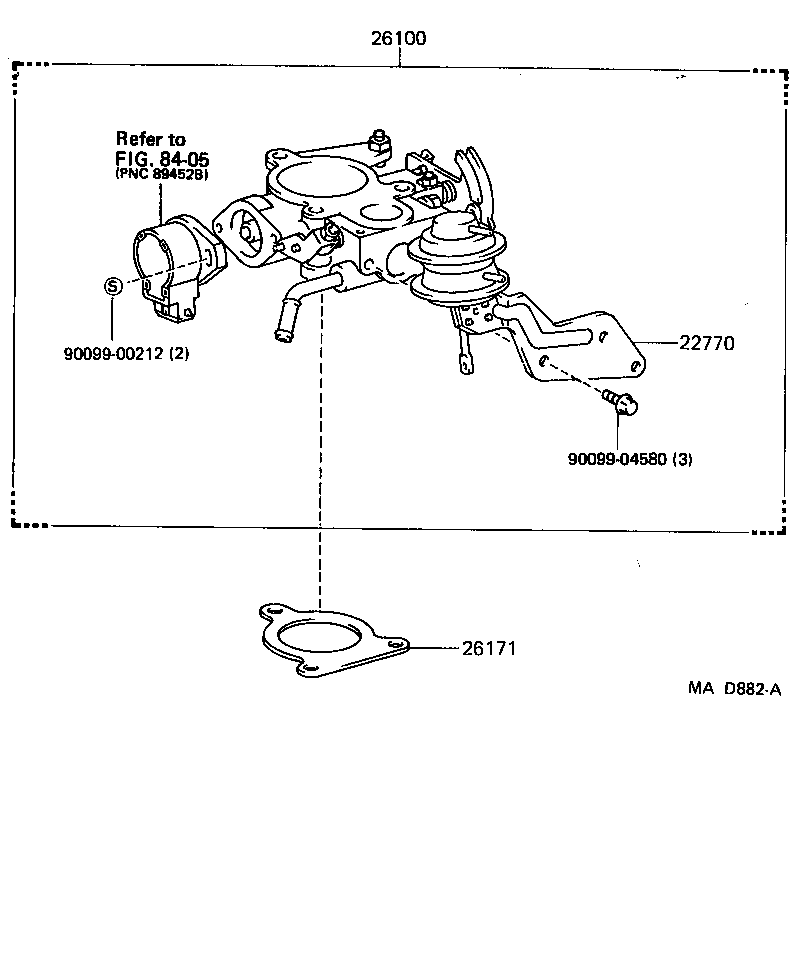

(8908- )2L,2LT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54110 |
2LTHE..LS130,131 |
1 | ||
| 26133-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54110 |
2LTHE..LS130,131 |
1 | ||
| 26133-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54110 |
2LTHE..LS130,131 |
1 | ||
| 26133-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-54200 |
2LTHE..LS130,131 |
1 | ||
| 26100-54180 |
2LTHE..LS130,131 |
1 | ||
| 26100-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-54200 |
2LTHE..LS130,131 |
1 | ||
| 26100-54180 |
2LTHE..LS130,131 |
1 | ||
| 26100-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 17116-54021 |
2L,2LT#..LS13# |
1 | ||
| 26171-54010 |
2L,2LT#..LS13# |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 17116-54021 |
2L,2LT#..LS13# |
1 | ||
| 26171-54010 |
2L,2LT#..LS13# |
1 | ||
| Common parts | ||||
| 90091-00891 | ||||
| 90099-04580 | ||||
| 90925-01015 | ||||
| 90925-06006 | ||||
| 90999-92002 | ||||

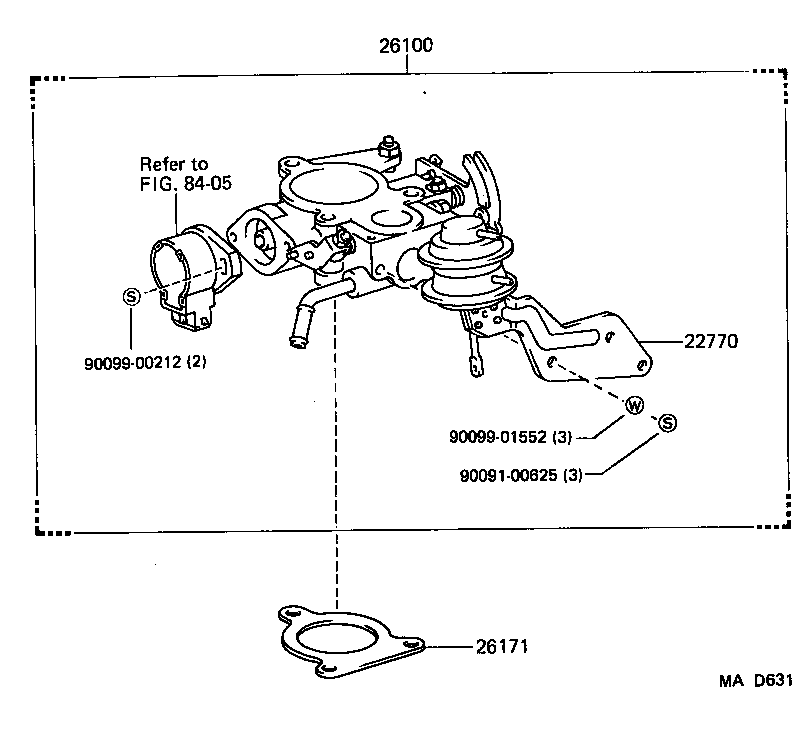

(8908- )2LTHE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22770 - ACTUATOR, IDEL UP | ||||
| 26133-54110 |
2LTHE..LS130,131 |
1 | ||
| 26133-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 26100 - VENTURI ASSY | ||||
| 26100-54200 |
2LTHE..LS130,131 |
1 | ||
| 26100-54180 |
2LTHE..LS130,131 |
1 | ||
| 26100-54170 |
2L..LS136..4FC;2L,2LT..LS130,131 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 17116-54021 |
2L,2LT#..LS13# |
1 | ||
| 26171-54010 |
2L,2LT#..LS13# |
1 | ||
| Common parts | ||||
| 90091-00625 | ||||
| 90099-00212 | ||||
| 90099-01552 | ||||
| Linked diagrams | ||||
| 8405 | ||||

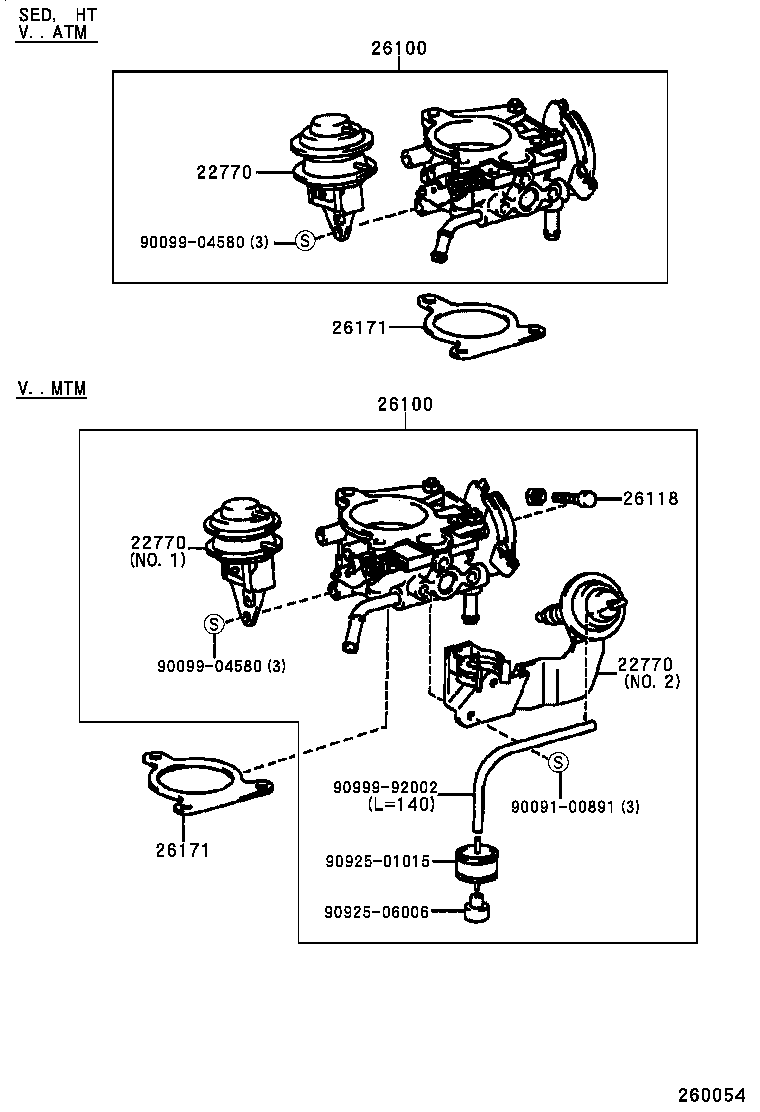

(9110-9512)2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-00212 | ||||
| 90099-04580 | ||||
| Linked diagrams | ||||
| 8405 | ||||

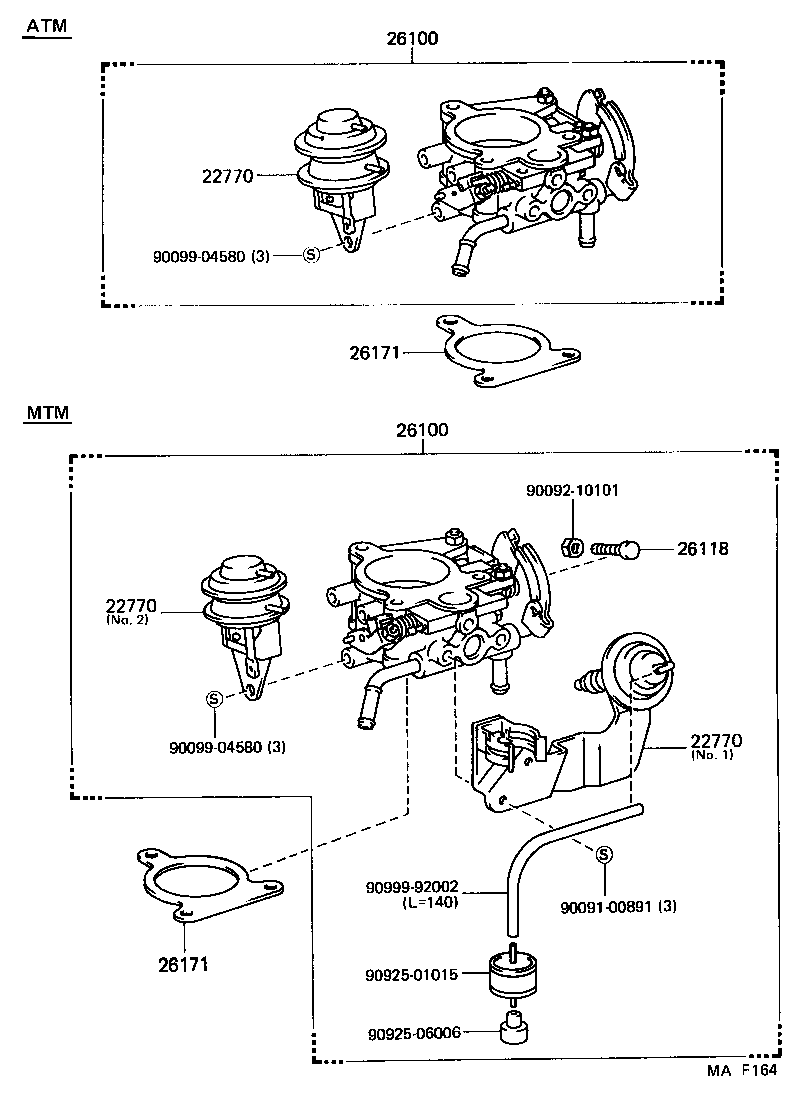

(9110-9409)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90091-00891 | ||||
| 90092-10101 | ||||
| 90099-04580 | ||||
| 90925-01015 | ||||
| 90925-06006 | ||||
| 90999-92002 | ||||
