LS131-ATPJJ (1989)

Toyota Crown

Production Aug 1989 - Oct 1991
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )GS131,JZS131,LS131,MS13#,UZS131

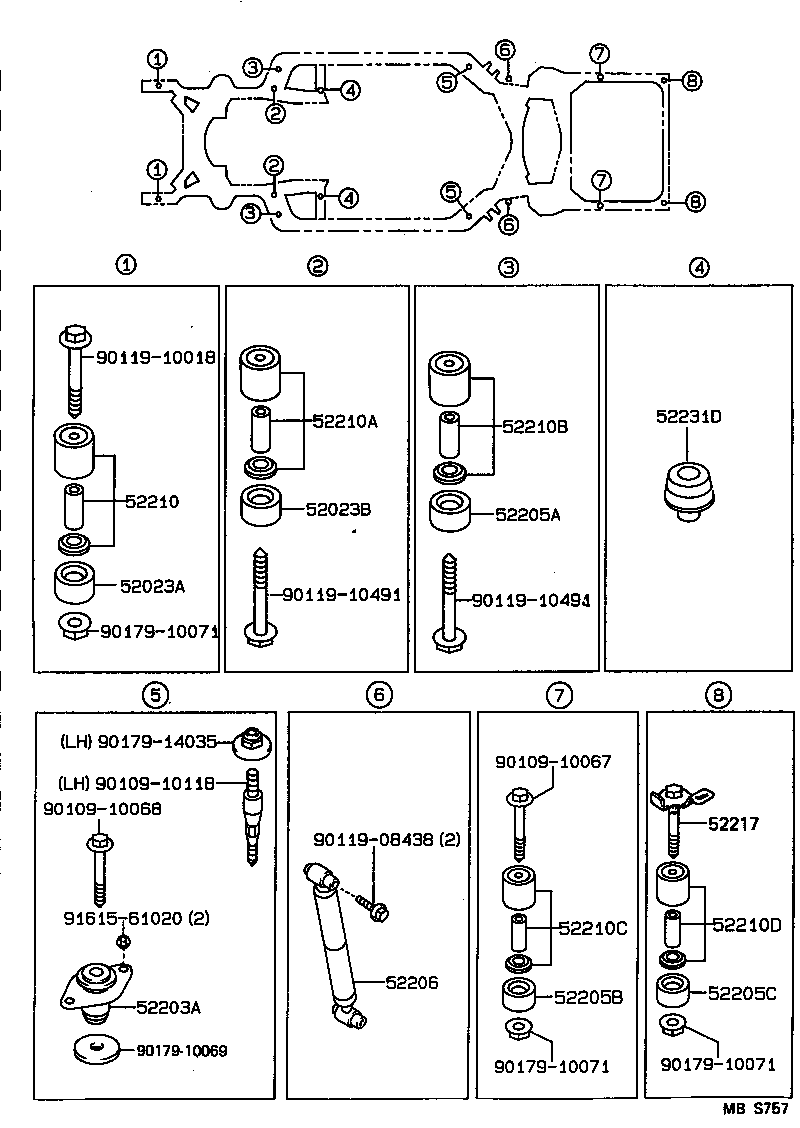

Click highlighted areas on diagram

diagram 52023A 52023B 52203A 52205A 52205B 52205C 52206 52210 52210A 52210B 52210C 52210D 52217 52231D 9010910067 9010910068 9010910118 9011908438 9011910018 9011910491 9011910491 9017910069 9017910071 9017910071 9017910071 9017914035 9161561020
Part # Description Qty Price
52023A - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER
52023-30030

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
52023B - CUSHION SUB-ASSY, BODY MOUNTING, REAR LOWER
52023-30030

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
52203A - CUSHION SUB-ASSY, BODY MOUNTING, REAR UPPER
52203-30050

GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130

 2
52205A - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-30040

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
52205B - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-30050

GS131,JZS131,LS131,MS135,137,UZS131

 2
52205C - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-30060

GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130

 2
52206 - ABSORBER SUB-ASSY, BODY MOUNTING
52206-30010

GS131,JZS131,LS131,MS135,137,UZS131

 2
52210 - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
52210A - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30010

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
52210B - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30020

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
52210C - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30030

GS131,JZS131,LS131,MS135,137,UZS131

 2
52210D - CUSHION ASSY, BODY MOUNTING, UPPER
52210-30040

GS130,131,JZS13#,LS130,131,MS13#,UZS131,YS130

 2
52217 - BOLT, BODY MOUNTING
52217-30010

GS131,JZS131,LS131,MS13#,UZS131

 2
52231D - CUSHION, BODY MOUNTING, REAR UPPER
52231-30040

GS13#,JZS13#,LS13#,MS13#,UZS131,YS130

 2
Common parts
90109-10067
90109-10068
90109-10118
90119-08438
90119-10018
90119-10491
90179-10069
90179-10071
90179-14035
91615-61020
