LS130W-AWPJJ (1991)

Toyota Crown

Production Oct 1991 - Aug 1993
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )V,WG

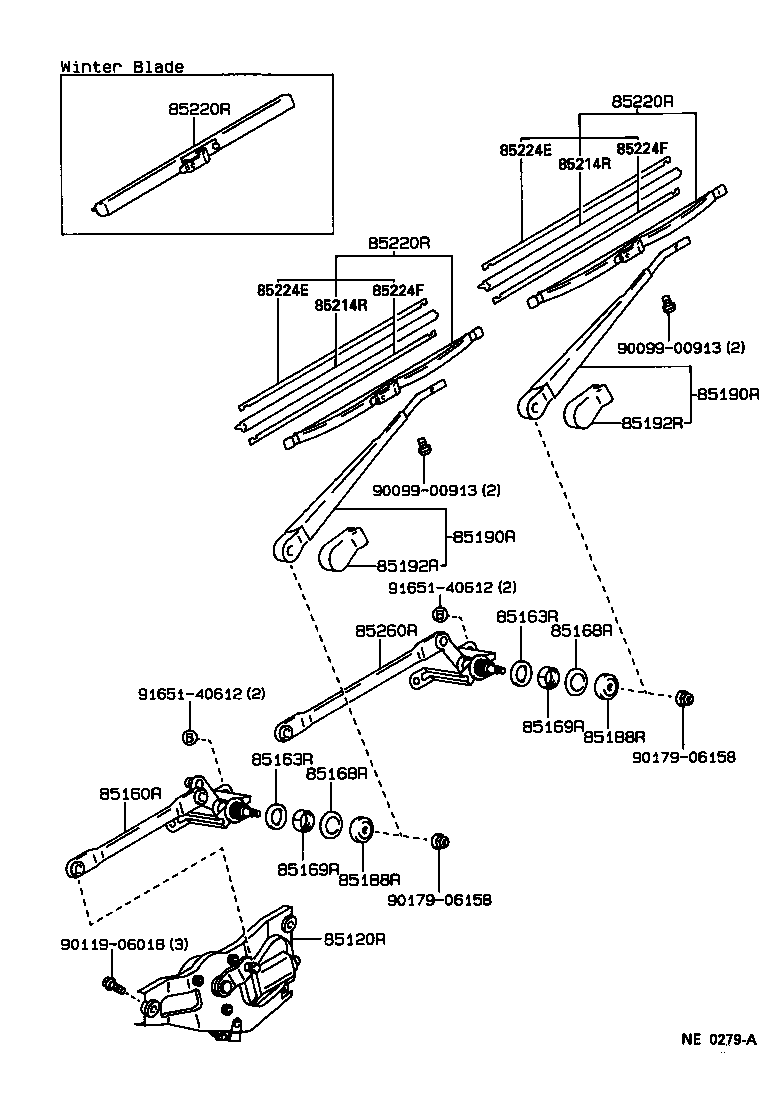

Click highlighted areas on diagram

diagram 85120R 85160R 85163R 85163R 85168R 85168R 85169R 85169R 85188R 85188R 85190R 85190R 85192R 85192R 85214R 85214R 85220R 85220R 85220R 85224E 85224E 85224F 85224F 85260R 9009900913 9009900913 9011906018 9017906158 9017906158 9165140612 9165140612
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85120-91704

GS130,136,JZS130,LS130,136..V,WG

 1
85160R - LINK ASSY, REAR WIPER
85160-91703

GS130,136,JZS130,LS130,136..V,WG

 1
85163R - PACKING, REAR WIPER PIVOT, NO.1
85174-12320

GS130,136,JZS130,LS130,136..V,WG

 2
85163R - PACKING, REAR WIPER PIVOT, NO.1
85174-12320

GS130,136,JZS130,LS130,136..V,WG

 2
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05141

GS130,136,JZS130,LS130,136..V,WG

 2
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05141

GS130,136,JZS130,LS130,136..V,WG

 2
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90099-01458

GS130,136,JZS130,LS130,136..V,WG

 2
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
90099-01458

GS130,136,JZS130,LS130,136..V,WG

 2
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-12320

GS130,136,JZS130,LS130,136..V,WG

 2
85188R - CAP, REAR WIPER PIVOT, NO.1
85178-12320

GS130,136,JZS130,LS130,136..V,WG

 2
85190R - ARM ASSY, REAR WIPER
85241-30040

GS130,136,JZS130,LS130,136..V,WG

 2
85190R - ARM ASSY, REAR WIPER
85241-30040

GS130,136,JZS130,LS130,136..V,WG

 2
85192R - COVER, REAR WIPER ARM
85192-14020

GS130,136,JZS130,LS130,136..V,WG

 2
85192R - COVER, REAR WIPER ARM
85192-14020

GS130,136,JZS130,LS130,136..V,WG

 2
85214R - RUBBER, REAR WIPER
85221-91702

GS130,136,JZS130,LS130,136..V,WG

 2
85214R - RUBBER, REAR WIPER
85221-91702

GS130,136,JZS130,LS130,136..V,WG

 2
85220R - BLADE ASSY, REAR WIPER
85242-30030

GS130,136,JZS130,LS130,136..V,WG

 2
85220-91705

GS130,136,JZS130,LS130,136..V,WG

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 2
85220R - BLADE ASSY, REAR WIPER
85242-30030

GS130,136,JZS130,LS130,136..V,WG

 2
85220-91705

GS130,136,JZS130,LS130,136..V,WG

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 2
85220R - BLADE ASSY, REAR WIPER
85242-30030

GS130,136,JZS130,LS130,136..V,WG

 2
85220-91705

GS130,136,JZS130,LS130,136..V,WG

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 2
85260R - LINK ASSY, REAR WIPER, NO.2
85260-91702

GS130,136,JZS130,LS130,136..V,WG

 1
Common parts
90099-00913
90119-06018
90179-06158
91651-40612
