LS130W-AWPJJ (1991)
Toyota Crown

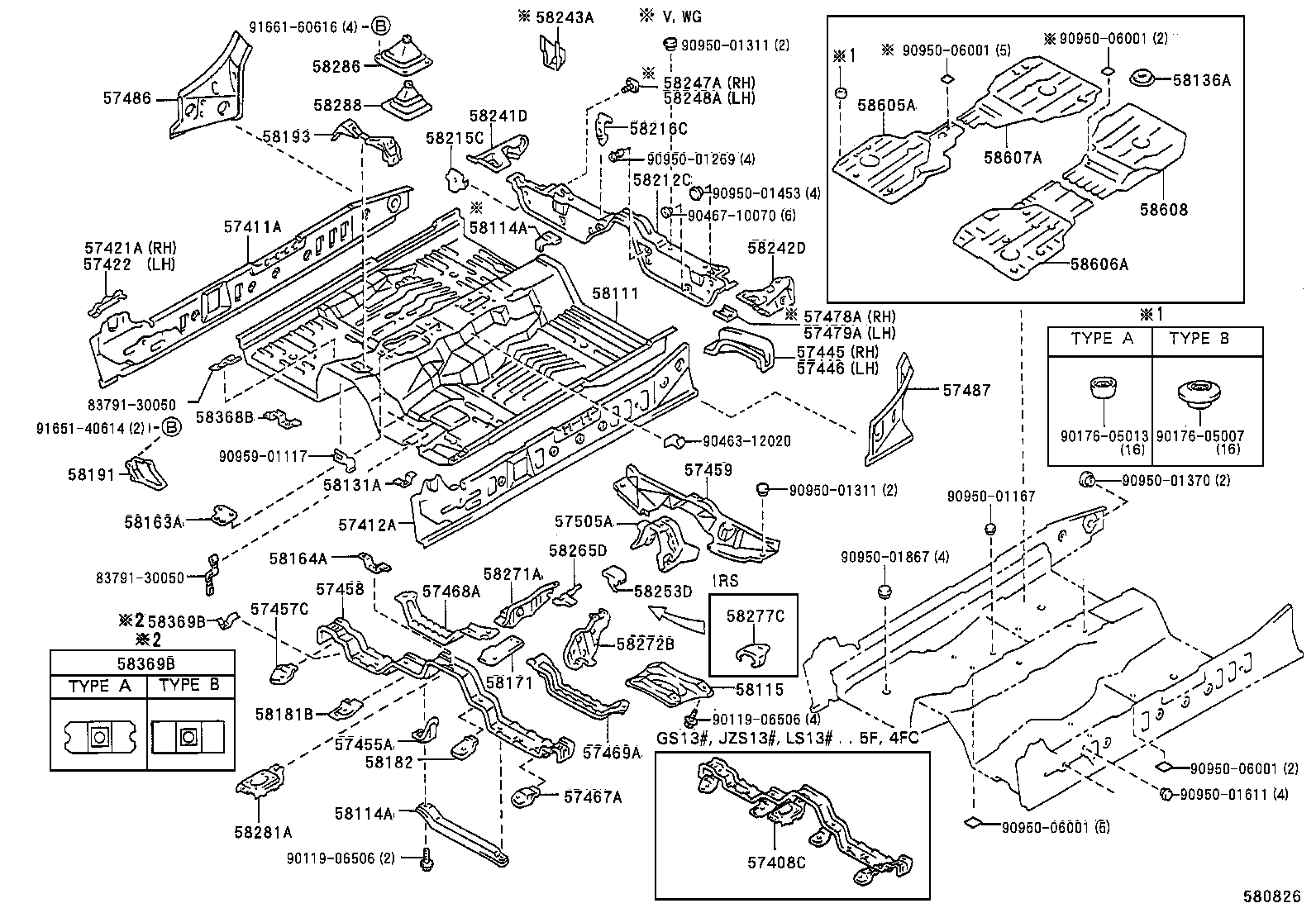

ILLUST NO. 1 OF 2(9110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57458-30900 |
GS13#,JZS13#,LS13#,YS130..4FC,5F |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57411-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-30080 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57412-30080 |
GS13#,JZS13#,LS13# |
1 | ||
| 57421A - PLATE, FLOOR SIDE RAIL, RH | ||||
| 57421-30031 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57421-30031 |
GS13#,JZS13#,LS13# |
1 | ||
| 57422 - PLATE, FLOOR SIDE RAIL, LH | ||||
| 57422-30031 |
GS13#,JZS13#,LS13# |
1 | ||
| 57422-30031 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57445 - REINFORCEMENT, NO.5 BODY MOUNTING, RH | ||||
| 57445-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 57445-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57446 - REINFORCEMENT, NO.5 BODY MOUNTING, LH | ||||
| 57446-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 57446-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57455A - BRACKET, FRONT FLOOR CROSSMEMBER | ||||
| 57455-30010 |
GS13#,JZS13#,LS13# |
1 | ||
| 57455-30010 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57457C - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH | ||||
| 57457-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57457-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57458-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57458-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57459 - MEMBER, FRONT FLOOR CROSS, NO.2 | ||||
| 57459-30060 |
GS130,JZS130,LS130 |
1 | ||
| 57459-30060 |
GS130,JZS130,LS130,YS130 |
1 | ||
| 57467A - BRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH | ||||
| 57467-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57467-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57468-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-30050 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 57469-30050 |
GS13#,JZS13#,LS13# |
1 | ||
| 57505A - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57505-30020 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 57505-30020 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-30261 |
GS13#,JZS13#,LS13#,YS130..4FC,5F |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-91702 |
JZS130,LS130..WG |
4 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-91702 |
JZS130,LS130..WG |
4 | ||
| 58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-14030 |
GS13#,JZS13#,LS13#,YS130 ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
5 | ||
| 58131-14030 |
GS13#,JZS13#,LS13# ﾌﾛﾝﾄ ﾌﾛｱﾊﾟﾝ用 |
5 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-30010 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
4 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 58164-30020 |
GS13#,JZS13#,LS13# |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-30070 |
GS136..4H;GS130,JZS130,LS130..4FC,4H,4HC |
1 | ||
| 58181B - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH | ||||
| 58181-30040 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 58181-30040 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 58182 - BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH | ||||
| 58182-30030 |
GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 58182-30030 |
YS130;GS130..4H..SDX;GS13#,JZS13#,LS13#..4FC,4HC,5F |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-30020 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 58191-30020 |
GS13#,JZS13#,LS13# |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-30020 |
GS13#,JZS13#,LS13# |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-30031 |
JZS131,133,135..ROY,ROYG;GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-30020 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 58215-30020 |
GS13#,JZS13#,LS13# |
2 | ||
| 58216C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH | ||||
| 58216-30010 |
GS13#,JZS13#,LS13# |
2 | ||
| 58216-30010 |
GS13#,JZS13#,LS13#,YS130 |
2 | ||
| 58241D - GUSSET, WHEELHOUSE INNER, FRONT RH | ||||
| 58105-30011 |
GS130,131,JZS13#,LS130,131,YS130 |
1 | ||
| 58105-30011 |
GS130,131,JZS13#,LS130,131 |
1 | ||
| 58242D - GUSSET, WHEELHOUSE INNER, FRONT LH | ||||
| 58106-30021 |
GS130,131,JZS13#,LS130,131,YS130 |
1 | ||
| 58106-30021 |
GS130,131,JZS13#,LS130,131 |
1 | ||
| 58243A - BRACKET, REAR SEAT HINGE FRONT | ||||
| 58243-91702 |
JZS130,LS130..WG |
4 | ||
| 58265D - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 | ||||
| 58265-30030 |
GS130,136,JZS130,LS130,136 |
1 | ||
| 58265-30030 |
GS130,136,JZS130,LS130,136,YS130 |
1 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-30100 |
GS130..4FC,5F;GS130..SED..4H;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58271-30100 |
YS130;GS130..4FC,5F;GS130..SED..4H..HTWC;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58272B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58272-30100 |
GS130..4FC,5F;GS130..SED..4H;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58272-30100 |
YS130;GS130..4FC,5F;GS130..SED..4H..HTWC;GS131,136,JZS13#,LS13#..4FC,4H,5F |
1 | ||
| 58281A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-30051 |
GS13#,JZS13#,LS13#,YS130..4FC,5F |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-30040 |
GS13#,JZS13#,LS13# |
1 | ||
| 58368-30040 |
GS13#,JZS13#,LS13#,YS130 |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58369B - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ A |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ B |
1 | ||
| 58369-32010 |
GS13#,JZS13#,LS13# ﾀｲﾌﾟ B |
1 | ||
| 58369-30040 |
GS13#,JZS13#,LS13#,YS130 ﾀｲﾌﾟ A |
1 | ||
| 58605A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH | ||||
| 58605-30021 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 58606A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH | ||||
| 58606-30020 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 58607A - PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH | ||||
| 58607-30020 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| 58608 - PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH | ||||
| 58608-30030 |
GS131,JZS13#,LS130,131..ROY,ROYG,SALEX |
1 | ||
| Common parts | ||||
| 83791-30050 | ||||
| 90119-06506 | ||||
| 90176-05007 | ||||
| 90176-05013 | ||||
| 90463-12020 | ||||
| 90467-10070 | ||||
| 90950-01167 | ||||
| 90950-01269 | ||||
| 90950-01311 | ||||
| 90950-01370 | ||||
| 90950-01453 | ||||
| 90950-01611 | ||||
| 90950-01867 | ||||
| 90950-06001 | ||||
| 90959-01117 | ||||
| 91651-40614 | ||||
| 91661-60616 | ||||

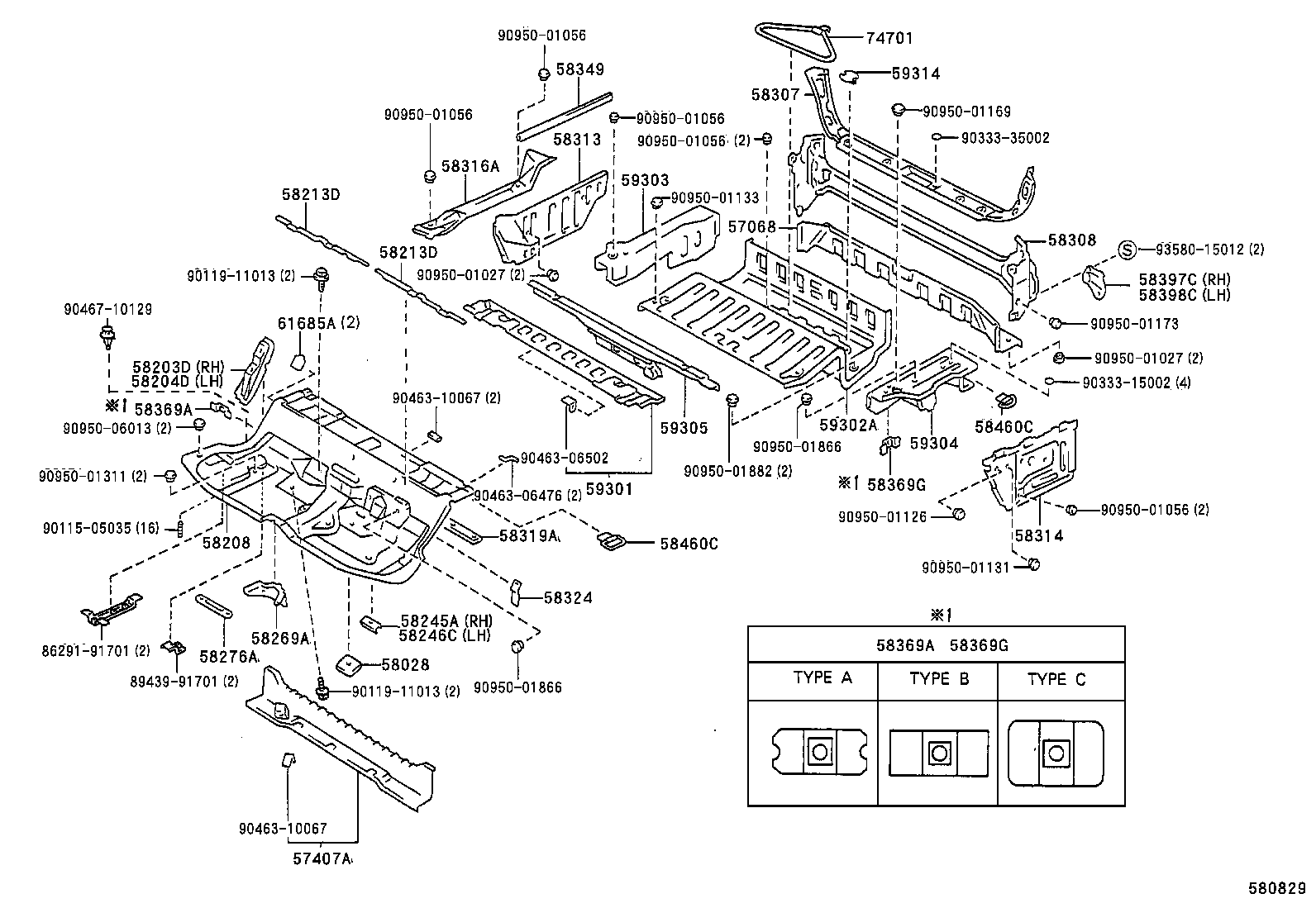

ILLUST NO. 2 OF 2(9110- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-91714 |
GS130,JZS130,LS130..WG |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-91704 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58028 - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, NO.2 | ||||
| 58028-30090 |
GS130,JZS130,LS130 |
2 | ||
| 58028-30090 |
GS130,JZS130,LS130,YS130 |
2 | ||
| 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH | ||||
| 58203-91702 |
JZS130,LS130..WG |
1 | ||
| 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH | ||||
| 58204-91704 |
JZS130,LS130..WG |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-30160 |
GS130,JZS130,LS130..WG |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58214-30020 |
GS130,JZS130,LS130 左側 |
1 | ||
| 58213-30040 |
GS130,JZS130,LS130 右側 |
1 | ||
| 58213-30040 |
GS130,JZS130,LS130,YS130 右側 |
1 | ||
| 58214-30020 |
GS130,JZS130,LS130,YS130 左側 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 58214-30020 |
GS130,JZS130,LS130 左側 |
1 | ||
| 58213-30040 |
GS130,JZS130,LS130 右側 |
1 | ||
| 58213-30040 |
GS130,JZS130,LS130,YS130 右側 |
1 | ||
| 58214-30020 |
GS130,JZS130,LS130,YS130 左側 |
1 | ||
| 58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1 | ||||
| 58245-91701 |
JZS130,LS130..WG |
1 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-31010 |
JZS130,LS130..WG |
1 | ||
| 58269A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 | ||||
| 58269-30110 |
GS130,JZS130,LS130..ATM |
1 | ||
| 58276A - BRACKET, PARKING BRAKE CABLE GUIDE, NO.2 LH | ||||
| 58276-30010 |
GS130,JZS130,LS130 |
1 | ||
| 58276-30010 |
GS130,JZS130,LS130,YS130 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-91708 |
GS130,JZS130,LS130..WG |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-31020 |
GS130,JZS130,LS130..WG |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-31010 |
GS130,JZS130,LS130..WG |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-91706 |
GS130,JZS130,LS130..WG |
1 | ||
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-91702 |
GS130,JZS130,LS130..WG |
1 | ||
| 58319A - PLATE, REAR FLOOR PANEL, FRONT | ||||
| 58319-91603 |
GS130,JZS130,LS130..WG |
1 | ||
| 58324 - BRACKET, FLEXIBLE HOSE | ||||
| 47351-30230 |
GS130,JZS130,LS130 |
1 | ||
| 47351-30230 |
GS130,JZS130,LS130,YS130 |
1 | ||
| 58349 - CUSHION, REAR FLOOR SIDE | ||||
| 58349-91703 |
GS130,JZS130,LS130..WG |
1 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS130,JZS130,LS130 ﾀｲﾌﾟ A |
2 | ||
| 58369-31010 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 58369-30040 |
GS130,JZS130,LS130,YS130 ﾀｲﾌﾟ A |
2 | ||
| 58369A - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-30040 |
GS130,JZS130,LS130 ﾀｲﾌﾟ A |
2 | ||
| 58369-31010 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ B |
2 | ||
| 58369-30040 |
GS130,JZS130,LS130,YS130 ﾀｲﾌﾟ A |
2 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-31010 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ C |
2 | ||
| 58369G - BRACKET, FUEL TUBE, NO.3 | ||||
| 58369-31010 |
GS130,JZS130,LS130..WG ﾀｲﾌﾟ C |
2 | ||
| 58397C - COVER, BODY LOWER BACK, RH | ||||
| 58397-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58398C - COVER, BODY LOWER BACK, LH | ||||
| 58398-31010 |
GS130,136,JZS130,LS130,136..V,WG |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-91255 |
JZS130,LS130..WG |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-91255 |
JZS130,LS130..WG |
1 | ||
| 59301 - PANEL SUB-ASSY, 3RD SEAT FLOOR | ||||
| 59301-31902 |
GS130,JZS130,LS130..WG |
1 | ||
| 59302A - PANEL SUB-ASSY, 3RD SEAT FLOOR, RR | ||||
| 59302-31010 |
GS130,JZS130,LS130..WG |
1 | ||
| 59303 - PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, RH | ||||
| 59303-31900 |
GS130,JZS130,LS130..WG |
1 | ||
| 59304 - PANEL SUB-ASSY, 3RD SEAT FLOOR SIDE, LH | ||||
| 59304-31901 |
GS130,JZS130,LS130..WG..(SALEX,SDX) |
1 | ||
| 59304-31900 |
JZS130,LS130..SALEX ｱﾘ(ﾄﾉ ｶﾊﾞ-) |
1 | ||
| 59305 - MEMBER SUB-ASSY, 3RD SEAT FLOOR CROSS | ||||
| 59305-31010 |
GS130,JZS130,LS130..WG |
1 | ||
| 59314 - COVER, 3RD SEAT FLOOR HOLE | ||||
| 59314-91701 |
GS130,JZS130,LS130..WG |
1 | ||
| 74701 - CLAMP SUB-ASSY, TOOL BAG | ||||
| 74701-95601 |
GS130,JZS130,LS130..WG |
1 | ||
| Common parts | ||||
| 86291-91701 | ||||
| 89439-91701 | ||||
| 90115-05035 | ||||
| 90119-11013 | ||||
| 90333-15002 | ||||
| 90333-35002 | ||||
| 90463-06476 | ||||
| 90463-06502 | ||||
| 90463-10067 | ||||
| 90467-10129 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01131 | ||||
| 90950-01133 | ||||
| 90950-01169 | ||||
| 90950-01173 | ||||
| 90950-01311 | ||||
| 90950-01866 | ||||
| 90950-01882 | ||||
| 90950-06013 | ||||
| 93580-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
