LS130W-AWPJJ (1991)
Toyota Crown
Production
Oct 1991
-
Aug 1993
Engine
2LTHE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

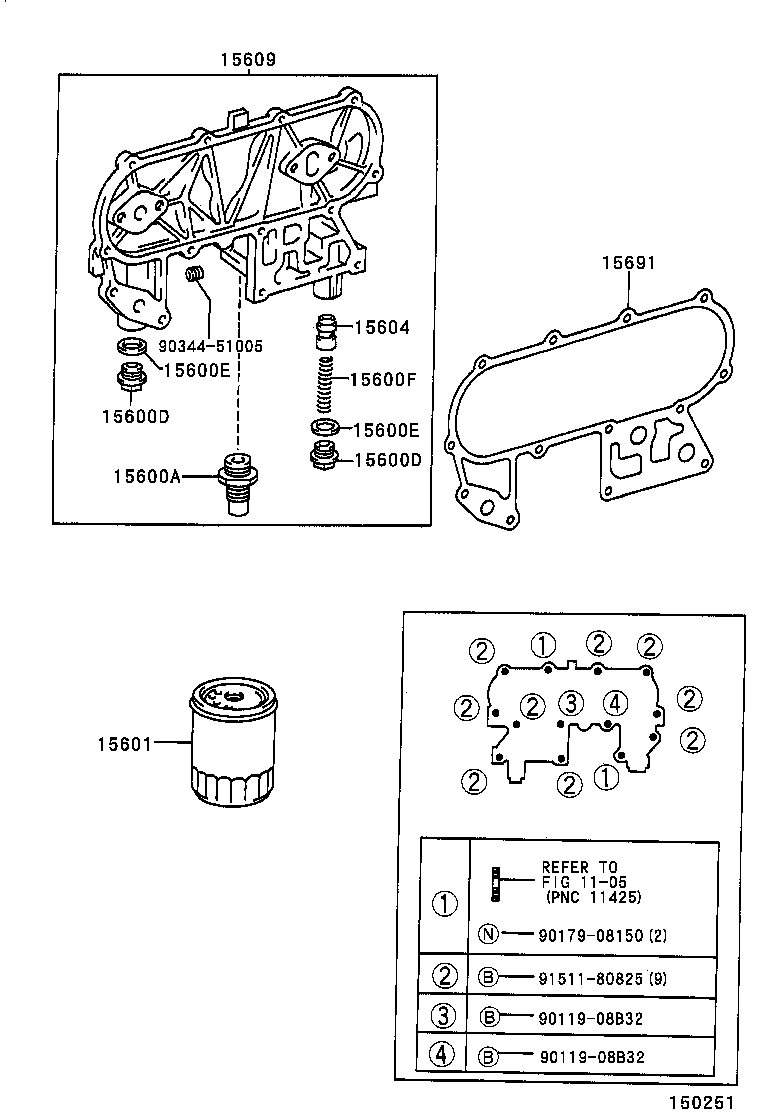

(9110- )2LT#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 15116-54021 |
2LT#..LS130,131 |
1 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
2LT#..LS130,131 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
2LT#..LS130,131 |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18001 |
2LTHE..LS130,131 |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18001 |
2LTHE..LS130,131 |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 90501-16026 |
2LT#..LS130,131 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-03006 |
2LTHE..LS130,131 |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15131-54010 |
2LT#..LS130,131 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-54111 |
2LT#..LS130,131 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15692-54030 |
2LT#,2L..LS13# |
1 | ||
| Common parts | ||||
| 90119-08B32 | ||||
| 90179-08150 | ||||
| 90344-51005 | ||||
| 91511-80825 | ||||
| Linked diagrams | ||||
| 1105 | ||||
(9110-9409)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 15116-54021 |
2LT#..LS130,131 |
1 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
2LT#..LS130,131 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
2LT#..LS130,131 |
2 | ||
| 15600D - PLUG(FOR OIL FILTER) | ||||
| 90341-18015 |
2LT#..LS130,131 |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18001 |
2LTHE..LS130,131 |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18001 |
2LTHE..LS130,131 |
2 | ||
| 15600E - WASHER(FOR OIL FILTER) | ||||
| 90430-18001 |
2LTHE..LS130,131 |
2 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 90501-16026 |
2LT#..LS130,131 |
1 | ||
| 15600F - SPRING, COMPRESSION(FOR OIL FILTER) | ||||
| 90501-16026 |
2LT#..LS130,131 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-03006 |
2LTHE..LS130,131 |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15131-54010 |
2LT#..LS130,131 |
1 | ||
| 15604 - VALVE SUB-ASSY, OIL SAFETY | ||||
| 15131-54010 |
2LT#..LS130,131 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-54111 |
2LT#..LS130,131 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15692-54030 |
2LT#,2L..LS13# |
1 | ||
| Common parts | ||||
| 90179-08150 | ||||
| 91611-60825 | ||||
| 91611-60835 | ||||
| Linked diagrams | ||||
| 1105 | ||||
