LS130G-AWPJJ (1987)

Toyota Crown

Production Sep 1987 - Oct 1991
Engine 2LTHE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )LS13#

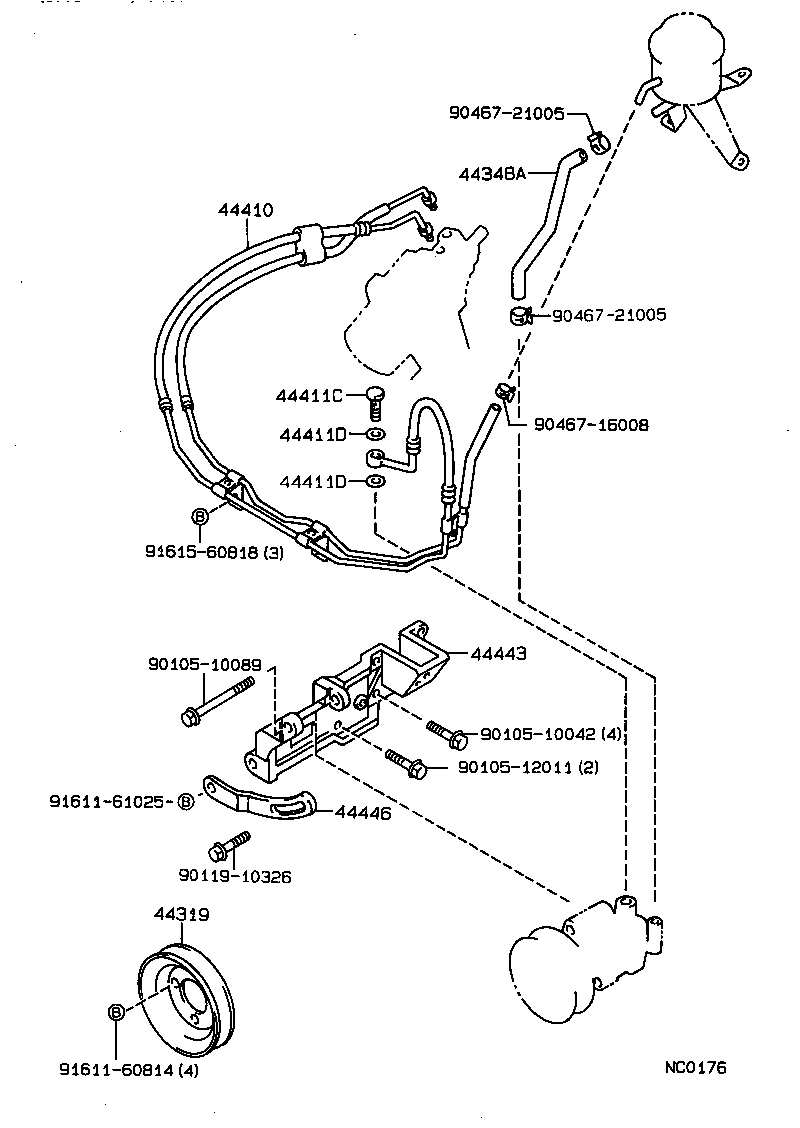

Click highlighted areas on diagram

diagram 44319 44348A 44410 44411C 44411D 44411D 44443 44446 9010510042 9010510089 9010512011 9011910326 9046716008 9046721005 9046721005 9161160814 9161161025 9161560818
Part # Description Qty Price
44319 - PULLEY, VANE PUMP DRIVE
44319-30030

LS13#

 1
44319-22010

LS13#

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-30080

LS13#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-30080

LS13#

 1
44410-30081

LS13#

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

LS13#

 1
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LS13#

 2
44411D - GASKET(FOR PRESSURE FEED HOSE)
90430-16242

LS13#

 2
44443 - BRACKET, PUMP
44443-30080

LS13#

 1
44446 - STRUT, ADJUSTING
44446-30070

LS13#

 1
Common parts
90105-10042
90105-10089
90105-12011
90119-10326
90467-16008
90467-21005
91611-60814
91611-61025
91615-60818
