LS130G-AWPJJ (1987)
Toyota Crown
(8709- )GS130,131,LS13#,MS130,YS130..ATM..DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG

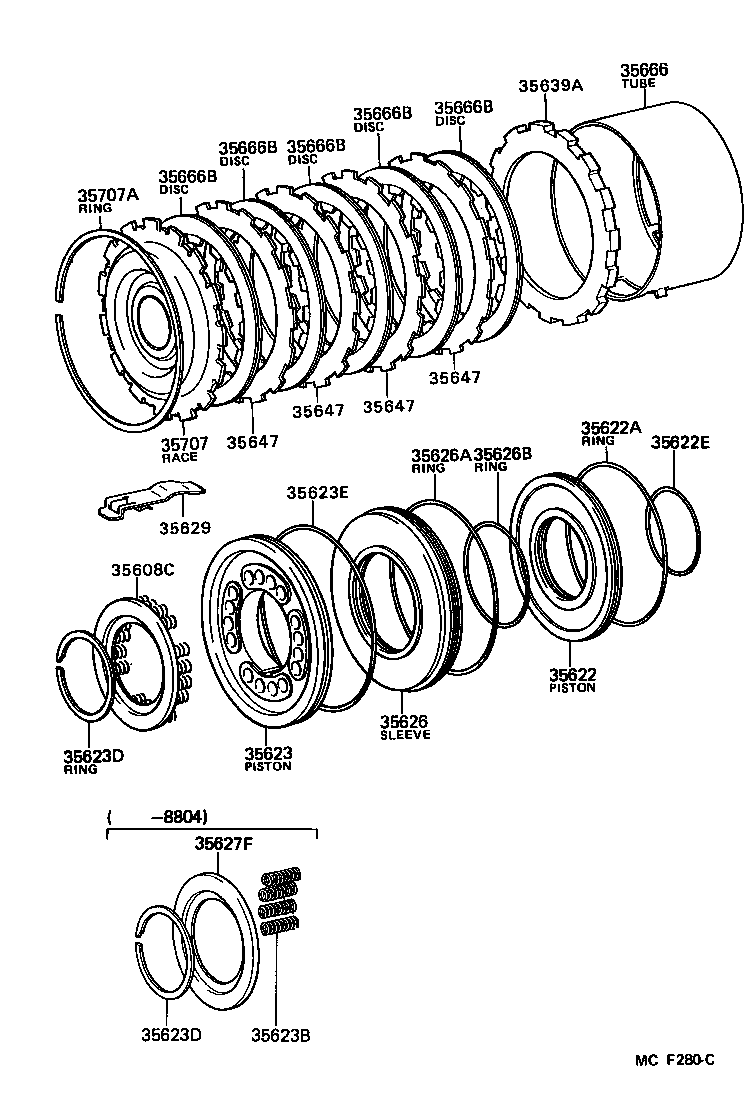

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN | ||||
| 35608-20020 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99193 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-57188 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35623B - SPRING (FOR BRAKE PISTON RETURN) | ||||
| 90501-10671 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,LPG,TDE,TWC) |
16 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35623E - RING, O, NO.1 (FOR BRAKE PISTON) | ||||
| 90301-99192 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99200 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-68191 |
GS130,131,JZS13#,LS13#,MS13#,UZS131,YS130..ATM |
1 | ||
| 35627F - SEAT, BRAKE RETURN SPRING | ||||
| 35627-22010 |
GS130,131,LS13#,MS130..ATM..(DSL,EFI,LPG,TDE,TWC) |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPG,TDE,TWC) |
1 | ||
| 35629-22010 |
GS130,131,LS130,131,YS130..ATM..(HTWC,LPEFI,TDE,TWLPG) |
1 | ||
| 35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
4 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-30010 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
1 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35633-30050 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35633-30050 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35633-30050 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35633-30050 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-30060 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35633-30050 |
GS130,131,LS130,131..ATM..(HTWC,TDE) |
5 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30030 |
LS130,YS130..ATM |
1 | ||
| 35707-30030 |
GS130,131,LS130,131,YS130..ATM..(HTWC,LPEFI,TDE,TWLPG) |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
GS130,131,LS13#,MS130,YS130..ATM..(DSL,EFI,HTWC,LPEFI,LPG,TDE,TWC,TWLPG) |
1 | ||
